16E / 16E-H / 16E-P Spray Gun
63
MAN 96150 EN 01

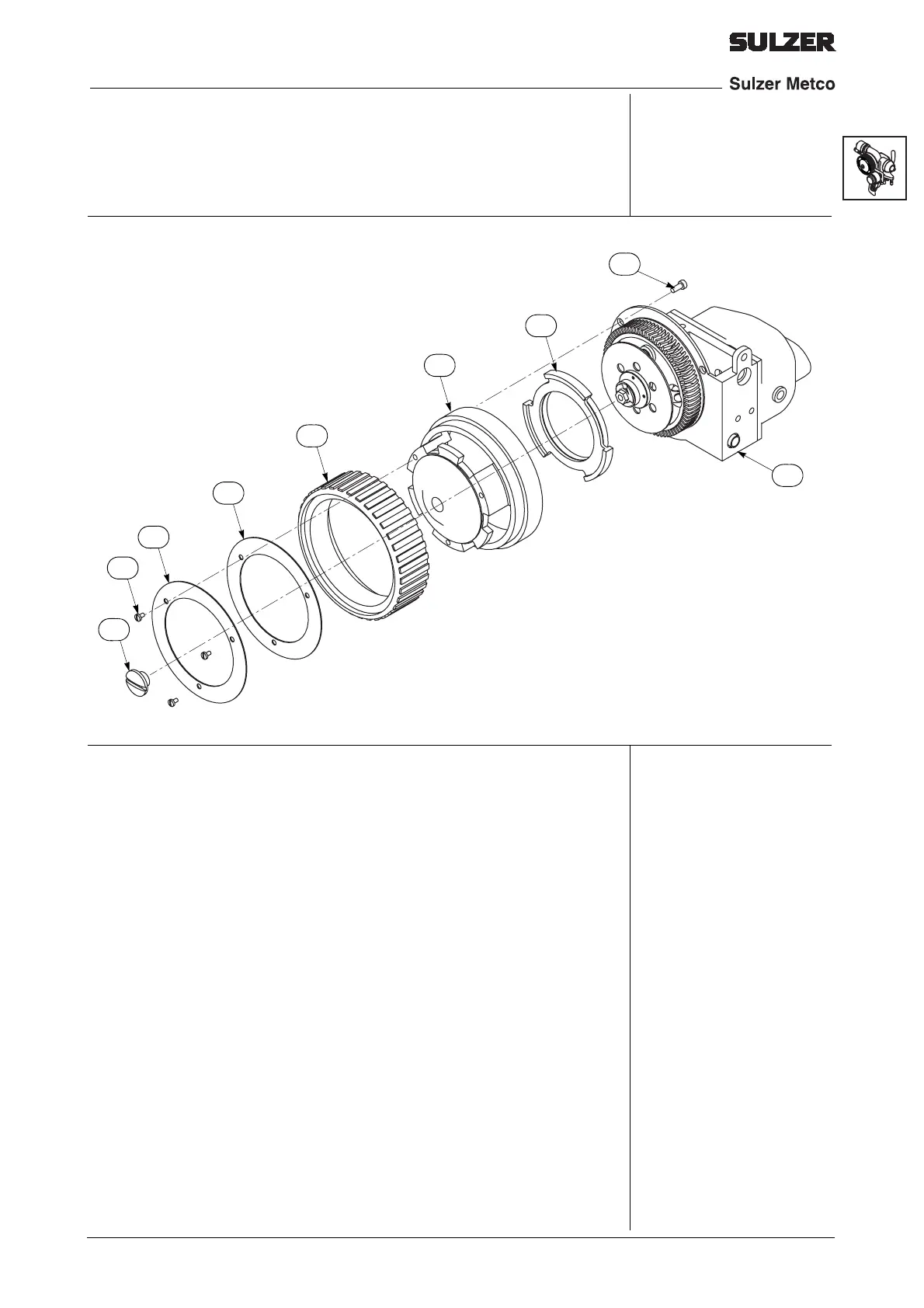

Speed Control
1. Apply a light coating of Krytox® to inner threads of control ring
(142) and outer threads of spider assembly (144).
2. Assemble control ring (142), turbine cover (143) and spider
assembly (144) with plastic brake shoe of spider assembly facing
open side of turbine cover. Rotate control ring clockwise to thread
onto spider assembly. Be careful not to cross threads.
3. Apply a light coating of Krytox® to detent spring (141). Install
detent spring and nameplate (139) with detents engaging notches
in control ring. Align holes and secure detent spring and name-
plate with three screws (138). Test control ring operation after
tightening screws.
4. Install speed control assembly (137-144) onto central housing
(129) and secure with three screws (156).
5. Install handle and wire feed valve or wire feed valve shaft. (See
“Handle and Wire Feed Valve” on page 64.)
16e_speedcont_assy
137
138
139
141
142
143
144
156
129
To Next Page
