Sulzer 16E - Drive Rolls and Gears

16E / 16E-H / 16E-P Spray Gun
47
MAN 96150 EN 01
6.8.2 Drive Rolls and Gears
Upper Drive Roll/Gear Removal/Disassembly
1. Press and turn pivot pin (105) clockwise and remove pivot pin.
2. Remove drive roll carrier (104) from spray gun.
3. Remove screw (107) and slide drive roll axle (105) out from drive
roll carrier (104). Upper drive roll (108) and upper drive gear (110)
will come out of drive roll carrier.
4. Remove three screws (111) securing upper drive roll (108) to
upper drive gear (110).
Upper Drive Roll/Gear Assembly/Installation
1. Assemble upper drive roll (108) to upper drive gear (110) and
secure with three screws (111).
2. Install upper drive roll (108) and upper drive gear (110) in drive roll
carrier (104) and slide drive roll axle (105) through drive roll carrier
and center of gear and roller.

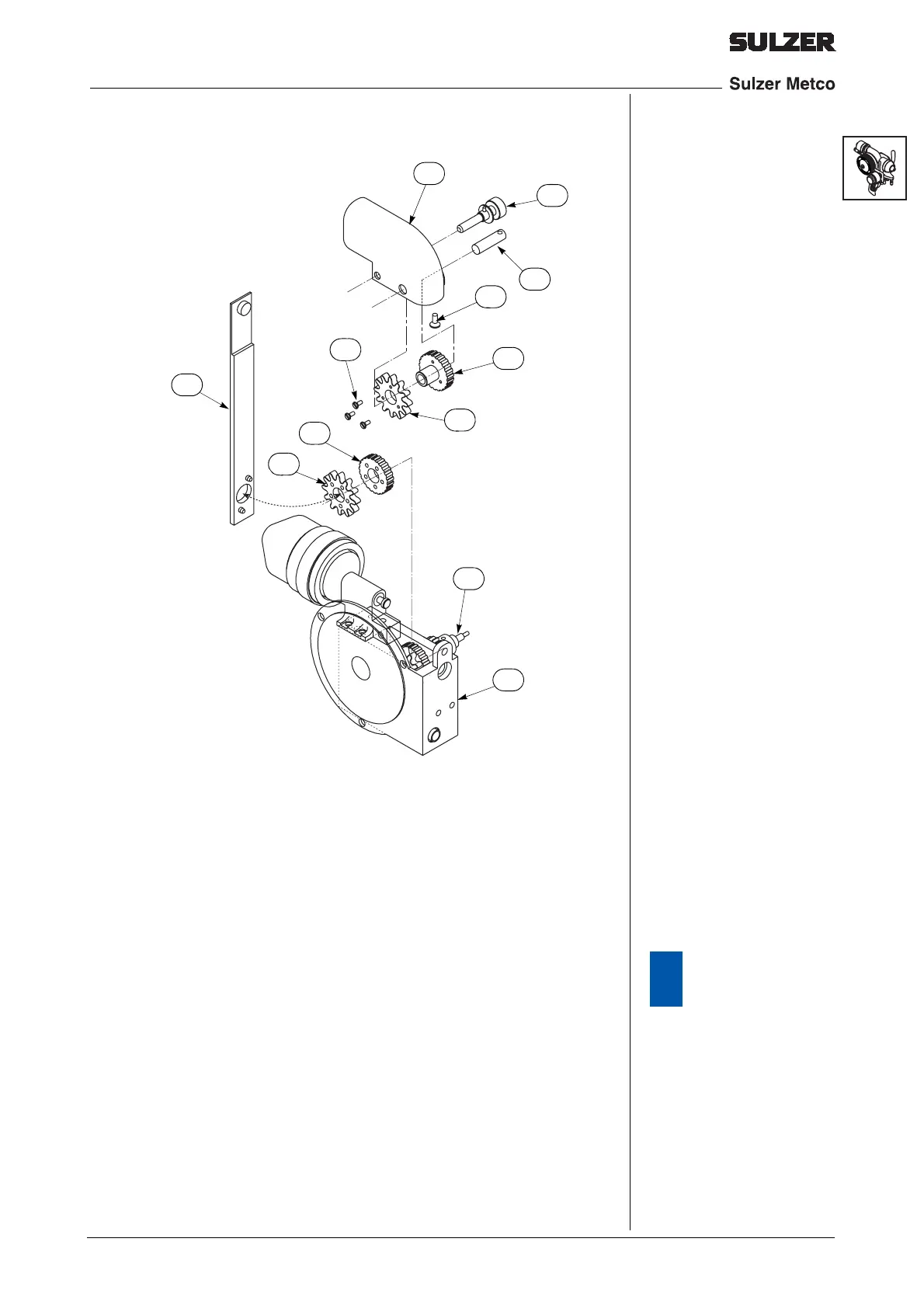

16e_rolls_gears
104
105
106
107
108
110
111
123
124
184
173
129
Spanner
Drive Roll
INFO
Use upper drive roll gear
11E33 (1000171) for all
hardware configurations.
i
