6.9.2 Gas Head Assembly
The gas head assembly may be completely disassembled and ser-
viced without removing it from the spray gun. To remove the gas head
assembly, remove one screw (86) and two screws (91) securing the
gas head assembly to the central housing (129).
Do not remove the valve core without first removing the hose block
and valve plungers. One hose block mounting screw (103) extends
into a channel in the valve core (82) to prevent the valve core form
being removed. If you remove the valve core with the valve plungers
installed, the valve core, valve plungers (95,98) and o-rings (96,97)
may be damaged.
1. Remove two screws (102 and 103) securing hose block (101) to
gas head (85) and remove hose block from gas head.
2. Remove compression springs, plungers and associated o-rings
(83, 94-100) from gas head (85).
CAUTION
DO NOT remove the
valve core without first
removing the hose
block and valve plung-
ers. If the valve core is
removed with the valve
plungers installed, the
gas valve will be dam-
aged.

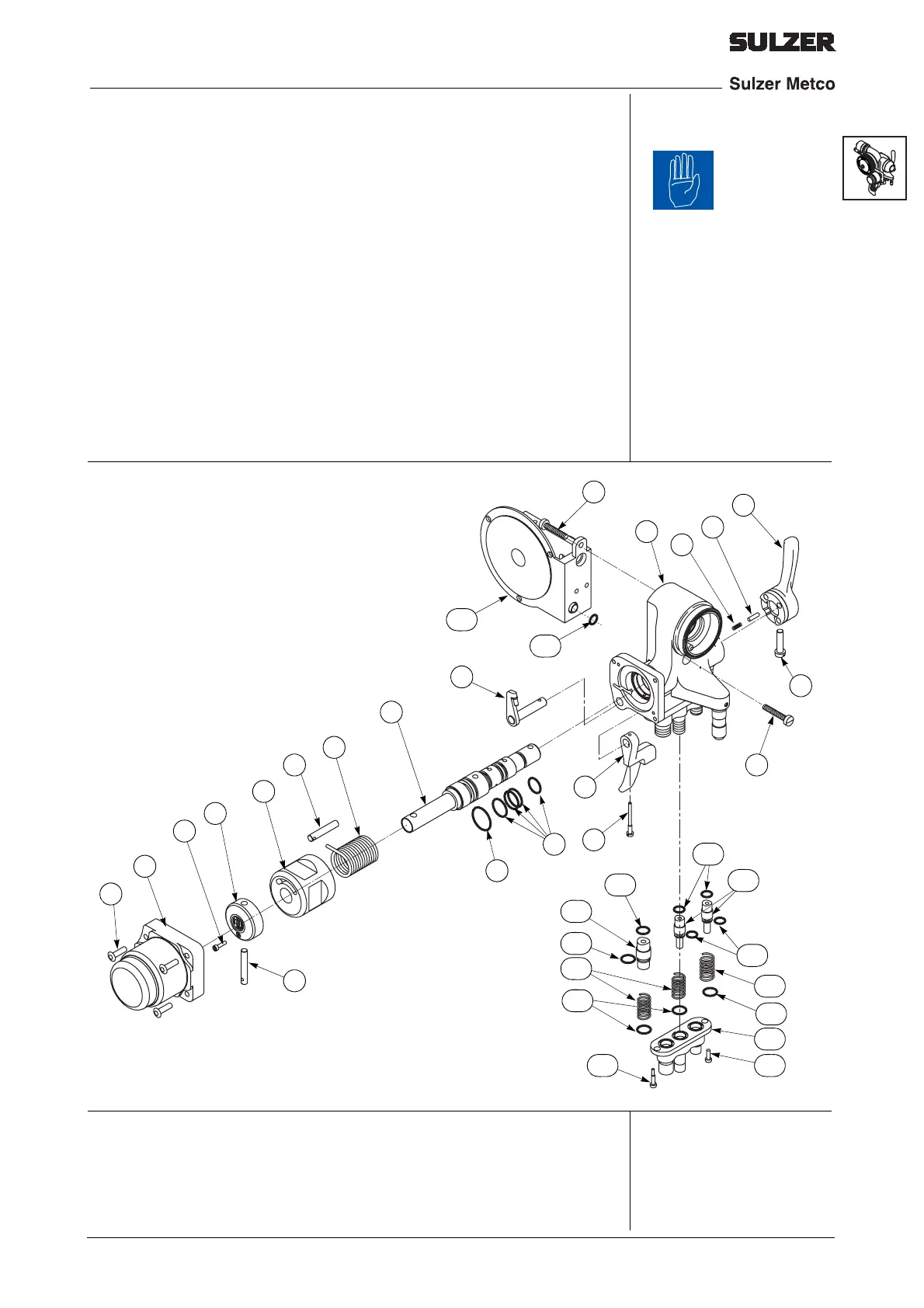

16e_gas_head
