8�2�2 Horizontal lifting

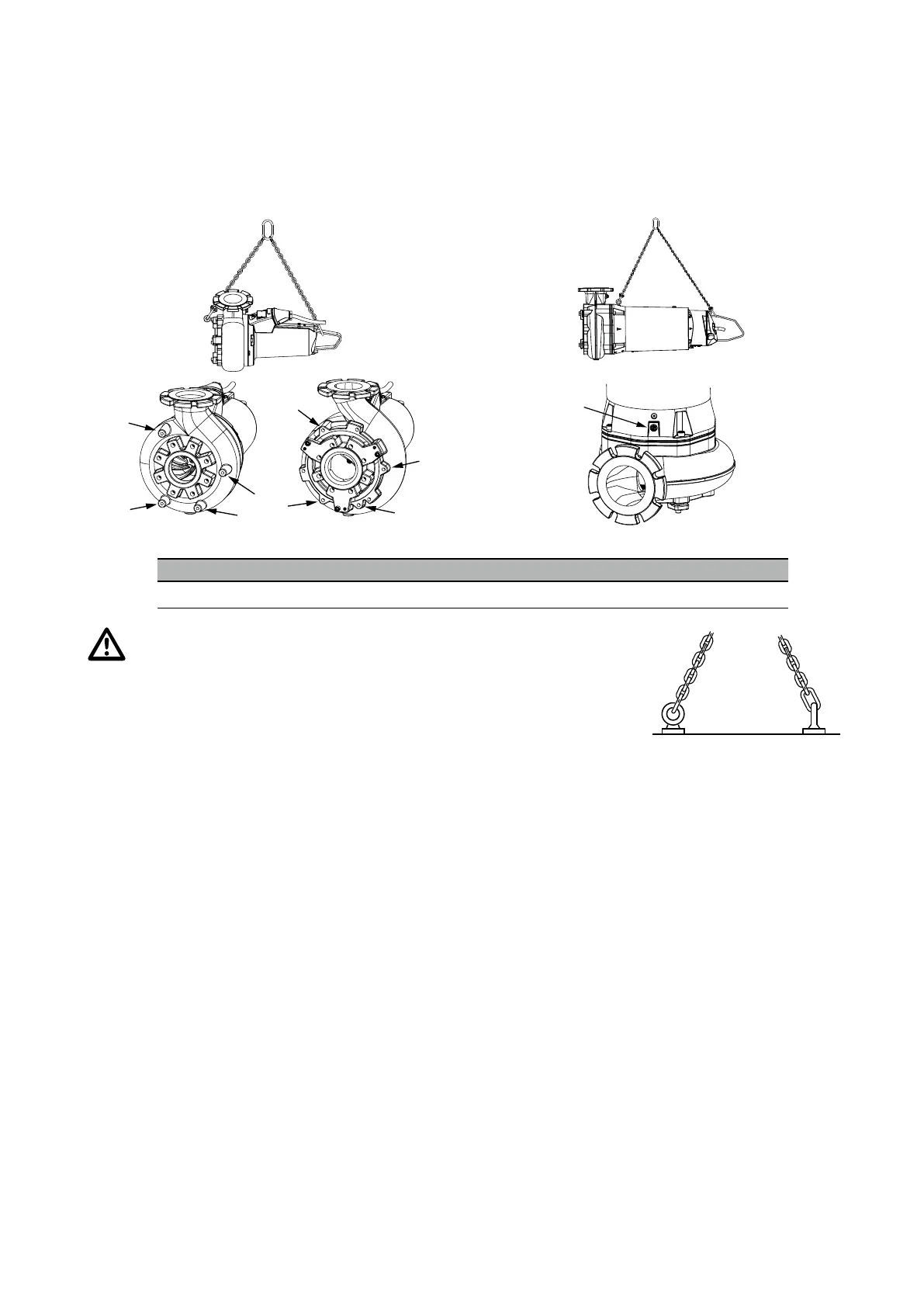

to attaching to the lifting hoop. Screw holes are provided in the volute or bearing housing, depending on the
pump model (see location points and sizes below).
XFP 80C - 151E (PE1 & 2) XFP 100G - 305J (PE3)
XFP 80C - 100C, 80E, 81E, 100E(VX) 100E(CB) - 151E 100G - 305J
Eyebolt size M10 M12 M16
For angular lifting, shoulder-type machinery eyebolts (EN ISO 3266)
rated to take loads
load must always be applied in the plane of the eye and not at an
angle to it (use a single shim if necessary for correct alignment).
Swivel eyebolts (EN 1677-1) can also be used.
8�3 Storage
1. During long periods of storage the pump should be protected from moisture and extremes of cold or heat.
2. To prevent the mechanical seals from sticking it is recommended that occasionally the impeller is rotated by
hand.
3. If the pump is being taken out of service the oil should be changed before storage.
4. After storage the pump should be inspected for damage, the oil level should be checked, and the impeller
checked to ensure it rotates freely.
8�3�1 Moisture protection of motor connection cable
The motor connection cables are protected against the ingress of moisture along the cable by having the ends
sealed at the factory with protective covers.
ATTENTION! The ends of the cables should never be immersed in water as the protective covers
only provide protection against water spray or similar (IP44) and are not a water tight
seal. The covers should only be removed immediately prior to connecting the pumps
electrically.
During storage or installation, prior to the laying and connection of the power cable, particular attention should
ATTENTION! If there is a possibility of water ingress then the cable should be secured so that the
end is above the maximum possible ood level. Take care not to damage the cable or
its insulation when doing this.
