5 Technical data
level of 70 dB(A) or the measured noise level may be exceeded.
Detailed technical information is available in the technical data sheets “Submersible Sewage Pump Type ABS
www.sulzer.com > Products > Pumps > Submersible Pumps.
5�1 Nameplates
containing technical data and a secondary nameplate to certify that the pump is Ex rated (examples below).
If an XFP pump is serviced or repaired in a workshop that is not Ex approved then it must no longer be used in
hazardous locations and the Ex nameplate must be removed.
We recommend that you record the data from the standard nameplate on the pump in the corresponding form
below, and maintain it as a source of reference for the ordering of spare parts, repeat orders and general
queries.
Always state the pump type, item number and serial number in all communications.
xx/xxx
1/min
Max.Liq.Temp: 40°C
Weight kg
IEC60034.30 IE3
Qmax m3/h Hmax m
Hmin m
Max m
Imp mm
P2: kW
P1: kW
UN V IN A

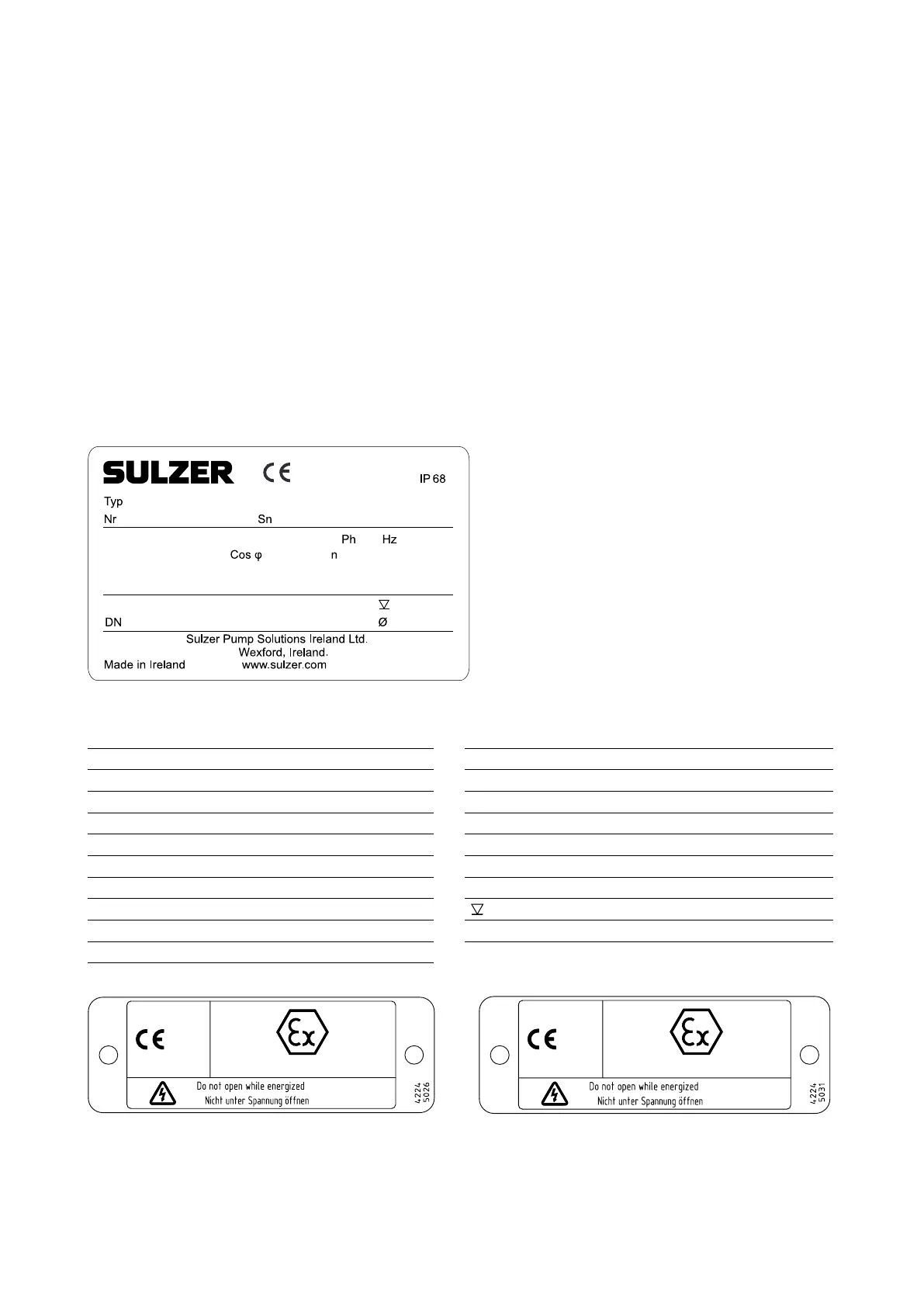

Standard nameplate PE1 - PE3
Legend
Typ Pump type Power factor pf
Nr Item No. n Speed r/min
Sn Serial No. Weight kg
xx/xxxx Production date (Week/Year) m
3
/h
U Rated voltage V DN Discharge diameter mm
I Rated current A Hmax Maximum head m
Ph Number of phases Hz Hmin Minimum head m
Hz Frequency Hz
Max
Maximum submergence depth m
P1 Rated input power kW Ø Imp. Impeller diameter mm
P2 Rated output power kW
II 2G Ex h db IIB T4 Gb PTB 10 ATEX 1062 X
0598
II 2G Ex h db IIB T4 Gb PTB 10 AT EX 1032 X
0598
Ex
Ex nameplate PE1 and PE2 Ex nameplate PE3
