8
EN 5675-L
6 General design features
modular construction.

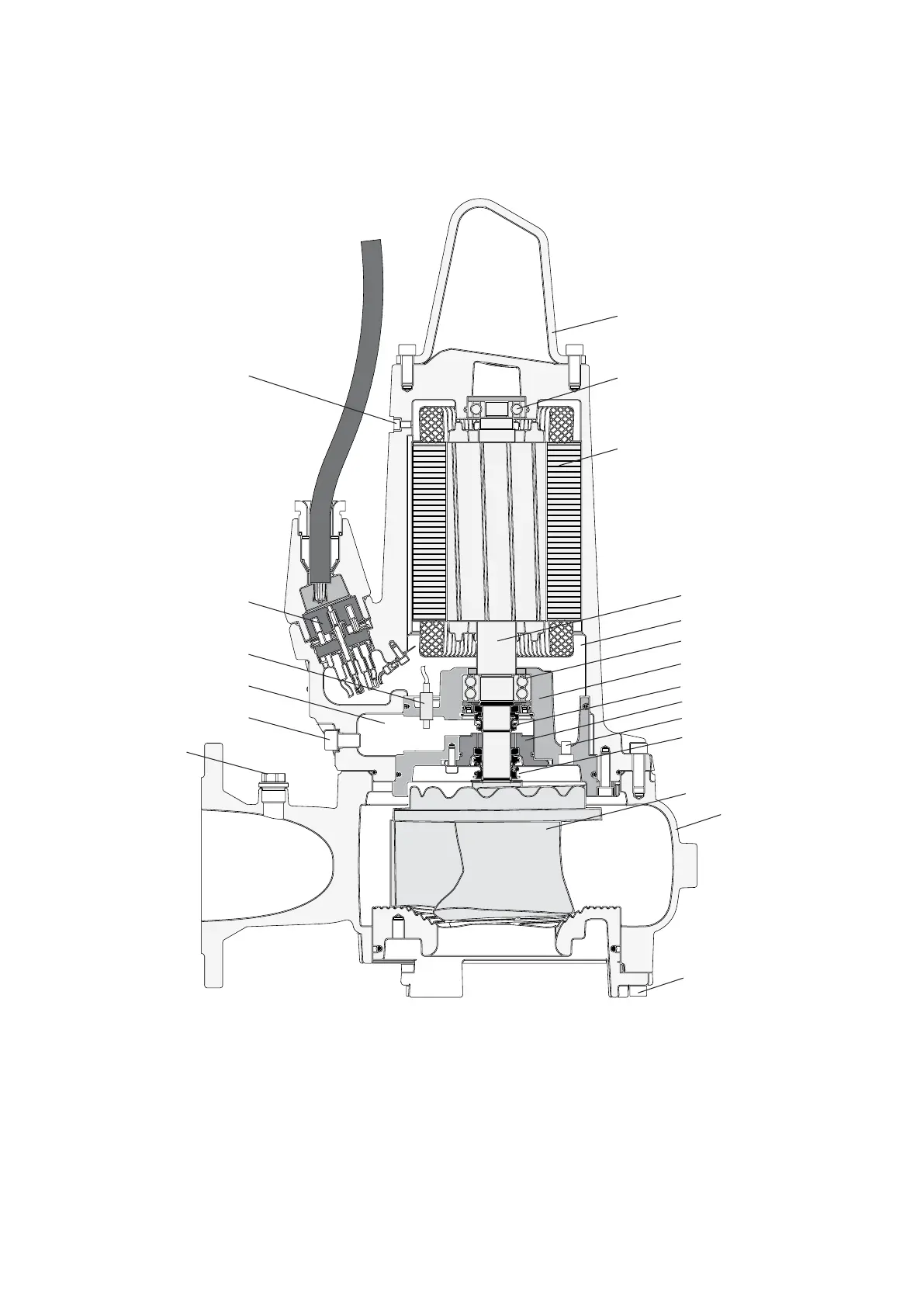

6�1 Design features PE1 & PE2
1 Pressure release screw 7 Stainless steel lifting hoop 14 Mechanical seals
2 10-pole terminal block 8 Upper bearing - single row 15 Seal holding plate
3 Leakage sensor (DI) 9 Motor with thermal sensors 16 Motor chamber drain plug/
4 Seal chamber 10 Stainless steel shaft pressure test point
5 Seal chamber drain plug/ 11 Motor chamber 17 Impeller - Contrablock version
pressure test point 12 Lower bearing - double row 18 Volute
6 Venting plug 13 Bearing housing 19 Bottom plate adjustment screw
1
2
3
4
5
7
8
9
10
12
13
14
15
14
16
17
11
19
18
6
