16
EN 5675-L

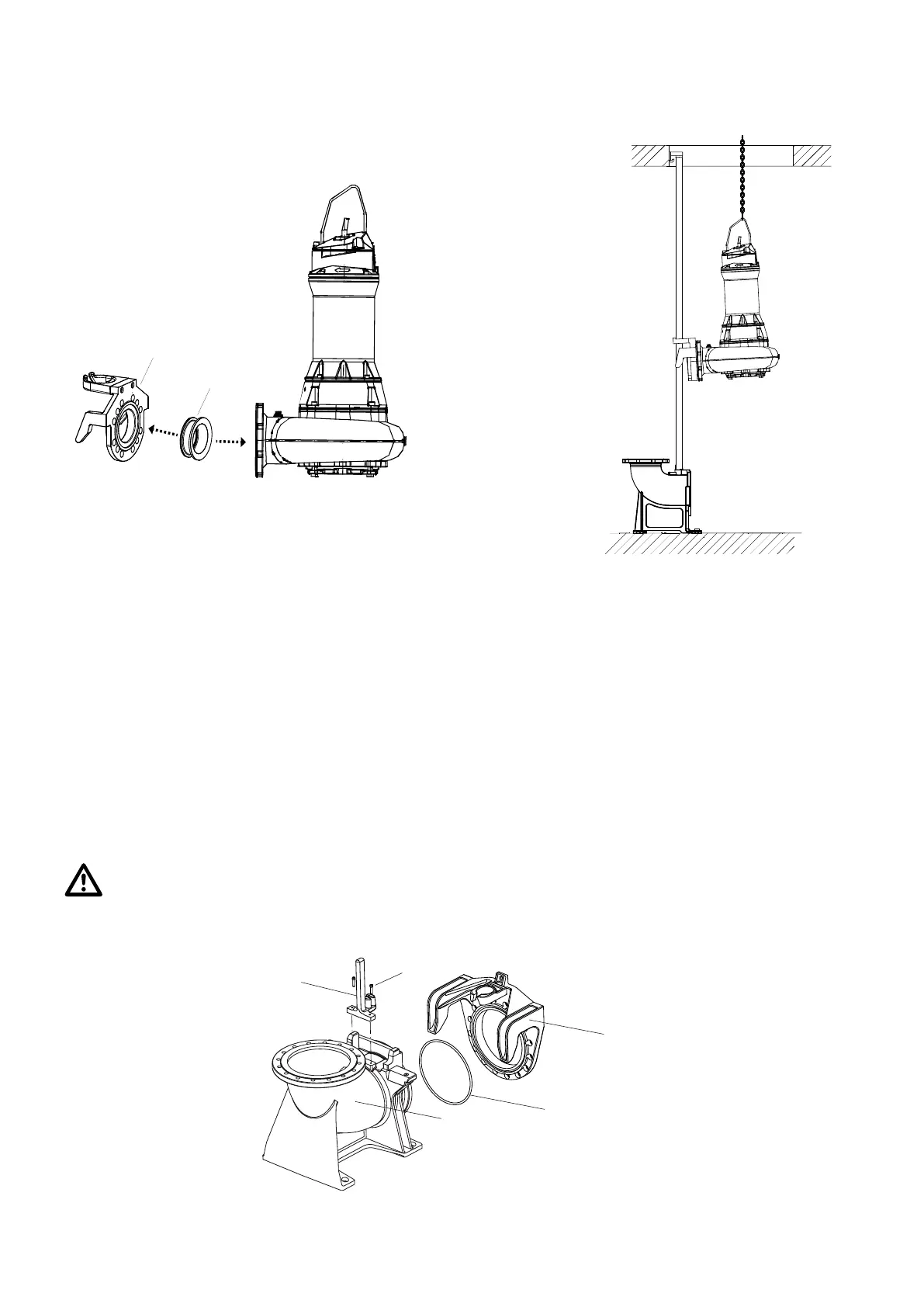

Lowering the pump on the guide rail:
a
b
•
• Fit a chain and shackle to the lifting hoop and using a hoist lift the pump into position where the pedestal
bracket can slide into place on the guide rail.
• Lower the pump slowly down along the guide rail. Due to the design of the lifting hoop the pump will
automatically lower at the necessary angle.
• The pump couples automatically on the pedestal, and seals to a leak-tight connection by the compression
Fitting of pedestal bracket o-ring and guide piece:
The o-ring and the groove in the bracket must be clean and free of grease. The instant adhesive LOCTITE type
454 is spread evenly on the base of the groove in the bracket (1) and the o-ring (4) inserted immediately.
NOTE The hardening time of the adhesive is only about 10 seconds!
Ensure that adhesive does not come into contact with skin or eyes! Wear safety glasses and gloves!
The guide piece (3) must be screwed on as shown in the drawing. Fasten the guide piece with the two M12
screws (2) to the pedestal (5). Tighten the screws with a torque of 56 Nm.
1
4
5
2
3
