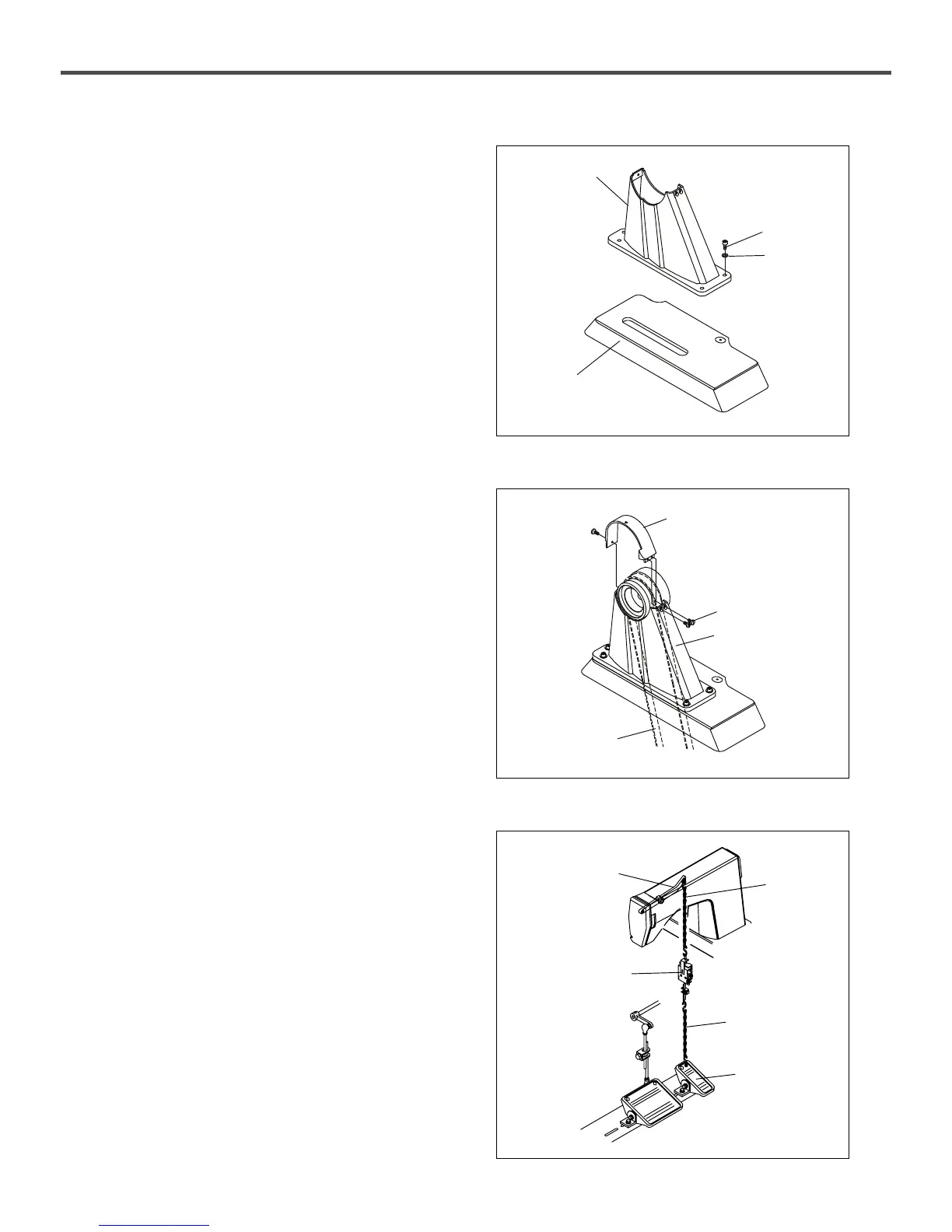

B. With the belt pulled upward, ④ the belt cover (Dn)

③ to the base⑥ using the screws④ and the washers

⑤ (5EA).

C. Insert the belt① into the belt cover (Dn)③ and fix

the belt cover⑦ using the screws⑧ (3EA).

5) Connection to clutch-type pedal

Connect the lap lift lever① and the pneumatic pressure

switch② to Chain ③.

And then connect the pneumatic switch② to Chain ⑤

on the foot pedal④.

④

⑤

③

⑥

⑦

①

⑧

③

①

②

③

⑤

④

SunStar SC 8200J Series User Manual
