B. Open the pulley cover of 8200 and fix the pulley of
the puller to the shaft.
C. The position of the timing is the place to adjust the
pulling of the roller.
After operate no. 6 of the manuals, adjust the wheel
movement identically.
6m/m TAP
TIMING
M6×60m/m
M8×25m/m
64/9 inch TAP

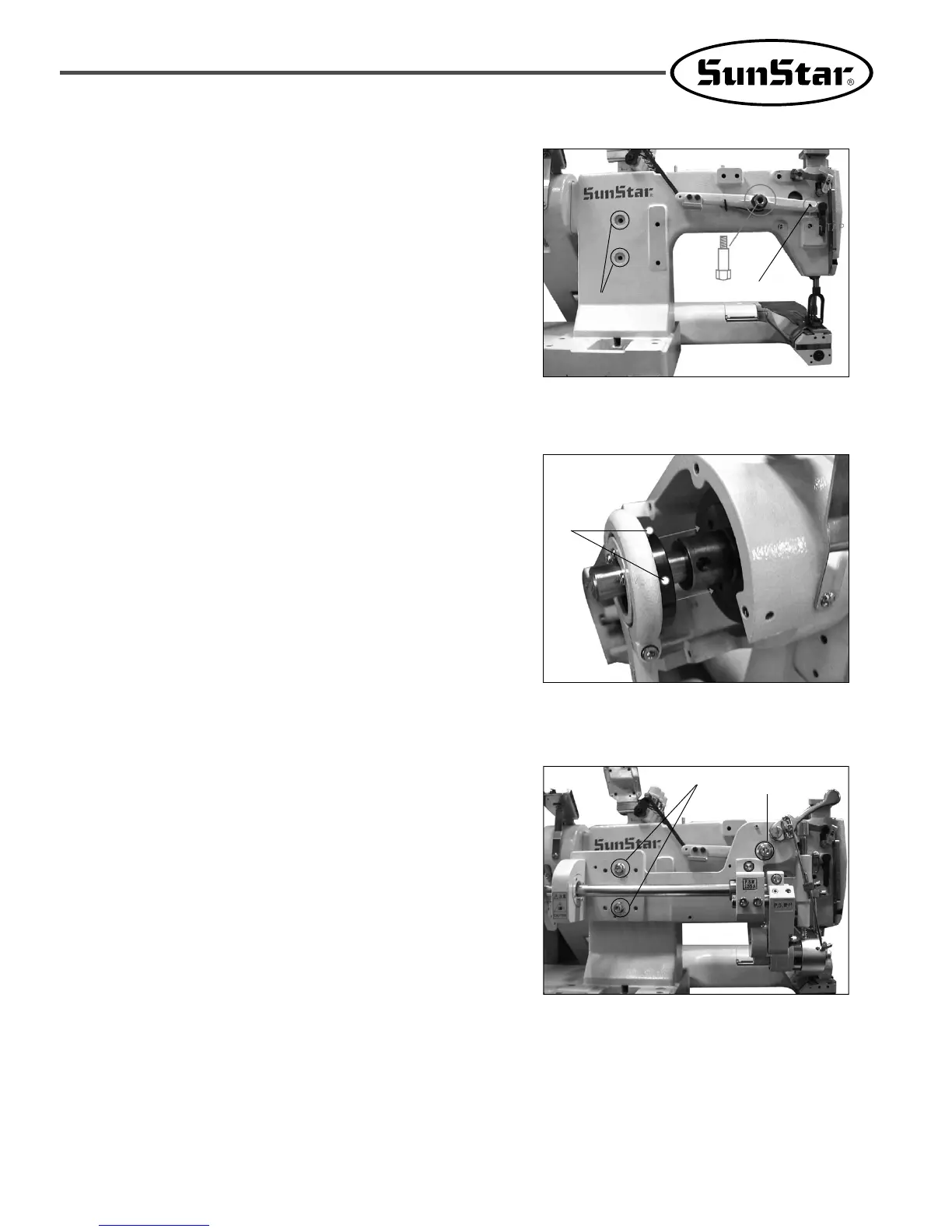

7) SRP Puller Attachment
A. Replace the presser foot bolt with the puller bolt.
D. Attach the puller to the body of 8200.
(Use the M8X25m/m, M6X60m/m bolt.)
