C. Fix the Puller with the fixation bolt (M10 * 20m/m-3EA)
during attachment.
D. Locate the red-marked thread take-up lever position on the
top.
8) MODEL : BP(Belt Puller Type)
Sewing of several clothes as one (FEED-OFF-
ARM)
Attaching & Setting Puller to Sewing Machine

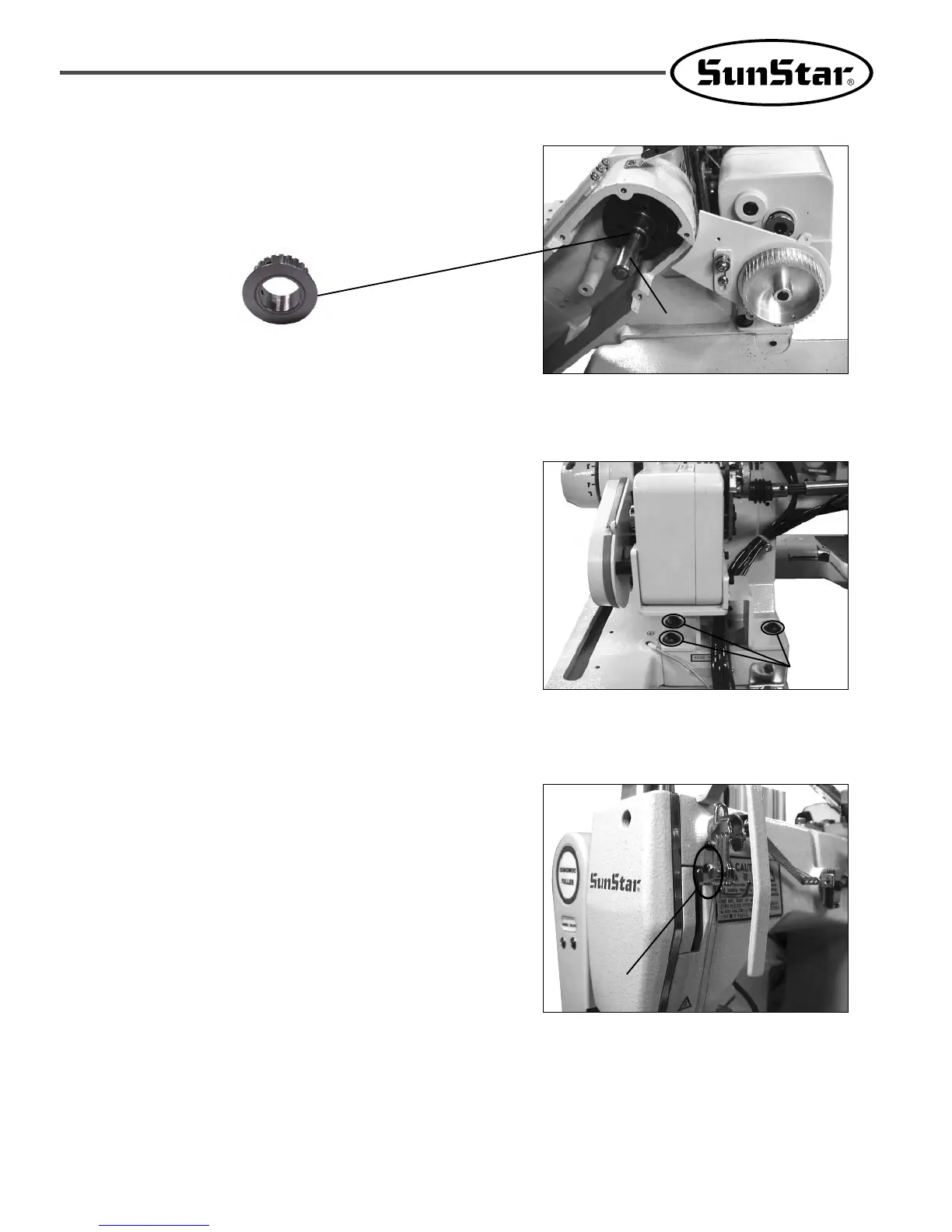

A. Insert Timing Belt Pulley A into the upper shaft of M/C.
B. Attach the Belt Puller to the M/C.
Timing Belt Pulley A
upper shaft
fixation bolt
thread take-up lever
To Next Page
