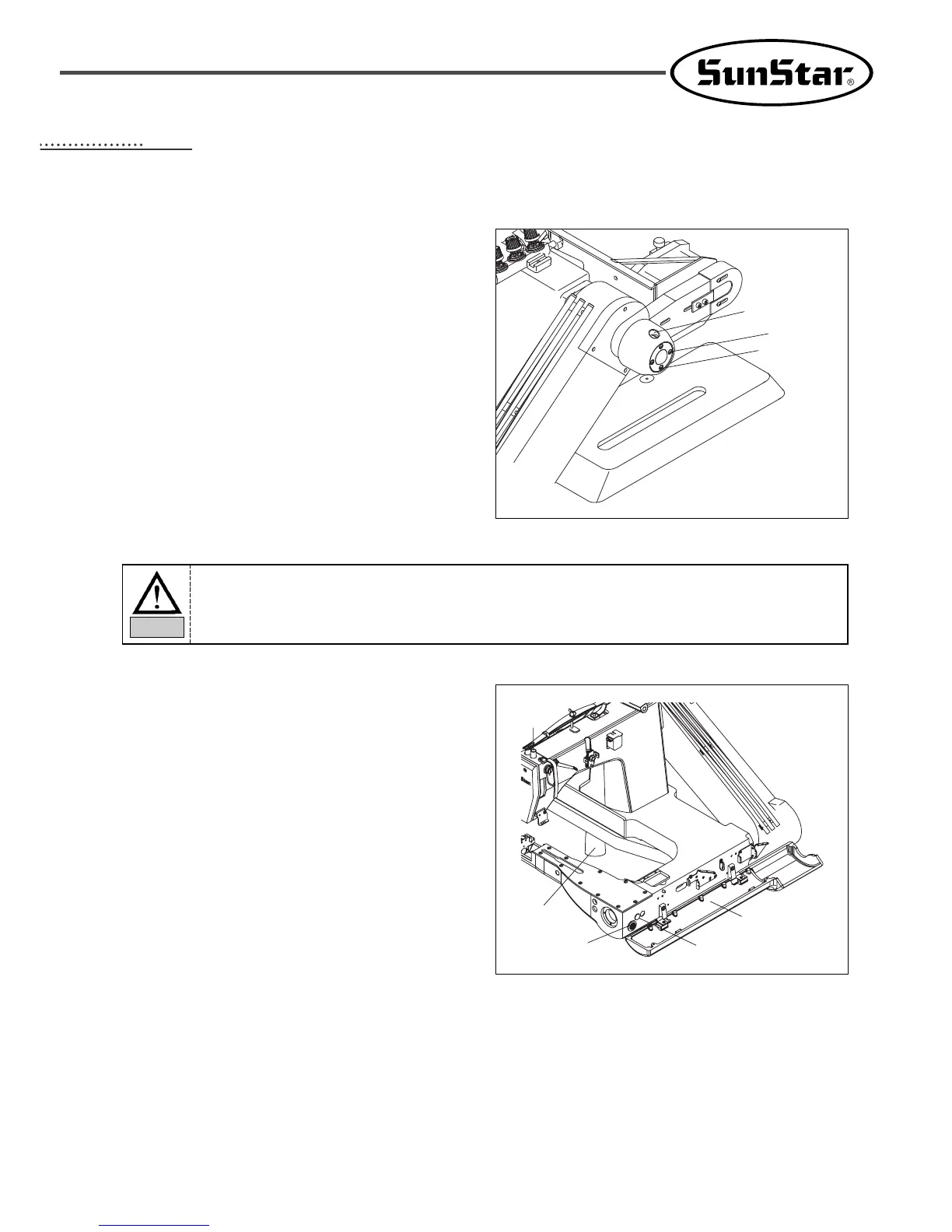

Machine Preparation
1) Oil Supply
A. Make the oil supply slot screw ① pointed upward
and turn the hand pulley. Then remove the screw ①
and supply oil to the oil tank ② until it reaches
above the central line ③.
B. Open the front cover ① and remove the rubber plug
②. Supply lubricant until it reaches the central line
on the oil window ③.
C. Place back the rubber plug ② and close the front
cover ①.
D. Supply one or two drops of oil to the needle bar
lubrication hole ④ once a week.
E. Replace the waste oil tank ⑤ on a regular basis after
long-term use.
①
②
③
④
③
⑤
②
①
If oil is supplied below the central line, oil cannot be sucked into the upper shaft, and sufficiently supplied
to the upper shaft.
