20

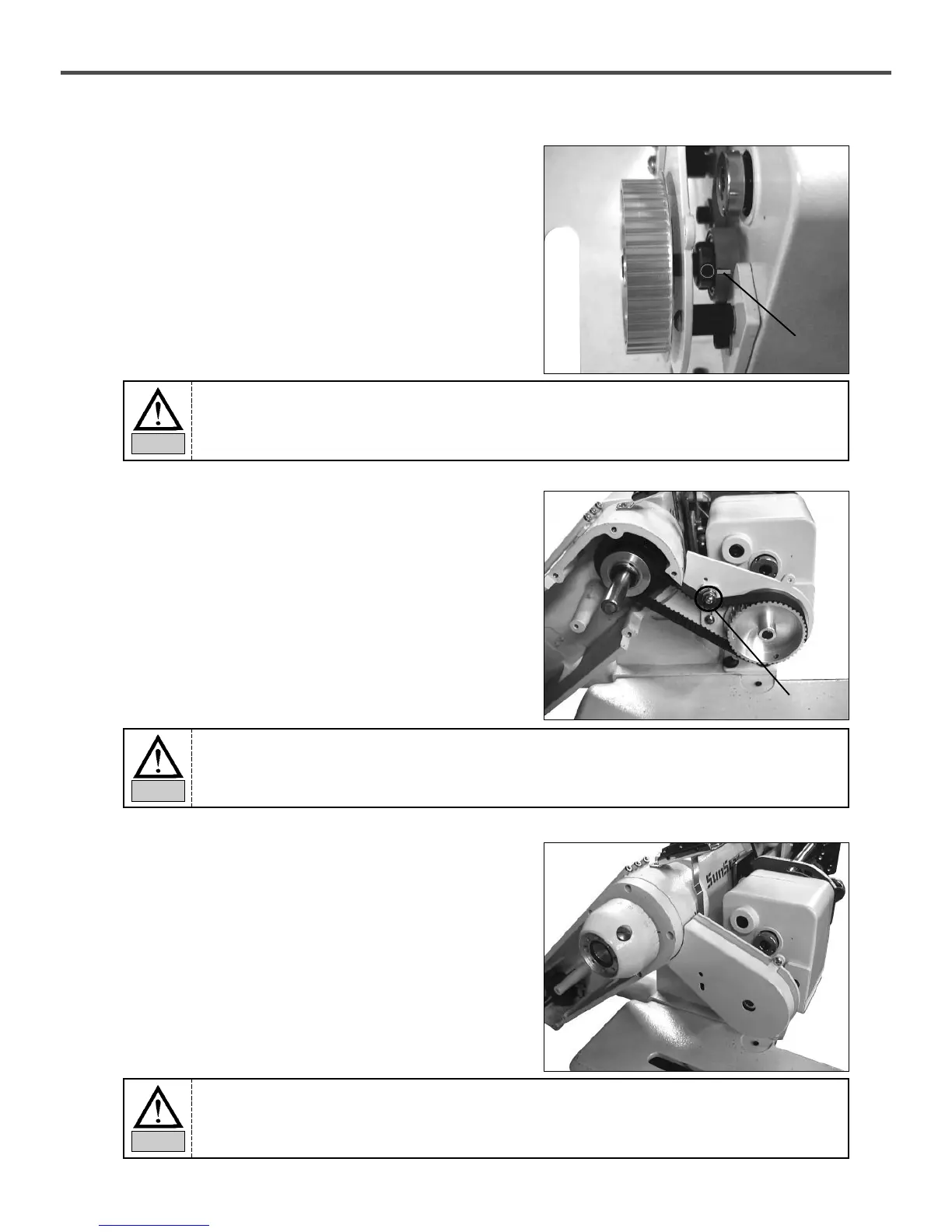

F. Adjust the belt tension using idler on the red-marked part to
keep the position unchanged when the puller timing belt is
connected to the timing belt pulley A.
G. Put the belt cover.
E. Fix it to conform to the red-marked part. (The machine and
the time of the puller accord well)
punched mark
idler
belt cover
Saw teeth movement of the machine and the timing of puller need to be united.
Caution
Fix the belt with proper tension not too loosely or tightly.
Caution
Fix the belt cover not to interfere in the machine.
Caution
To Next Page
