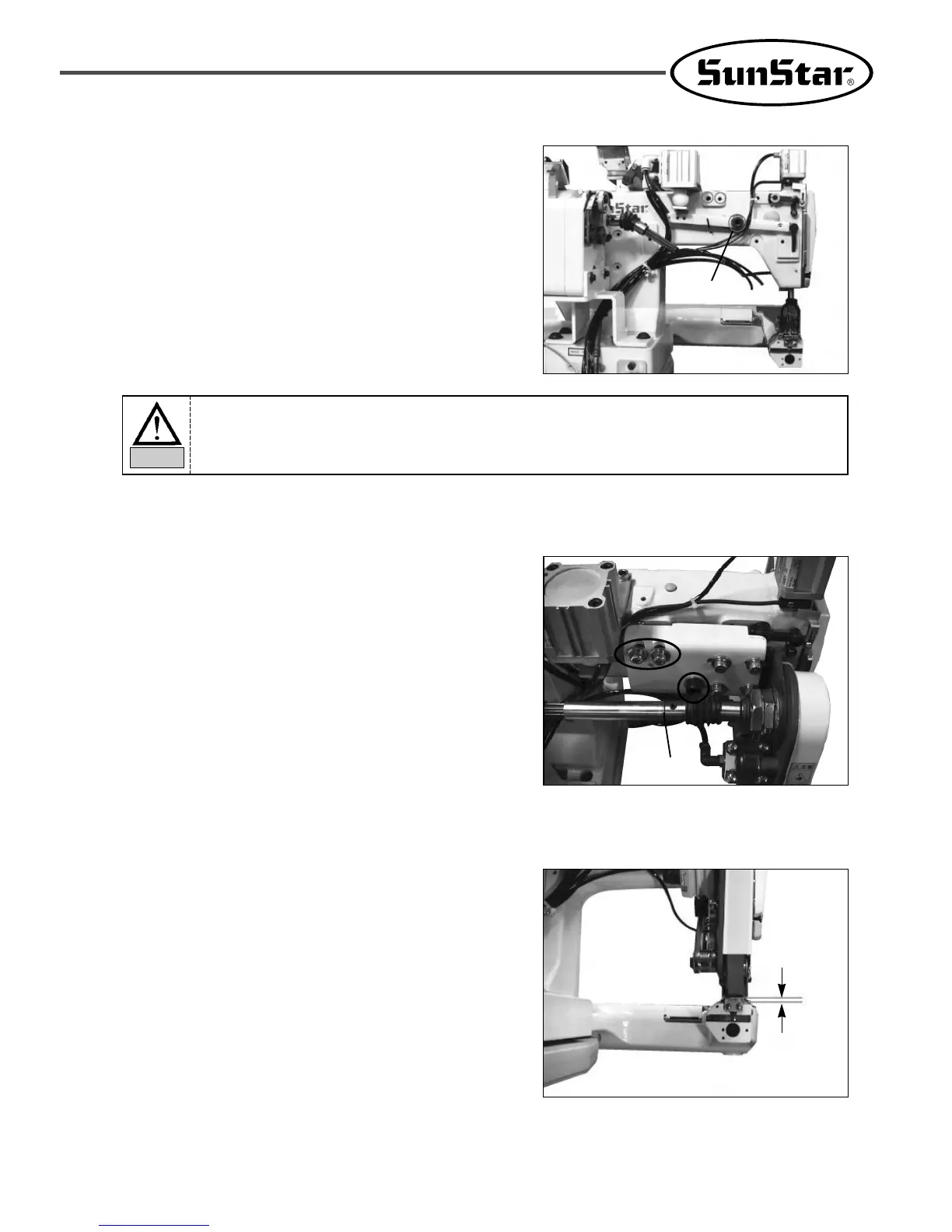

I. Connect the fixation screw (M6x40m/m-2EA,M8x20m/m-

1EA) of the red-marked part to the joint before the puller

body is fixed.

J. Fix the puller body to make the needle plate of the machine

and the contact part horizontally.

H. Locate the body of the puller on the red-marked part.

B(exclusive bolt)

joint

Please use the exclusive bolt for belt puller when fixing the part B.

Caution

Surface of the

needle plate

The contact

part on the belt

SunStar SC 8200J Series User Manual
