47

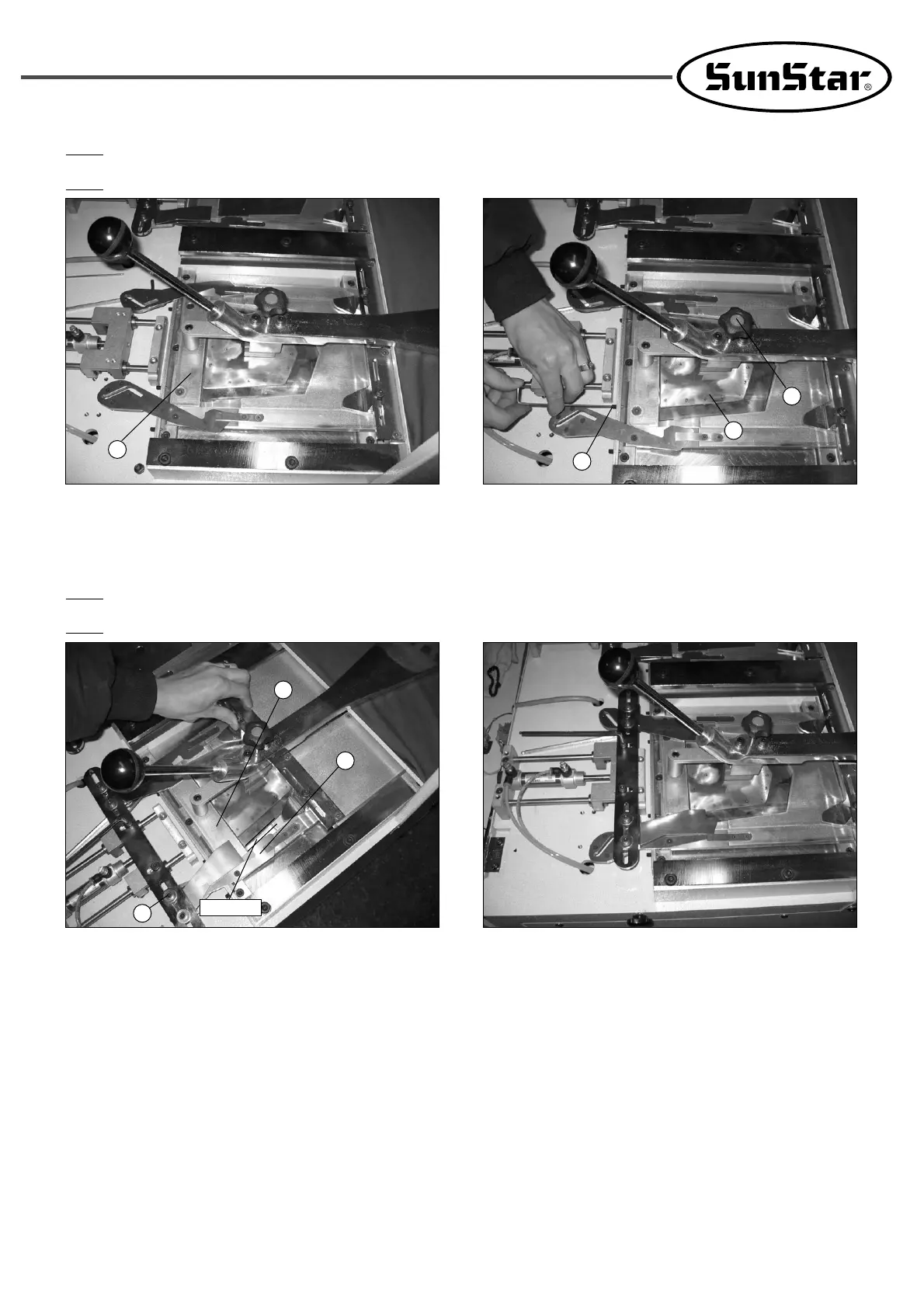

Place the assembly ① made in process #3 as in the figure and fix it with six socket set screws ②. Pull down the pocket
setter ④ as in the figure and set the gap from the pocket groove ① at 0.5mm. Then fix it using the hand screw ③.
06
Set the distance between the end of the side push device ① and the end of the groove ② at 1~1.5mm, and fix them using six
fixing screws ③.
07
1
2
1
3
1∼1.5mm
2
4
3
