34
7.12) X, Y Origin Setting
7.12.1) Y-shaft Origin Setting

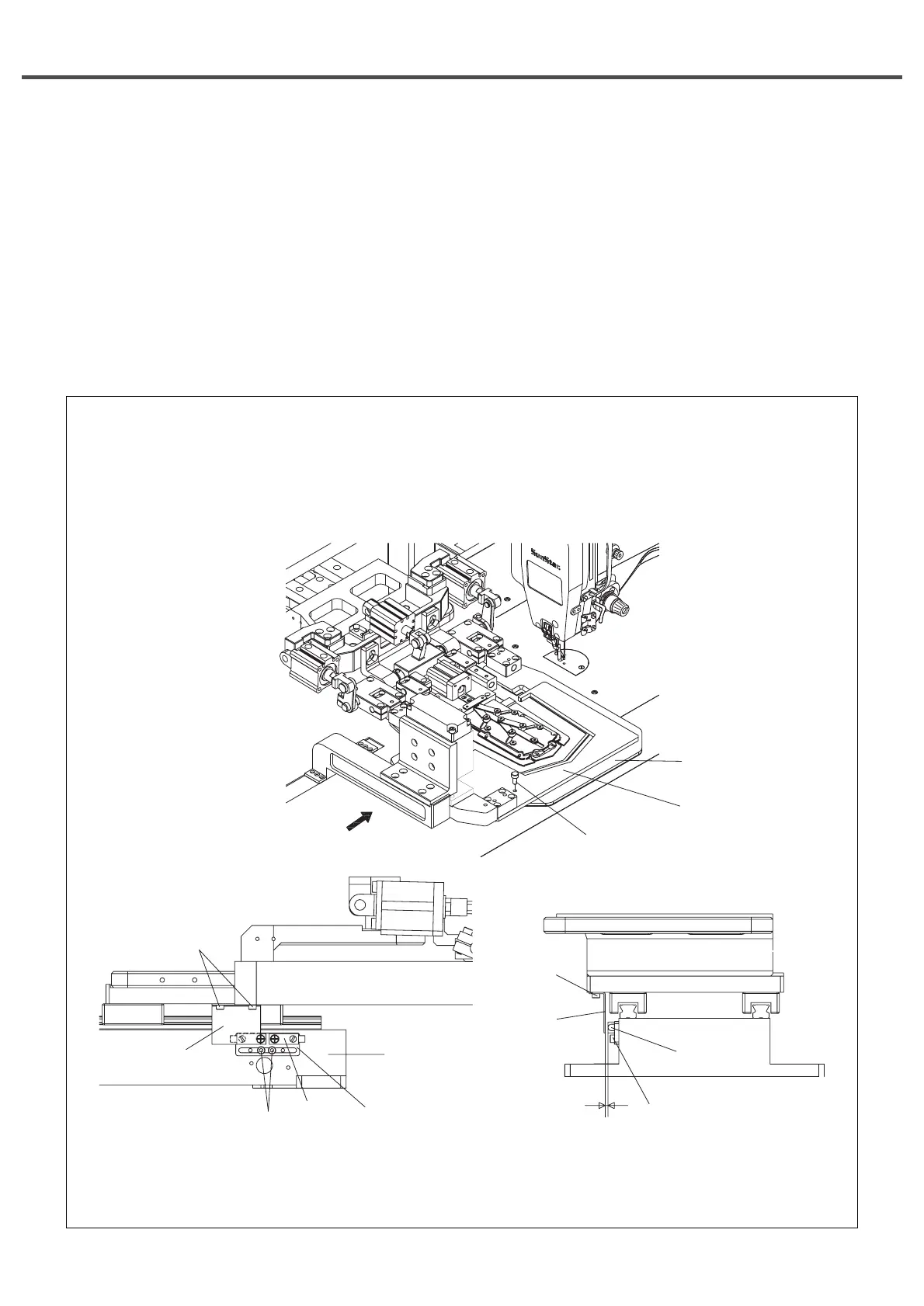

1) Move the feed plate ① fully toward the outer presser plate ②. Adjust the outer presser plate ② to make the two
holes of the feed plate ① overlap the two holes of the external presser plate ②, and then fix the plates with the
origin adjusting pin ③.
2) Loosen the fixing screw ④ for the X-Y sensor bracket ⑧ attached to the X-feed base ⑦ and adjust the X-Y
sensor bracket to place the center of the sensor ⑤ at the right end of the Y sensor plate ⑥. When adjustment is
complete, tightly fasten the bracket with a fixing bolt ④.
3) Loosen the Y-sensor plate fixing screw ⑨ and set the distance between the sensor ⑤ and the sensor plate ⑥ at
1.5mm.
①
③
②
④
⑤
⑨
⑥
1.5mm
⑦
⑧
⑤
④
⑥
⑨
To Next Page
