35

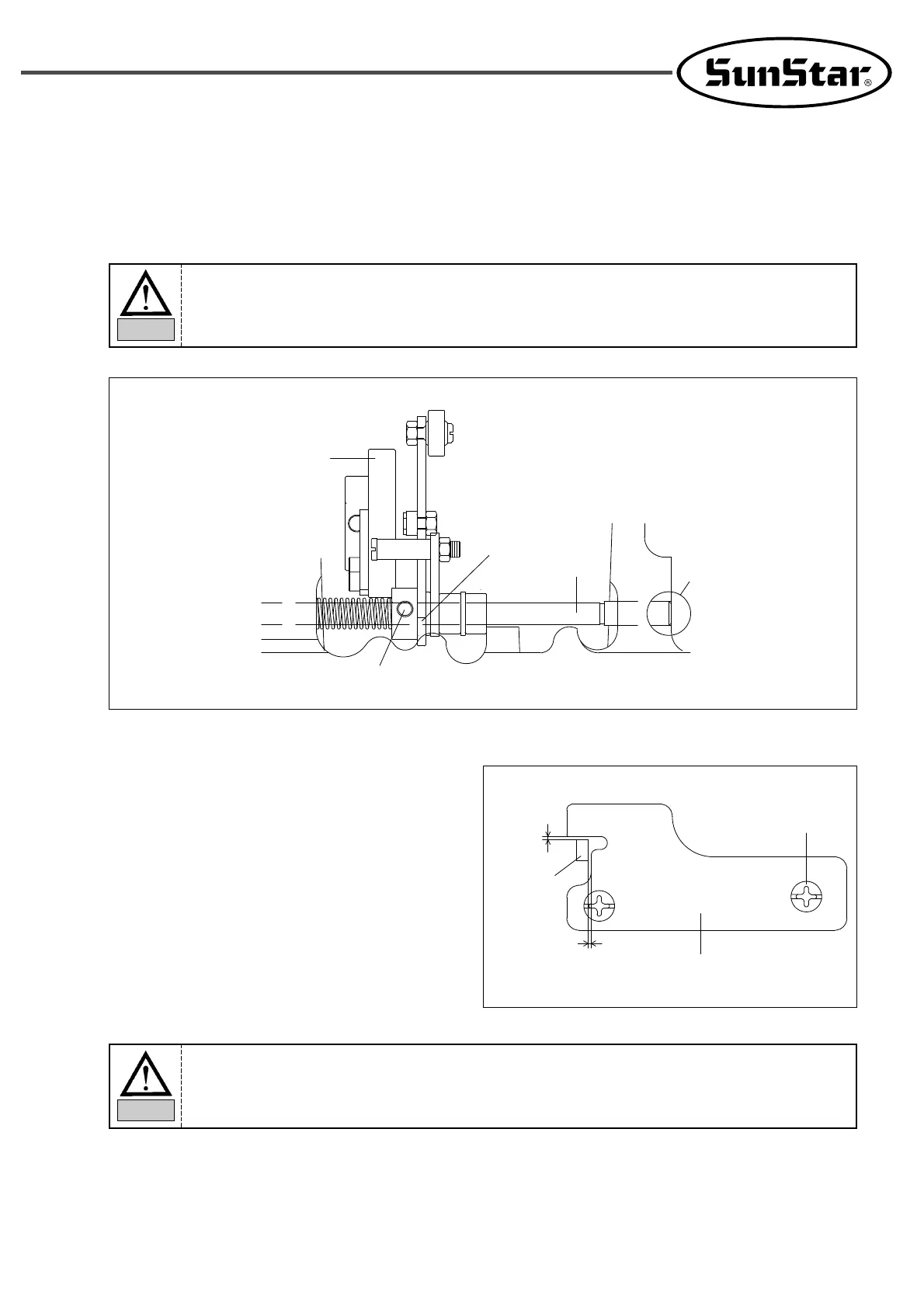

6.12.3) Setting the trimming shaft in place
1) Unfasten the trimming drive link screw and the trimming shaft collar screw.
2) Make the trimming shaft tip accord with part Ⓐ of the arm.
3) Tighten the screws.
If the position setting is inappropriate, bad trimming or stuck parts might take place.
Caution
If the position setting is inappropriate, bad trimming or stuck parts might take place.
Caution
Thread
Trimmer Shaft
Thread Trimmer Cam
Ⓐ
Tightening
Screw
Thread Trimming
Driving Link
6.12.4) Setting the Link Stopper in Place
1) Unfasten the trimming drive link stopper screw
while trimming is not operated and have the
trimming drive link and the trimming drive link
stopper notch 0.3mm apart from each other.
0.3mm
Thread
Trimmer
Driving
Link
Tightening
Screw
Thread Trimmer Driving
Link Stopper
0.3mm
To Next Page
