17
Fixing Screw
Fixing Screw
Motor Cover

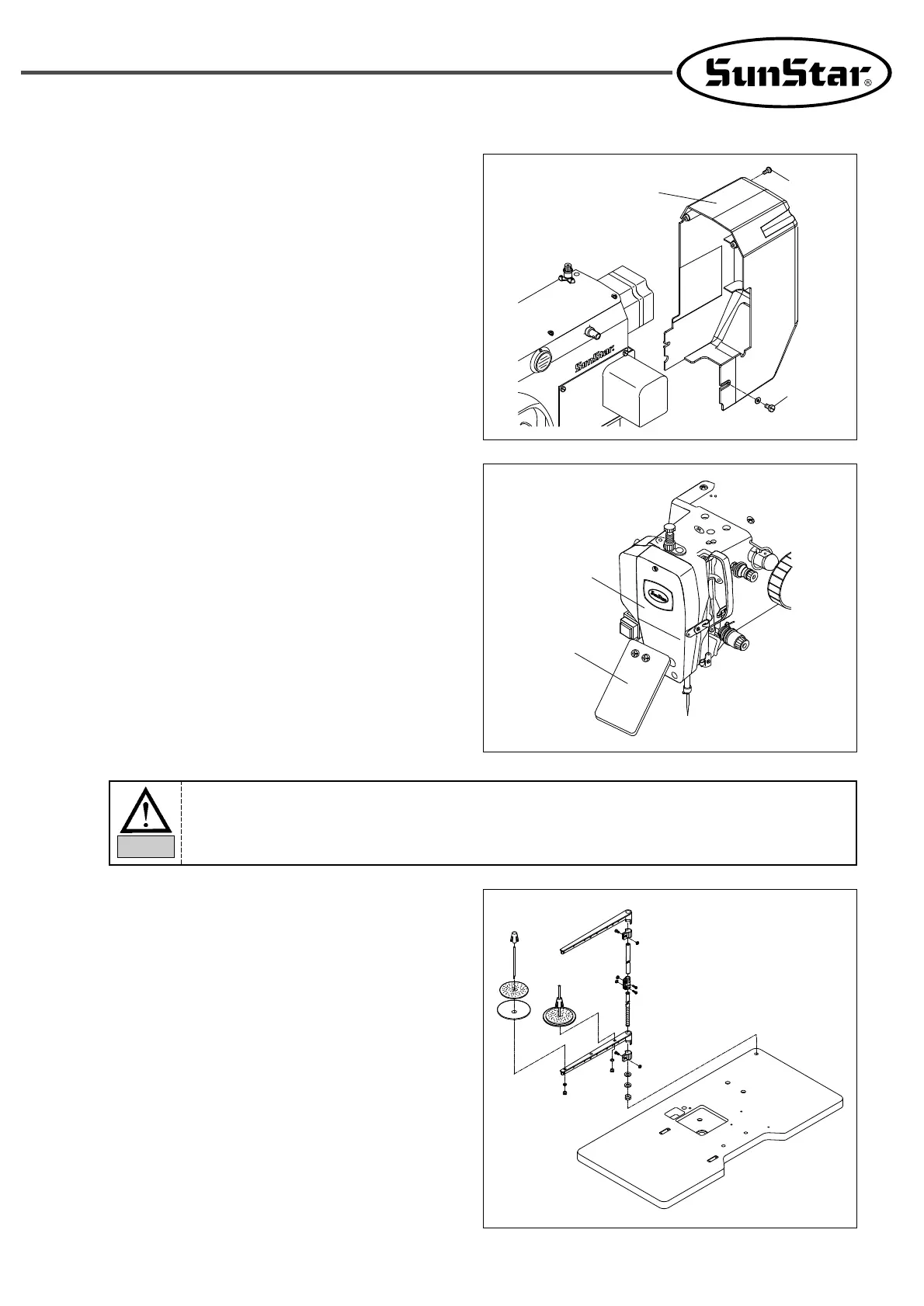

4.5) Accessory Installation
4.5.1) Installation of Motor Cover
Attach the motor cover to the rear side of the
machine by using four fixing screws (4EA, small
size).
Safety Plate
Face Plate
4.5.2) Installation of Safety Plate
Attach the safety plate to the head.
4.5.3) Installation of Thread Stand
Assemble the thread stand and install it on the table.
Make adjustment to properly locate the thread stand.
To guarantee safety, make sure to install the safety plate before using the machine.
Caution
To Next Page
