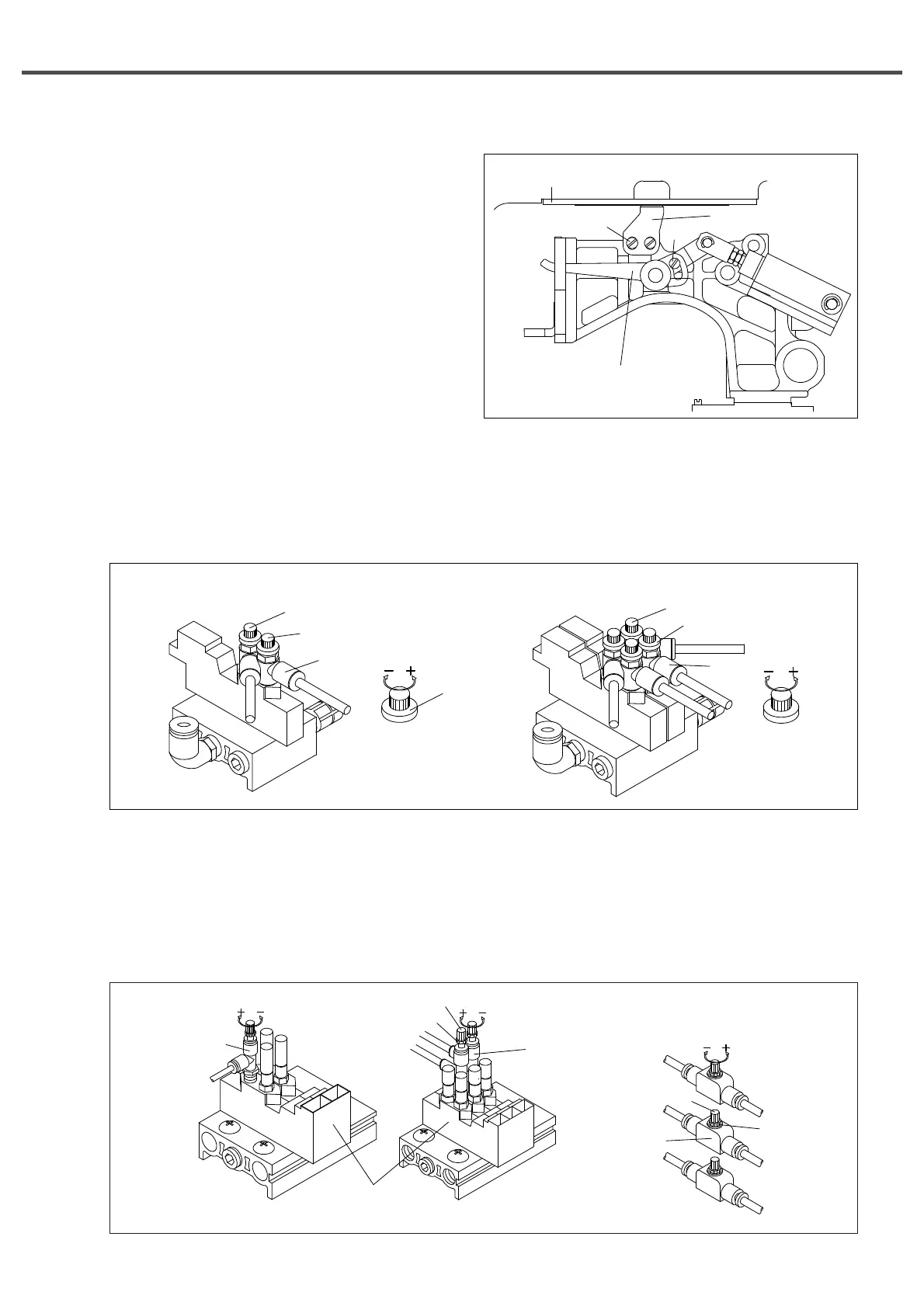

9.3.2) How to adjust the height of the slider
base
－ Unfasten the slider base screw ① and adjust the
slider base to the appropriate height. Then tighten
the screw ① back on firmly.
9.3.3) How to adjust the height of link plate B
－ Unfasten link plate B screw ② and adjust the
appropriate height. Then tighten the screw ②
back on firmly.
Slider Base
①
②
Presser Plate
Link B
9.4) How to Adjust the Up and Down Movement of the Upper Feed Plate
9.4.1) SPS/E-1306(1507)-
-20, 22
－ When the speed controller ① knob ②, which is attached on the bottom of the table, is turned clockwise, the
speed decreases. When the speed controller knob is turned counter-clock wise, the speed increases. So fasten
the nut ③ after adjusting the appropriate speed.
[ SPS/E-1306(1507)--20 ] [ SPS/E-1306(1507)--22 ]
①
①
②
②
③
③
③
9.4.2) SPS/E-1306(1507)-
-21, 22-1
1) When the pressure decrease valve ① knob ②, which is attached on the bottom of the table, is turned clockwise,
the go-up speed of upper feed plate & supporting pressure increase. When the knob is turned counter-clockwise,
the speed and pressure decrease. So fasten the nut ③ after adjusting the appropriate speed and pressure [Fig. Ⓐ]
2) When the speed controller ④ knob ⑤ is turned clockwise, the come-down speed decrease. When the knob is
turned counter-clockwise, the come-down speed increases. So fasten the nut ⑥ after adjusting the appropriate
speed [Fig. Ⓑ ].
[ SPS/E-1306(1507)--21 ]
[ Fig. Ⓐ ]
[ Fig. Ⓑ ]
[ SPS/E-1306(1507)--22-1 ]
Solenoid Valve
②
⑥
⑤
④
③
①
①
To Next Page
