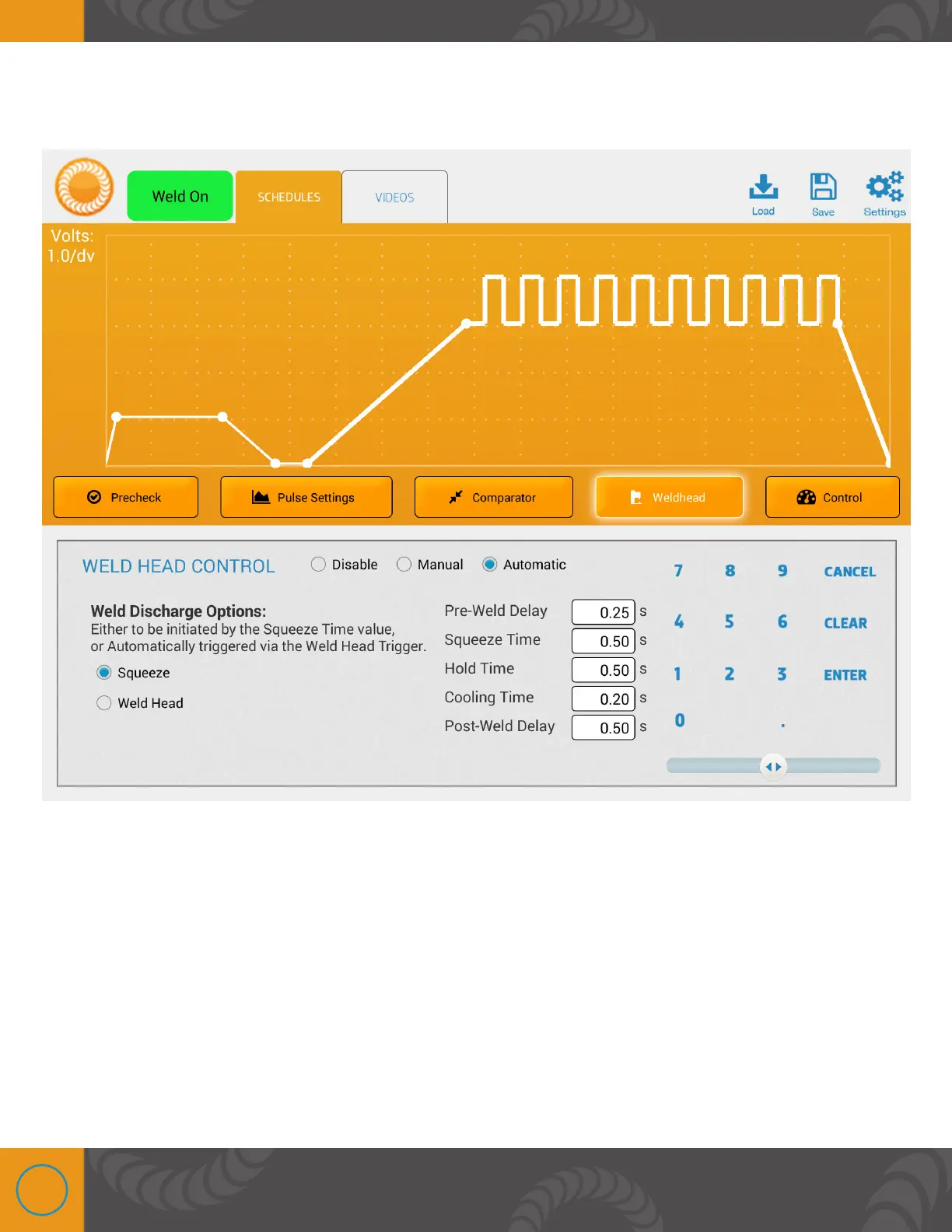

WELD HEAD SCREEN
ere are three weld head control options. One must be selected before entering welding
parameters.
1. Disabled - Select this when using a hand piece.
2. Manual - Select this when controlling a weld head and the Linear DC with two separate foot
pedals.
3. Automatic - Select this when controlling a weld head and the Linear DC with one foot pedal
or when attaching to a PLC.
• Weld Discharge Options:
• Squeeze - The Weld will be initiated after the time value in the “Squeeze Time” box
has been reached
• Weld Head - The Weld will be initiated by the micro switch within the Weld Head once
