3) Then, insert AC output wires according to polarities indicated on the terminal block
and tighten the terminal. Make sure to connect corresponding N wires and PE wires
to related terminals as well.
4) Ensure the wires are securely connected.
5) Check that the AC power source is isolated before attempting to connect it to the
inverter. Insert AC output wires according to the polarities indicated on the terminal
block and tighten the terminal screws. Be sure to connect corresponding N wires
and PE wires to the correct terminals and ensure the wires are securely connected.

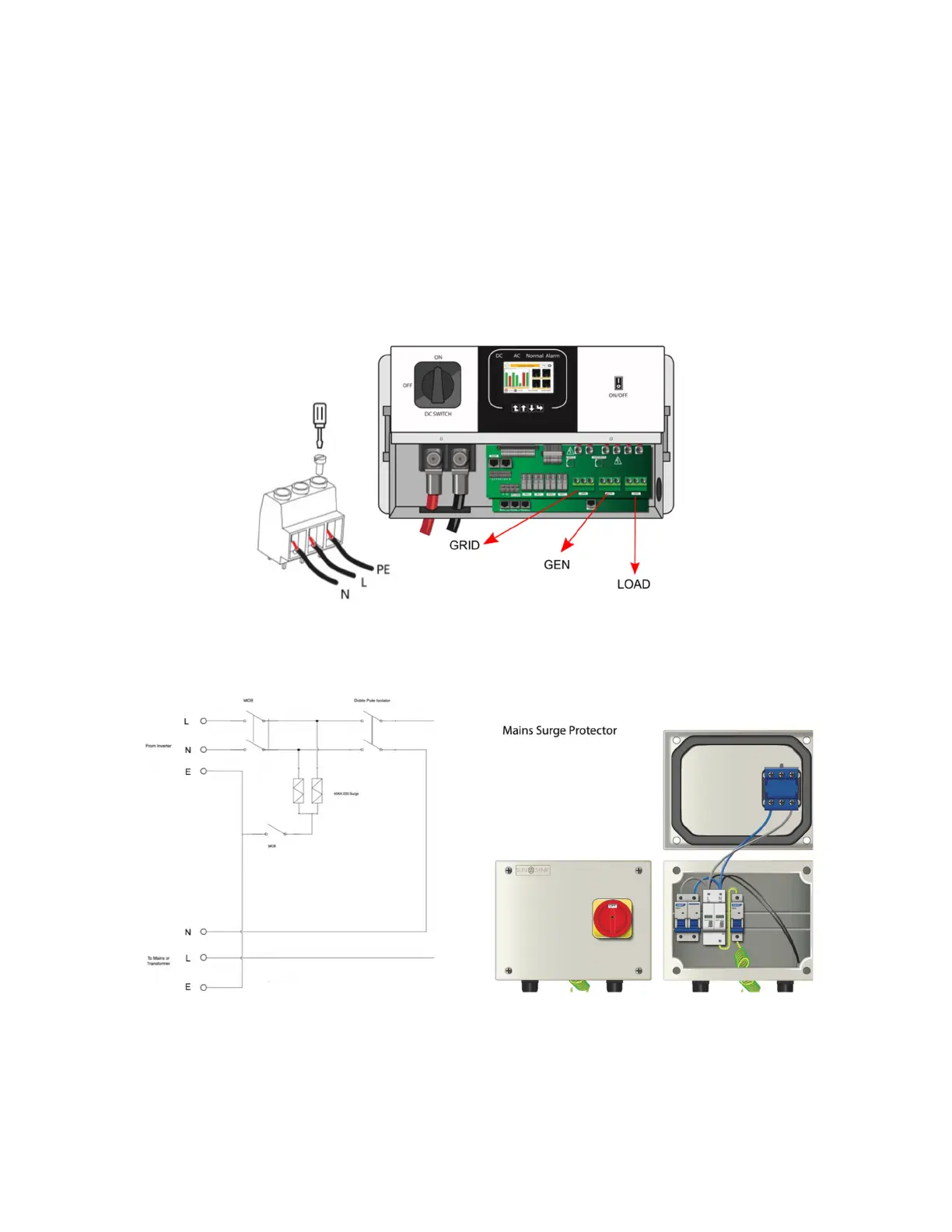

Recommended AC Surge Protector
Please ensure you use suitable protection devices. Switchgear and fuses must be
following the local wiring standards. A figure of the complete system is presented below.
