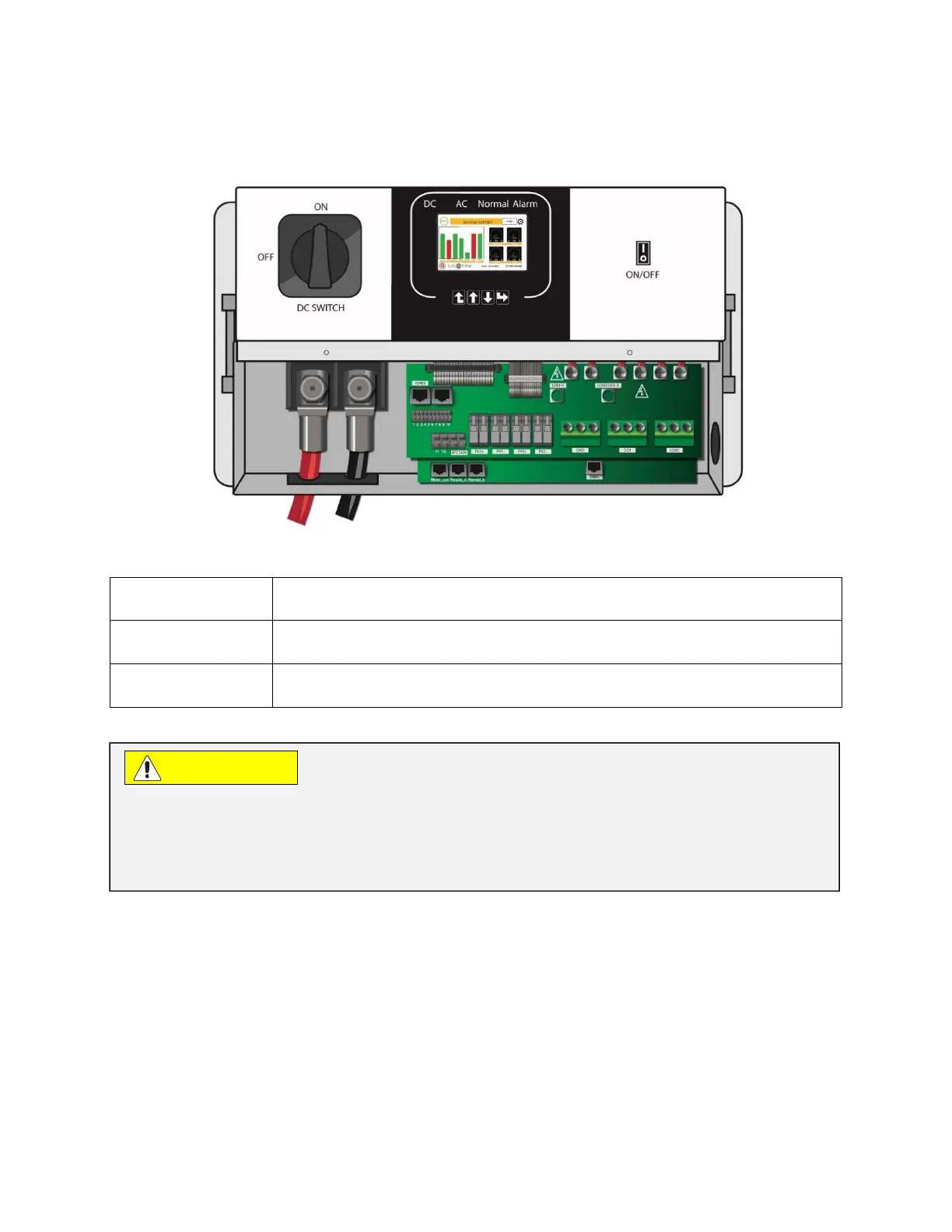

4.6. Connecting the AC
GEN/AUX Generator connection.
GRID
This works like a conventional grid-tied inverter. It is both an input
and output connection for non-essential load and supply
LOAD
Connection of essential loads such as lighting, security systems,
and Internet
Please follow the steps below to implement GRID, LOAD, and GEN port connections:
1) Before making GRID, LOAD, and GEN port connections, make sure to turn off the
AC breaker or disconnector first.
2) Remove 10mm sleeve from each wire, unscrew the bolts, insert the wires according
to the polarities indicated on the terminal block and tighten the terminal screws.
Ensure the connection is complete.
All wiring and cable sizes must comply with your particular country’s wiring
regulations and Codes of Practices
Ensure that suitable disconnection devices and RCDs are fitted.
