4.7. Installing the CT Coil
The CT coil is one of the most important parts of the Sunsynk Parity inverter. This device
reduces the power of the inverter to prevent feeding power to the grid. This feature is also
known as "Zero Export".

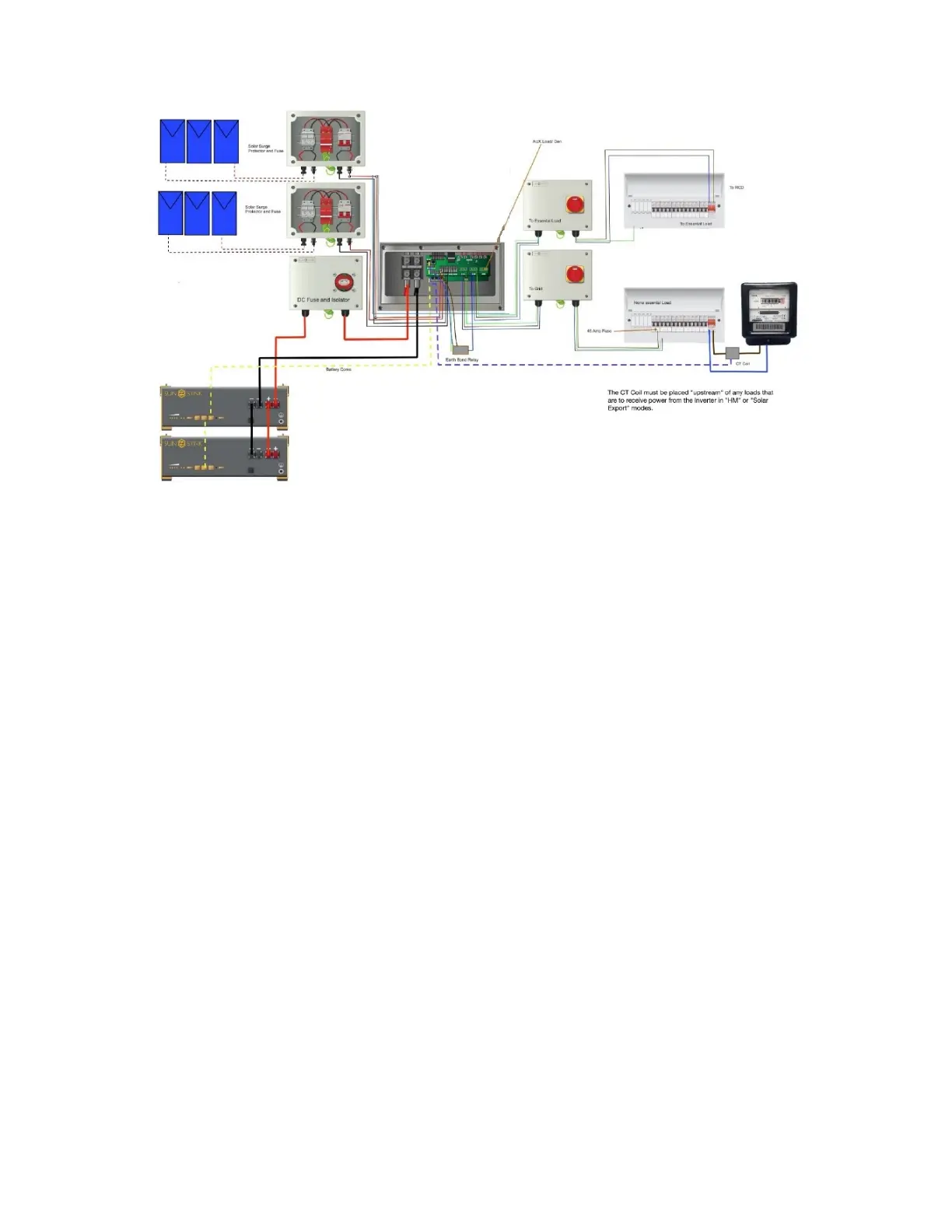

1) Fit the coil (sensor) around the live cable on the main fuse feeding the building and
run the cable back to the inverter. This cable can be extended up to an extra 10m
using a similar cable.
2) Connect the other end of the CT coil into the inverter terminals marked as CT coil.
