SINGLE PHASE HI 3.6/5kW | Installer Manual25
ON
1 2
ON
1 2
L N PE
White wire
Inverter
3 4
Black wire
Grid
L
N
CT
3
4
Load
L N PEL N PE
L N PE
Grid
Gen

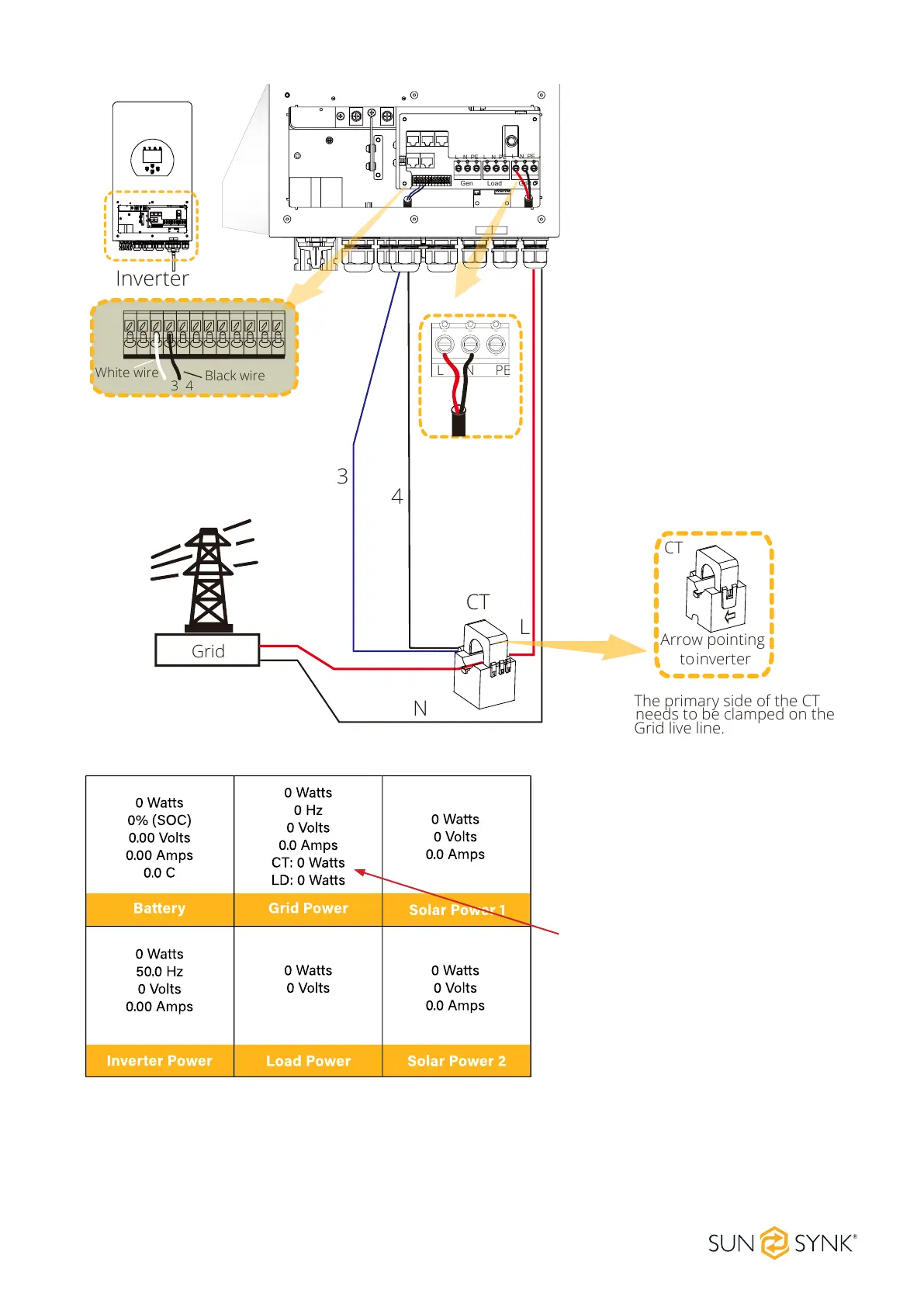

The primary side of the CT
needs to be clamped on the
Grid live line.
CT
Arrow pointing
to inverter
If the CT coil is tted in the wrong way
then this variable will have negative
instead of positive values when the
power is owing into the
house/inverter. Also, the inverter
export limiting function will not work
properly.
To Next Page
