SUNWARD SWE210F - Starting Switch; Fuel Control Knob

83

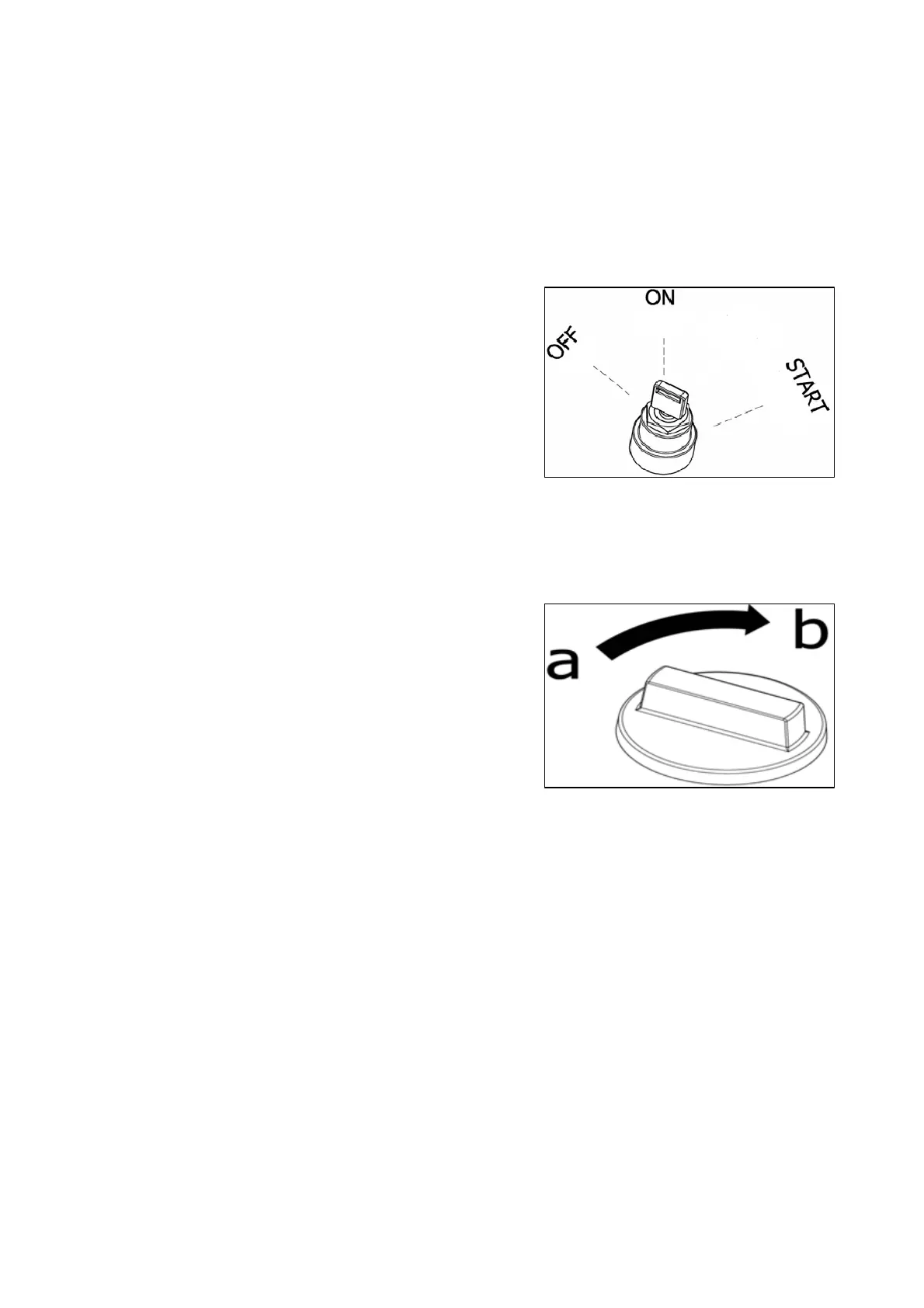

3.2.10 Starting switch
Starting switch (10) is used to start or shut engine.
 OFF position
You can insert or remove key. All electrical
system switches are shut except indoor lamp.
Engine is stopped as well.
 ON position
Current flows in charging circuit and
lighting circuit. Hold the starting switch key in
ON position when engine is running.
 START position
It’s engine starting position. When starting
the engine, hold the key in this position. With
engine started, release the key immediately; it
will go back to ON position automatically.
Note: Some starting switch‘ON’and ‘HEAT’is
the same position, there are has 3 shifts.
3.2.11 Fuel control knob
 Control knob (11) is used to regulate engine rev
and power output.
（a） low idle speed position
（b） high idle speed position
 When shifting fuel control knob from position
“a” to position “b”, engine rev will increase.；
 When shifting the knob from position “b” to
“a”, engine revolution will decrease.
