SUNWARD SWE210F - Cover, Hood with Lock

90
3.3.2 Cover, hood with lock
 The fuel filling opening, cab, machine body
covering units are equipped with lock.
 When using starting key to open or close these
covers, doors and hoods, insert the key to the
bottom, then rotate the key. If it is rotated when
partially inserted, the key may break.

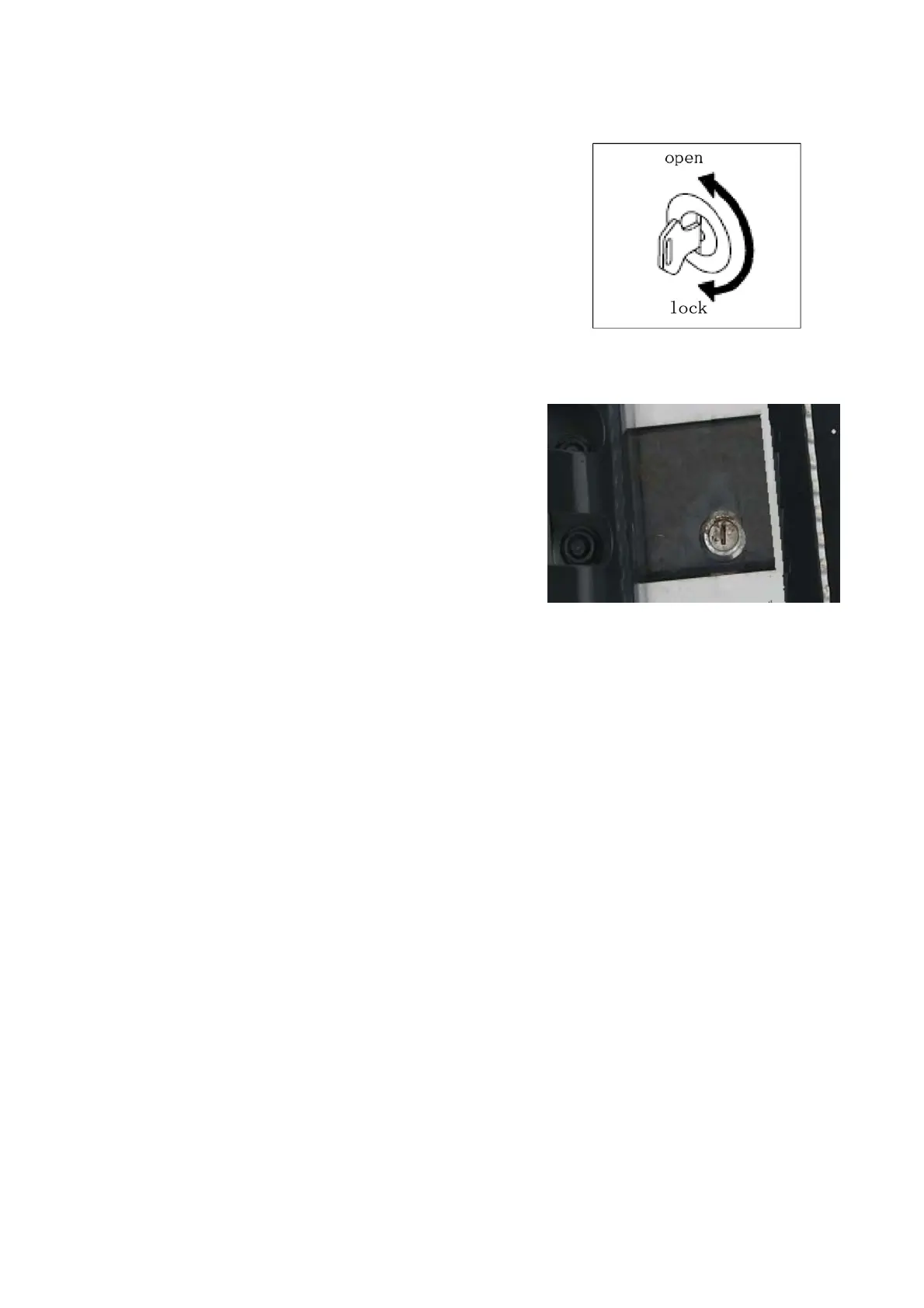

Opening and closing door or covers with lock
 Insert the key into the key slot, turn the key
counter clockwise and pull the handle to open
the door or covers.；
 Turn the key clockwise to lock the door or
covers (see the right fig).
Opening and closing engine hood
 Pull the lock A located on the left/right of the
engine hood to release the lock. Use handle to
push engine hood up(see the right fig)
 Use engine lock bayonet to secure the hood as
shown in the fig. then connect C to open end D
(see fig), install lock, so engine hood can be
locked.
