SUNWARD SWE210F - Air Condition Instruction

97
3.3.7 Air condition instruction
Warning
 It ’ s dangerous to perform improper
operation, lubrication, and
maintenance or service procedure on the
machine. This may cause injury or death.
 Do not attempt any operation on the
machine before you thoroughly
understand the information about
operation, lubrication, maintenance,
and service procedure.
 Safety precautions and warnings are
provided in this manual. If you fail to
pay attention to these information, you
or the other persons may suffer the
injury and even death.

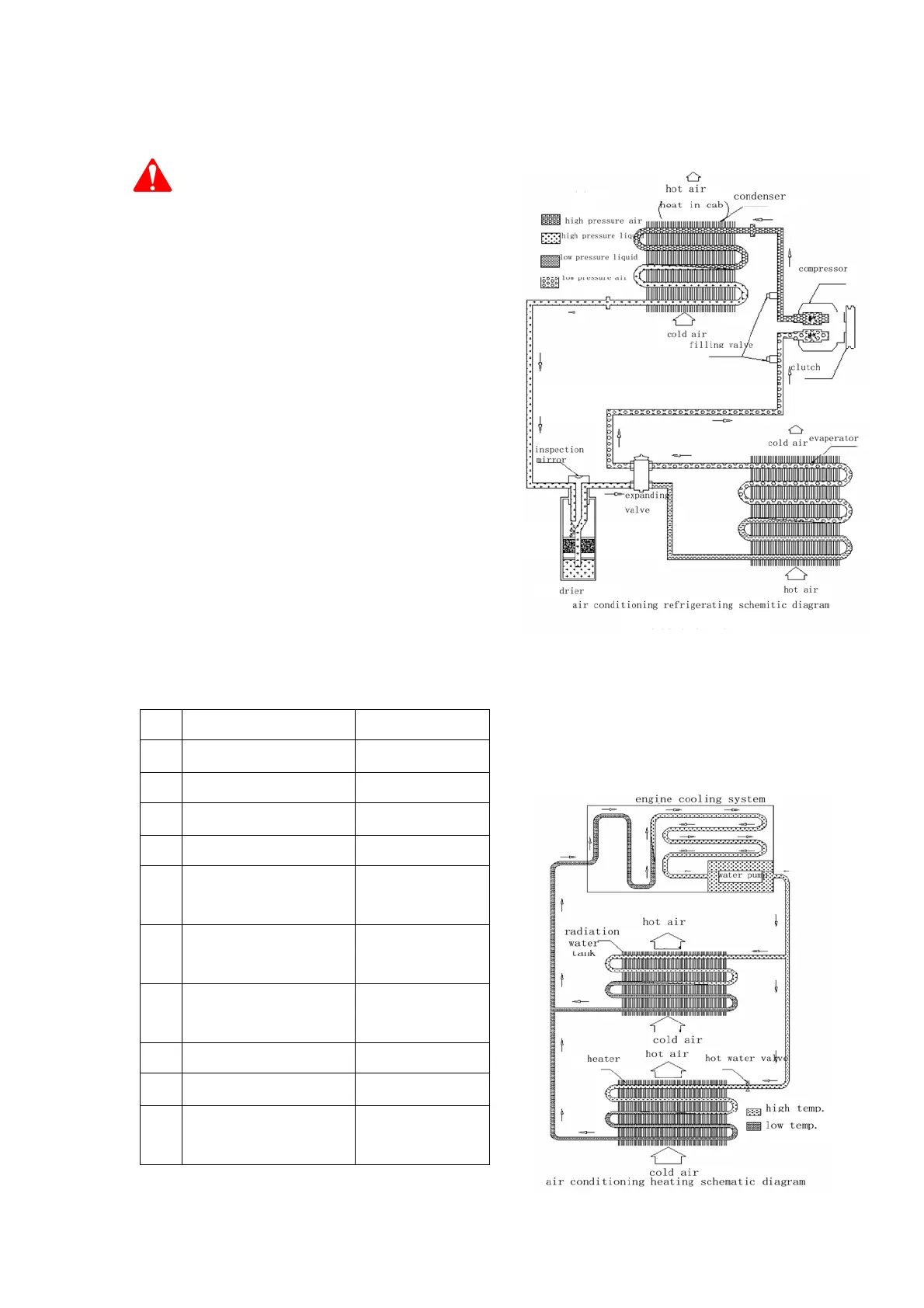

Schematic diagram
This air conditioning is heat/refrigeration A/C.
refers to the schematic diagram on the right.
NO Name Specification
1 Cooling Capacity 4.0kw
2 Heating Capacity 5.0kw
3 Air Flow Capacity 400m
3
/h
4 Voltage 24V.DC
5
Total Power
Consumption
≤250w
6
Motive Power
Consumption
≤2.5kw
7 Refrigerant
R-134a(environ
ment friendly)
8 Refrigerant Change 1000 1100g∽
9 Compressor SE-5H14 B
10
Refrigerate oil
PAG(sp20),300m
l
