Supermicro C2SBM-Q User Manual

Chapter 2: Installation
2-15
FAN1
JI2C2
JWOR
JFSB3
JF1
JWD
JLED
Battery
J40
DIMM1A
DIMM2A
DIMM1B
I-SATA2
I-SATA3
SPEAKER
KB/MOUSE
CPU Fan
J28
VGA
JGS1
USB 2/3/4/5
J43
J11
USB 0,1
J46
Audio
J41
4-Pin PWR
LGA 775 CPU
JFSB2
JFSB1
PCI2
Slot5 PCI-E x4
JPAC
J9
Buzzer
SPKR
Slot4 PCI-33MHz
PCI1
J12
J3
IDE#1
J45
FP USB 8/9
FP USB 6/7
J44
JL1
LE1
FP CTRL
Intel Q35
24-pin ATX PWR
Audio CTRL
CD-IN
CD1
Front Audio
W83627DHG
S I/O 1
IDE CTRL
ITE 8213
J
1
5
C
O
M
4
USB 10
JWOL
I-SATA0
I-SATA1
JS4
JS3
JS1
JS2
FAN2
Fan3
JPUSB1
PCI3
Slot7 PCI-E x16
JI2C1
JP2
Intel ICH9DO
JPUSB2
J47
JPL1
COM2
W83627DHG
S I/O 2
J14
COM3
Slot6 PCI-33MHz
PCI1
JPT1
DIMM2B
LAN CTRL
LAN 1
C2SBM-Q
COM1
J31
JBT1
Fan Headers

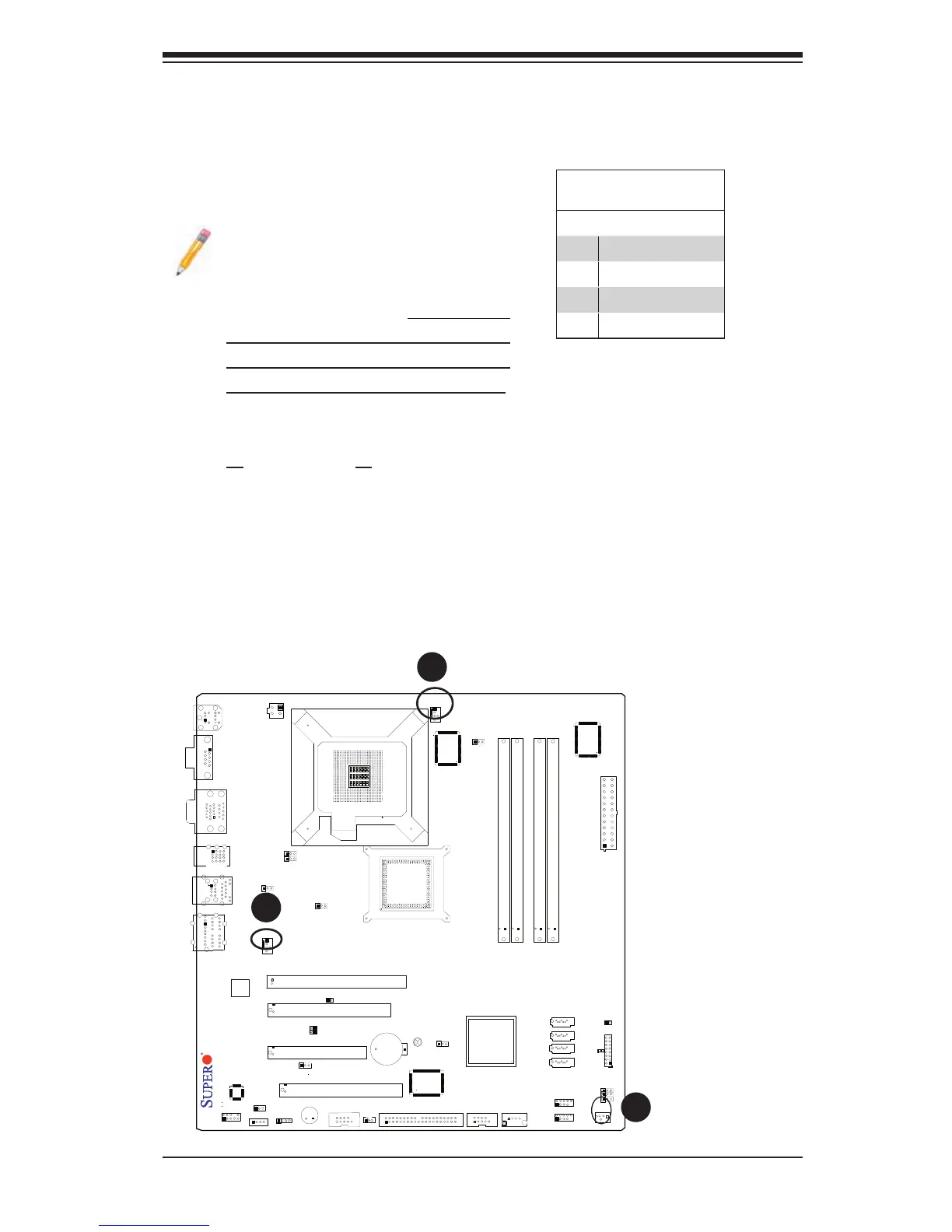

The C2SBM-Q has three chassis fan head-
ers (Fan 1 to Fan 3). Fan 1 is the CPU Fan.
Fan 2 to Fan 3 are system/chassis fans.
Note: Pins 1-3 of a 4-pin fan headers
are backward compatible with the tradi-
tional 3-pin fans.) See the table on the
right for pin definitions. *The onboard
fan speeds are controlled by Thermal
Management via BIOS Hardware
Monitoring in the Advanced Setting.
(Default: Disabled. When using Ther-
mal Management settings, please use
all 3-pin fans or all 4-pin fans on the
motherboard.)
A. Fan 1 (CPU Fan)
B.
Fan 2
C.
Fan 3
Fan Header
Pin Definitions (Fan1-3)
Pin# Definition
1 Ground
2 +12V
3 Tachometer
4 PWR Modulation
VGA Connector
A VGA connector (JG1) is located next to
the USB ports on the IO backplane. Refer
to the board layout below for the location.
A
B
C
