Supermicro C2SBM-Q User Manual

Chapter 2: Installation
2-25
FAN1
JI2C2
JWOR
JFSB3
JF1
JWD
JLED
Battery
J40
DIMM1A
DIMM2A
DIMM1B
I-SATA2
I-SATA3
SPEAKER
KB/MOUSE
CPU Fan
J28
VGA
JGS1
USB 2/3/4/5
J43
J11
USB 0,1
J46
Audio
J41
4-Pin PWR
LGA 775 CPU
JFSB2
JFSB1
PCI2
Slot5 PCI-E x4
JPAC
J9
Buzzer
SPKR
Slot4 PCI-33MHz
PCI1
J12
J3
IDE#1
J45
FP USB 8/9
FP USB 6/7
J44
JL1
LE1
FP CTRL
Intel Q35
24-pin ATX PWR
Audio CTRL
CD-IN
CD1
Front Audio
W83627DHG
S I/O 1
IDE CTRL
ITE 8213
J
1
5
C
O
M
4
USB 10
JWOL
I-SATA0
I-SATA1
JS4
JS3
JS1
JS2
FAN2
Fan3
JPUSB1
PCI3
Slot7 PCI-E x16
JI2C1
JP2
Intel ICH9DO
JPUSB2
J47
JPL1
COM2
W83627DHG
S I/O 2
J14
COM3
Slot6 PCI-33MHz
PCI1
JPT1
DIMM2B
LAN CTRL
LAN 1
C2SBM-Q
COM1
J31
JBT1
USB Wake-Up

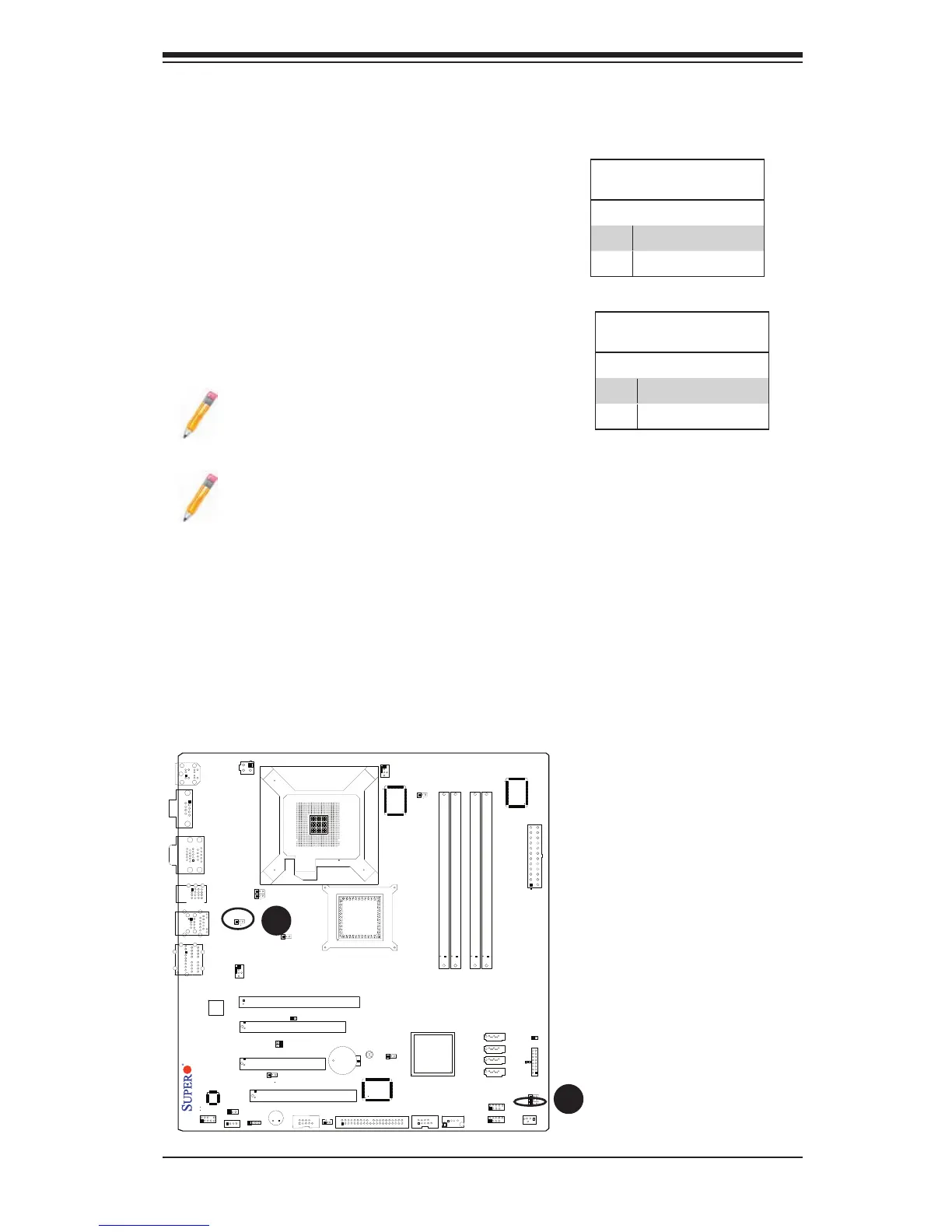

Use JPUSB jumpers to enable the function of
"System Wake-Up via USB devices", which al-
lows you to "wake-up" the system by pressing a
key on the USB keyboard or by clicking the USB
mouse of your system. The JPUSB jumpers are
used together with the USB Wake-Up function
in the BIOS. Enable both the jumpers and the
BIOS setting to allow the system to "wake-up
via USB Devices". See the table on the right for
jumper settings and jumper connections.
Note 1: JPUSB1 is for Back Panel USB
ports:0/1/2/3/4/5, and JPUSB2 is for Front
Panel USB ports:6/7/8/9/10.)
Note 2: The default jumper setting for the
USB ports is "Disabled". However, when
the "USB Wake-Up" function is enabled in
the BIOS and the desired USB ports are
enabled via the JPUSB jumper, please be
sure to remove all USB devices from the
USB ports whose USB jumpers are set to
"Disabled" before the system goes into the
standby mode.
JPUSB1 (Back Panel USB
Wake-up)
Pin# Definition
1-2 Enabled (*default)
2-3 Disabled
JPUSB2 (Front Panel USB
Wake-up)
Pin# Definition
1-2 Enabled
2-3 Disabled (*default)
A
B
A. JPUSB1
B. JPUSB2
