A. HD Audio
B. CD-In
C. Front Panel Audio
High Definition Audio (HDA)
The C2SBM-Q features a 7.1+2 Channel
High Definition Audio (HDA) (J46) codec that
provides 10DAC channels, simultaneously
supporting 7.1 sound playback and two channels
of independent stereo sound output (multiple
streaming) through the front panel stereo out
for front L&R, rear L&R, center and subwoofer
speakers. This feature is activated with the
Advanced software in the CD-ROM that came
with your motherboard. Sound is then output
through the Line In, Line Out and MIC jacks

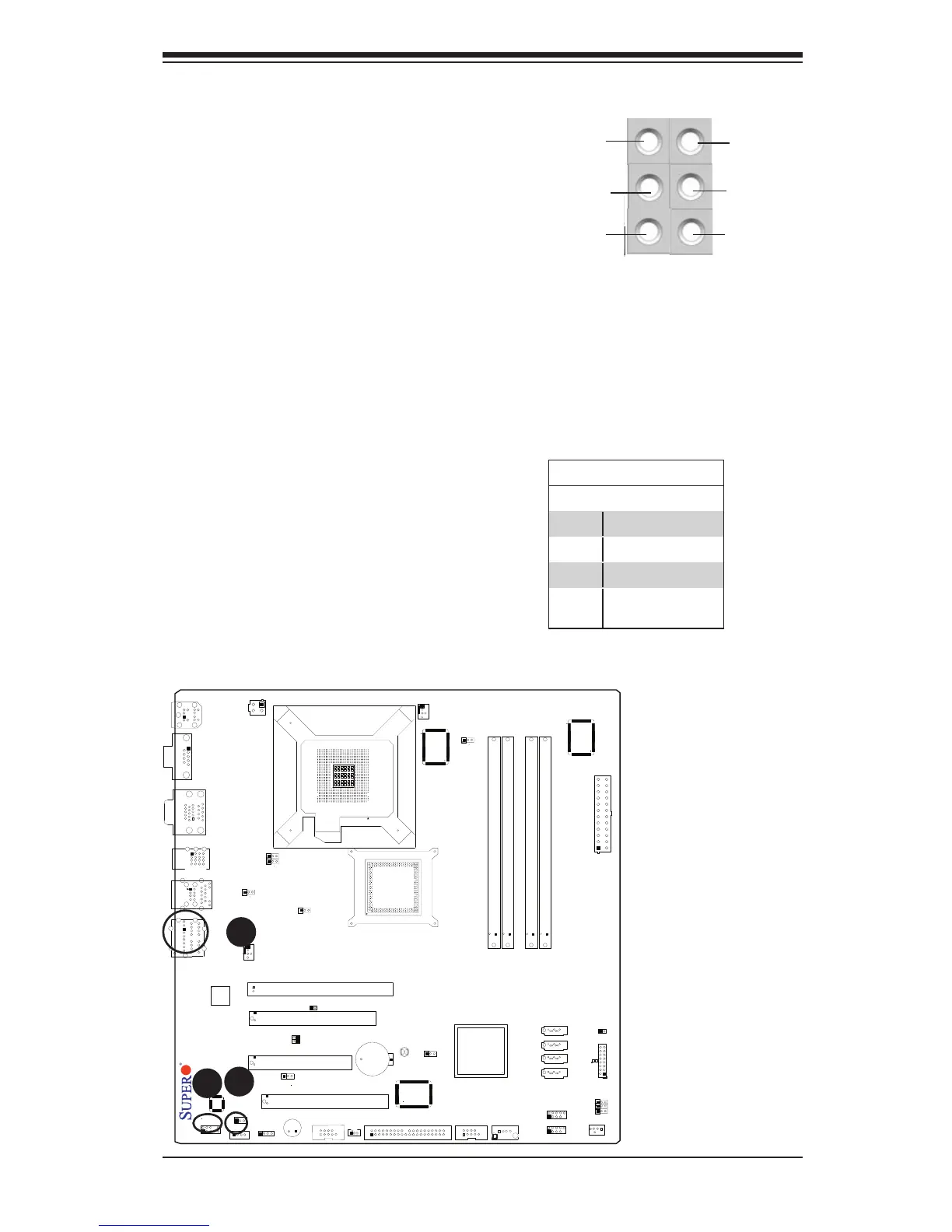

(See at the picture at right).
CD1 Pin Definition
Pin# Definition
1 Left Stereo Signal
2 Ground
3 Ground
4 Right Stereo
Signal
Grey: Side
Surround
Black: Back
Surround
Orange:
CEN/LFE
Pink: Mic-In
Green:Front
Blue: Line-In
CD Header
A 4-pin CD header is located at CD1, and an
Auxiliary header is located at J12 on the moth-
erboard. These headers allow you to use the
onboard sound for audio CD playback. Con-
nect an audio cable from your CD drive to the
header that fits your cable's connector. Only
one CD header can be used at any one time.
See the tables at right for pin definitions.
A
B
C
