Supermicro C2SBM-Q User Manual

2-16
C2SBM-Q User's Manual
FAN1
JI2C2
JWOR
JFSB3
JF1
JWD
JLED
Battery
J40
DIMM1A
DIMM2A
DIMM1B
I-SATA2
I-SATA3
SPEAKER
KB/MOUSE
CPU Fan
J28
VGA
JGS1
USB 2/3/4/5
J43
J11
USB 0,1
J46
Audio
J41
4-Pin PWR
LGA 775 CPU
JFSB2
JFSB1
PCI2
Slot5 PCI-E x4
JPAC
J9
Buzzer
SPKR
Slot4 PCI-33MHz
PCI1
J12
J3
IDE#1
J45
FP USB 8/9
FP USB 6/7
J44
JL1
LE1
FP CTRL
Intel Q35
24-pin ATX PWR
Audio CTRL
CD-IN
CD1
Front Audio
W83627DHG
S I/O 1
IDE CTRL
ITE 8213
J
1
5
C
O
M
4
USB 10
JWOL
I-SATA0
I-SATA1
JS4
JS3
JS1
JS2
FAN2
Fan3
JPUSB1
PCI3
Slot7 PCI-E x16
JI2C1
JP2
Intel ICH9DO
JPUSB2
J47
JPL1
COM2
W83627DHG
S I/O 2
J14
COM3
Slot6 PCI-33MHz
PCI1
JPT1
DIMM2B
LAN CTRL
LAN 1
C2SBM-Q
COM1
J31
JBT1

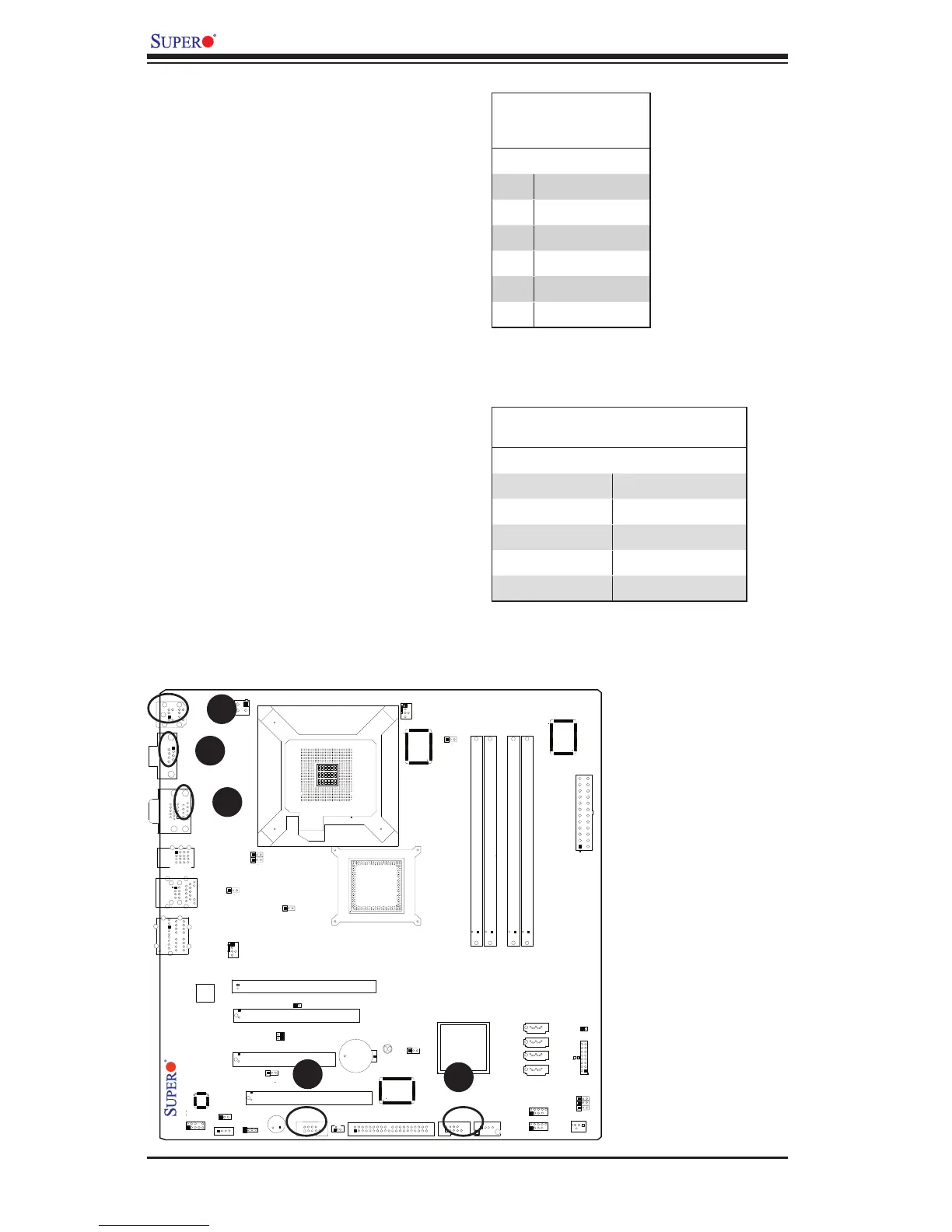

ATX PS/2 Keyboard and PS/2
Mouse Ports
The ATX PS/2 keyboard and the PS/2
mouse are located at J28. See the
table on the right for pin definitions.
(The mouse port is above the key-
board port. See the table on the right
for pin definitions.)
PS/2 Keyboard and
Mouse Port Pin
Definitions
Pin# Definition
1 Data
2 NC
3 Ground
4 VCC
5 Clock
6 NC
Serial Ports
COM 1 (JGS1) and COM 2 (JGS1)
are connectors located on the IO
Backpanel, COM 3 (J14) and COM 4
(J15) are headers. See the table on
the right for pin definitions.
Serial Port Pin Definitions
Pin # Definition Pin # Definition
1 DCD 6 DSR
2 RXD 7 RTS
3 TXD 8 CTS
4 DTR 9 RI
5 Ground 10 NC
A. Keyboard/Mouse
B.
COM1
C. COM2
D. COM3
E. COM4
(Pin 10 is available on COM2
only. NC: No Connection.)
B
A
C
D
E
