2-8
C2SBM-Q User's Manual
FAN1
JI2C2
JWOR
JFSB3
JF1
JWD
JLED
Battery
J40
DIMM1A
DIMM2A
DIMM1B
I-SATA2
I-SATA3
SPEAKER
KB/MOUSE
CPU Fan
J28
VGA
JGS1
USB
2/3/4/5
J43
J11
USB 0,1
J46
Audio
J41
4-Pin PWR
LGA 775 CPU
JFSB2
JFSB1
PCI2
Slot5 PCI-E x4
JPAC
J9
Buzzer
SPKR
Slot4 PCI-33MHz
PCI1
J12
J3
IDE#1
J45
FP USB 8/9
FP USB 6/7
J44
JL1
LE1
FP CTRL
Intel Q35
24-pin ATX PWR
Audio CTRL
CD-IN
CD1
Front Audio
W83627DHG
S I/O 1
IDE CTRL
ITE 8213
J
1
5
C
O
M
4
USB 10
JWOL
I-SATA0
I-SATA1
JS4
JS3
JS1
JS2
FAN2
Fan3
JPUSB1
PCI3
Slot7 PCI-E x16
JI2C1
JP2
Intel ICH9DO
JPUSB2
J47
JPL1
COM2
W83627DHG
S I/O 2
J14
COM3
Slot6 PCI-33MHz
PCI1
JPT1
DIMM2B
LAN CTRL
LAN 1
C2SBM-Q
COM1
J31
JBT1
2-5 Control Panel Connectors/IO Ports
The I/O ports are color coded in conformance with the PC 99 specification. See
Figure 2-3 below for the colors and locations of the various I/O ports.

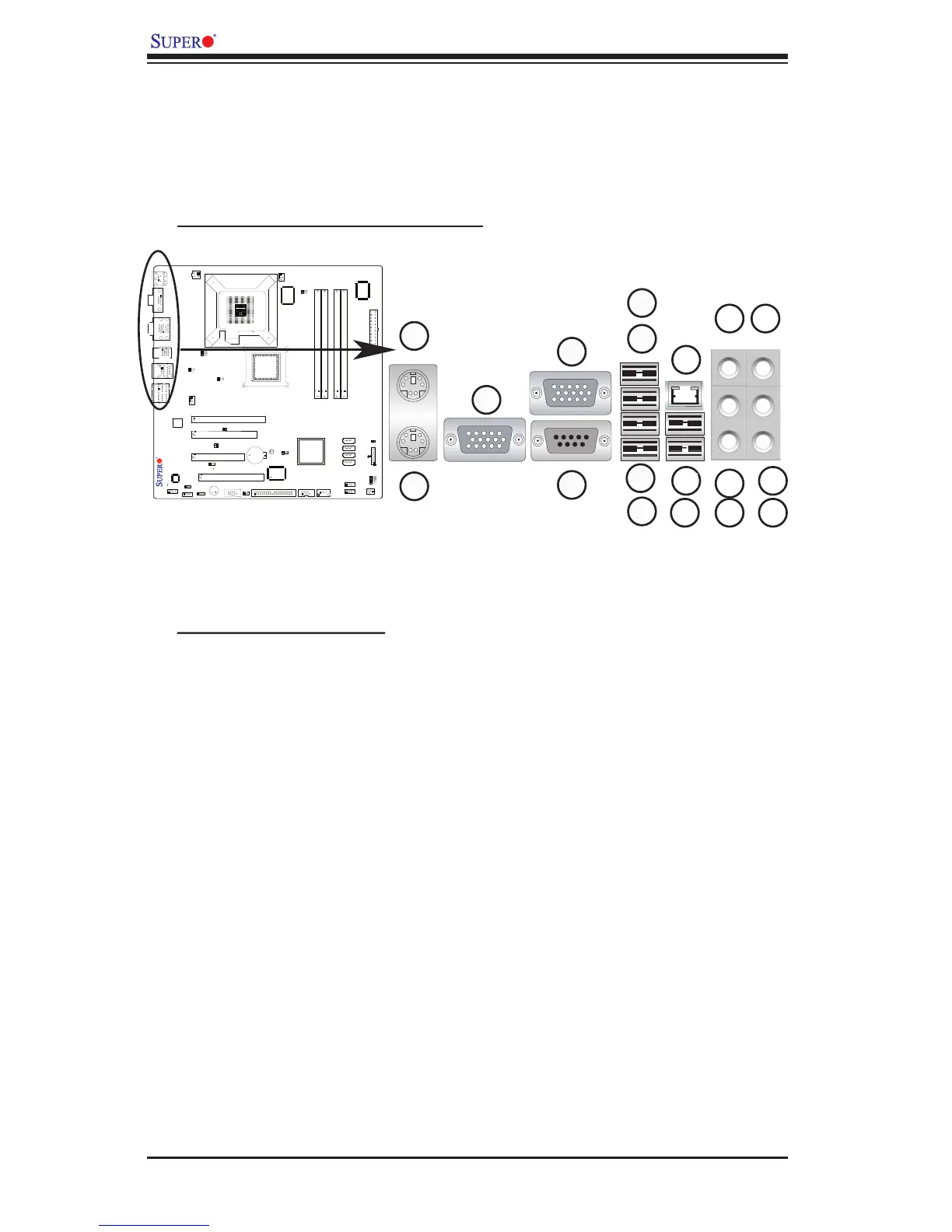

1. Back Panel Connectors/IO Ports
Back Panel I/O Port Locations and Definitions
Back Panel Connectors
1. Keyboard (Purple)
2. PS/2 Mouse (Green)
3. COM 1
4. VGA
5. COM 2
6. USB 2
7. USB 3
8. USB 4
9. USB 5
10. USB Port 0
11. USB Port 1
12. Gigabit LAN
13. Side Surround (Grey)
14. Back Surround (Black)
15. CEN/LFE (Orange)
16. Microphone-In (Pink)
17. Front (Green)
18. Line-In (Blue)
(See Section 2-5 for details.)
11
12
4
2
5
9
3
6
8
1
10
7
15
14
13 16
17
18
