2-26
C2SBM-Q User's Manual

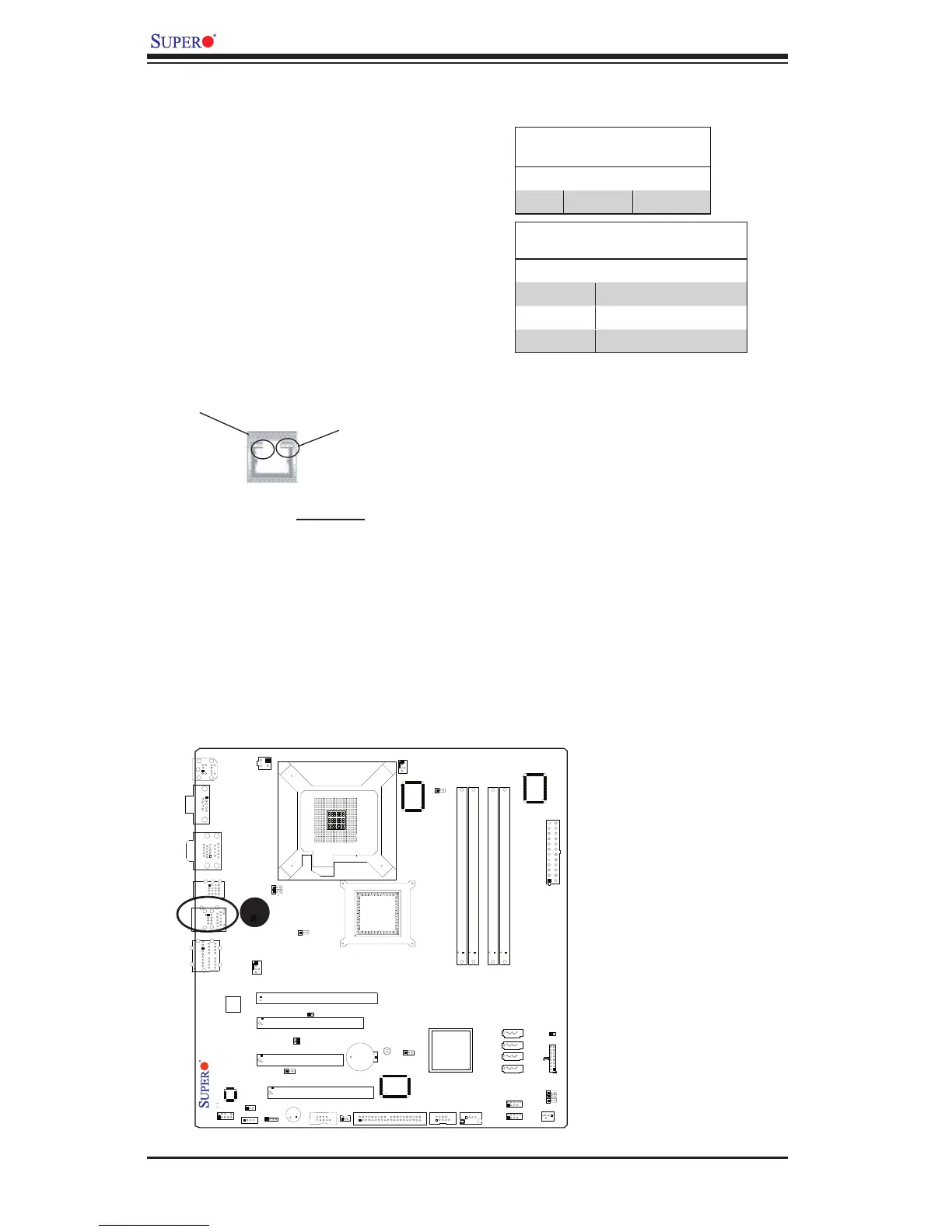

GLAN LEDs
There is one Gigabit-LAN port (J11).
This Gigabit Ethernet LAN port has two
LEDs. The yellow LED indicates activity,
while the Link LED may be green, amber
or off to indicate the speed of the con-
nection. See the tables at right for more
information.
2-8 Onboard Indicators
Activity LED
GLAN Activity Indicator
Color Status Definition
Yellow
Flashing Active
GLAN Link Indicator
LED Color Definition
Off No Connection or 10 Mbps
Green (On) 100 Mbps
Amber (On) 1 Gbps
A. GLAN Port1 LEDs
Link
LED
Rear View
(When viewing from the rear
side of the chassis.)
A
