Installing the Motherboard
Note: Always connect the power cord last, and always remove it before
adding, removing or changing any hardware components

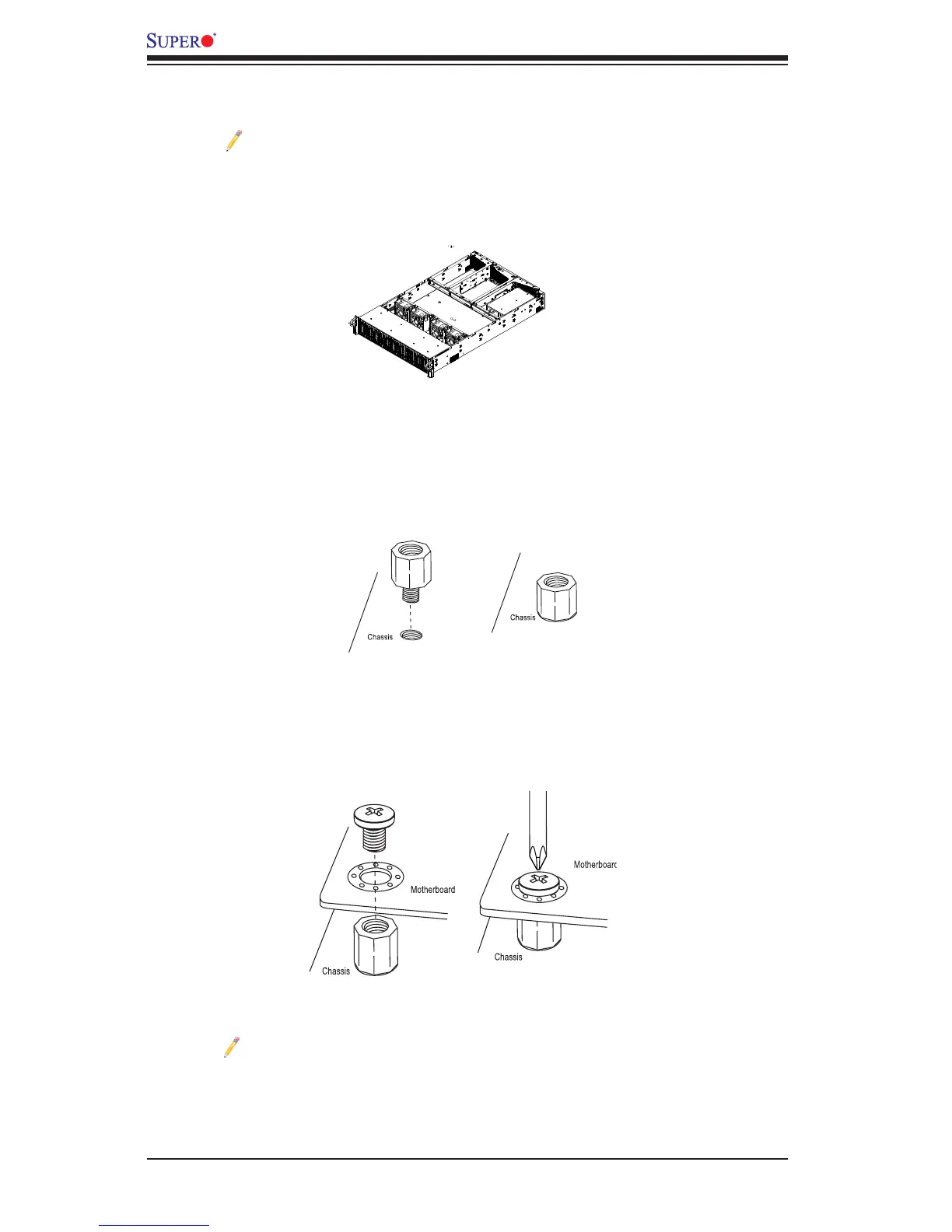

1. Locate the matching mounting holes on the chassis. Align the mounting holes
on the motherboard against the mounting holes on the chassis.
2. Install standoffs in the chassis as needed.
3. Install the motherboard into the chassis carefully to avoid damaging mother-
board components.
4. Using the Phillips screwdriver, insert a Pan head #6 screw into a mounting
hole on the motherboard and its matching mounting hole on the chassis.
5. Repeat Step 5 to insert #6 screws into all mounting holes.
6. Make sure that the motherboard is securely placed in the chassis.
Note: Images displayed are is for illustration only. Your chassis or compo-
nents might look different from those shown in this manual.
