Chapter 2: Installation
2-15
IPMI CODE
BIOS
LICENSE
BAR CODE
X10DRU-i+
Rev. 1.02A
2-6 Control Panel Connectors and I/O Ports

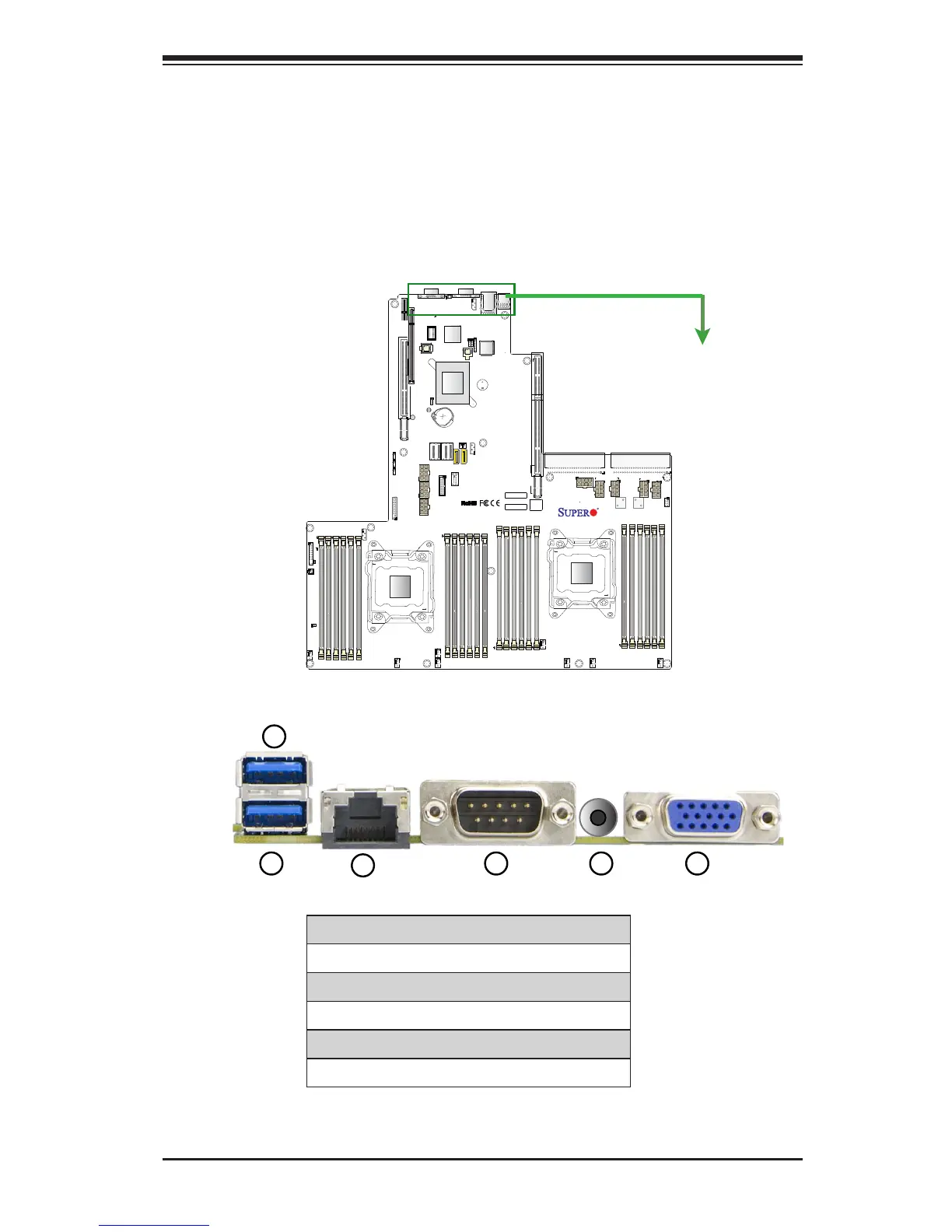

The I/O ports are color coded in conformance with the industry standards. See
the picture below for the colors and locations of the various I/O ports.
Back Panel Connectors and I/O Ports
1. Back Panel USB 3.0 Port 0
2. Back Panel USB 3.0 Port 1
3. IPMI_dedicated LAN
4. COM Port 1 (Turquoise)
5. UID Button/UID LED (LED1)
6. Back Panel VGA (Blue)
1
2
3
4
5
6
