2-16
X10DRU-i+ Motherboard User’s Manual

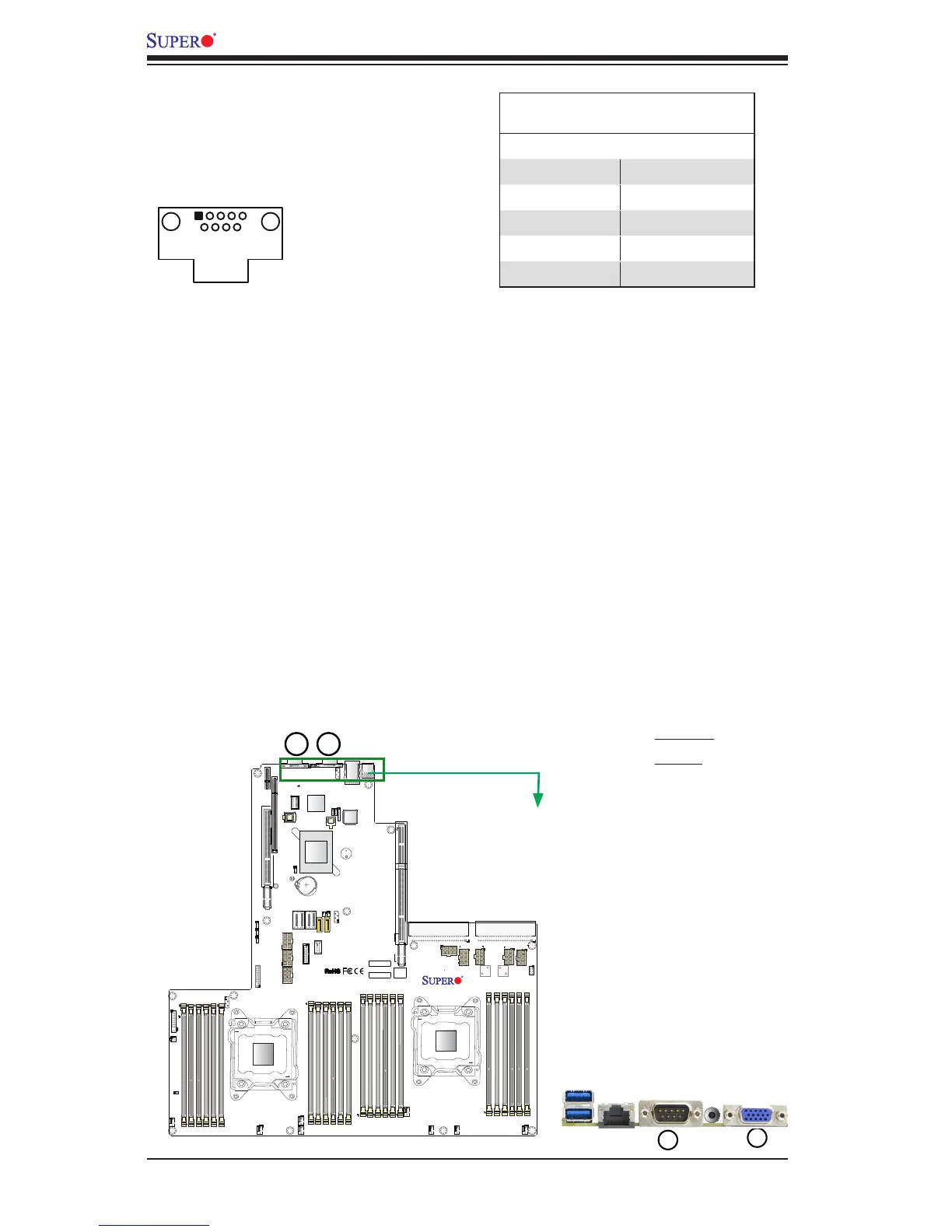

Video Connection
A Video (VGA) port is located next to
the UID button on the I/O back panel.
Refer to the board layout below for
the location.
1. COM1
2. VGA
Serial Port
A serial port (COM1) is located on the
IO back panel on the motherboard. See
the table on the right for pin denitions.
Serial Port (COM1)
Pin Denitions
Pin # Denition Pin # Denition
1 DCD 6 DSR
2 RXD 7 RTS
3 TXD 8 CTS
4 DTR 9 RI
5 Ground 10 N/A
COM1
COM2
IPMI CODE
BIOS
LICENSE
BAR CODE
X10DRU-i+
Rev. 1.02A
1
2
1
2
