SuperServer E403-9P-FN2T User's Manual

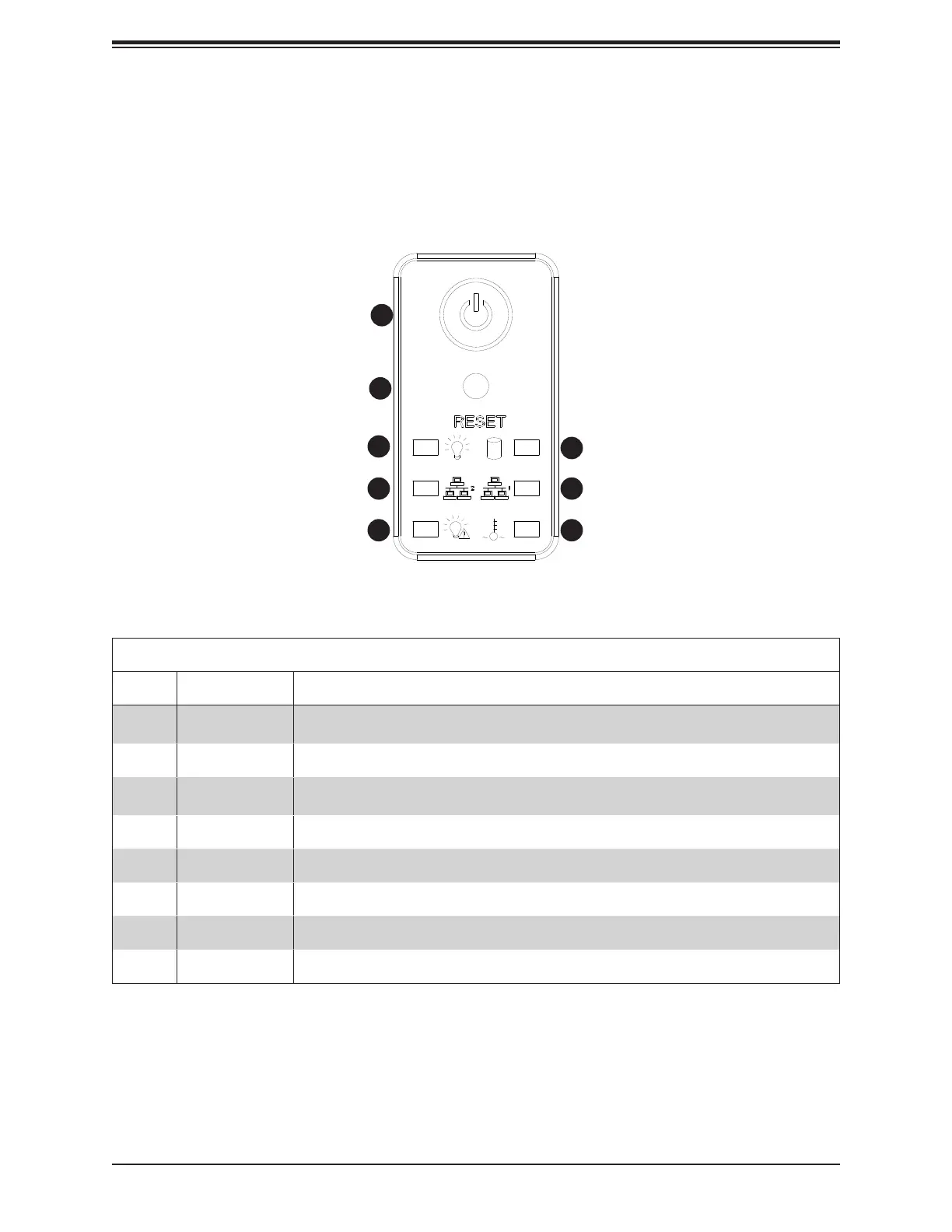

Figure 1-1. Control Panel
1.4 Chassis Features
Control Panel
Power switches and status LEDs are located on the control panel on the front of the chassis.
Control Panel Features
Item Features Description
1 Power button
The main power switch applies or removes primary power from the power supply to
the server but maintains standby power.
2 Reset button Reboots the system.
3 Power LED
Indicates power is being supplied to the system power supply units. This
LED is illuminated when the system is operating normally.
4 NIC LED
5 Power Fail LED Indicates a power supply module has failed.
6 HDD LED
7 NIC LED
8 Overheat LED Indicates an overheat condition
Caution: Since the system continues to draw a small amount of power in standby mode (and
situation, there is no warning from the overheat/fan fail LED.
