SuperServer E403-9P-FN2T User's Manual
3.3 Input/Output Ports

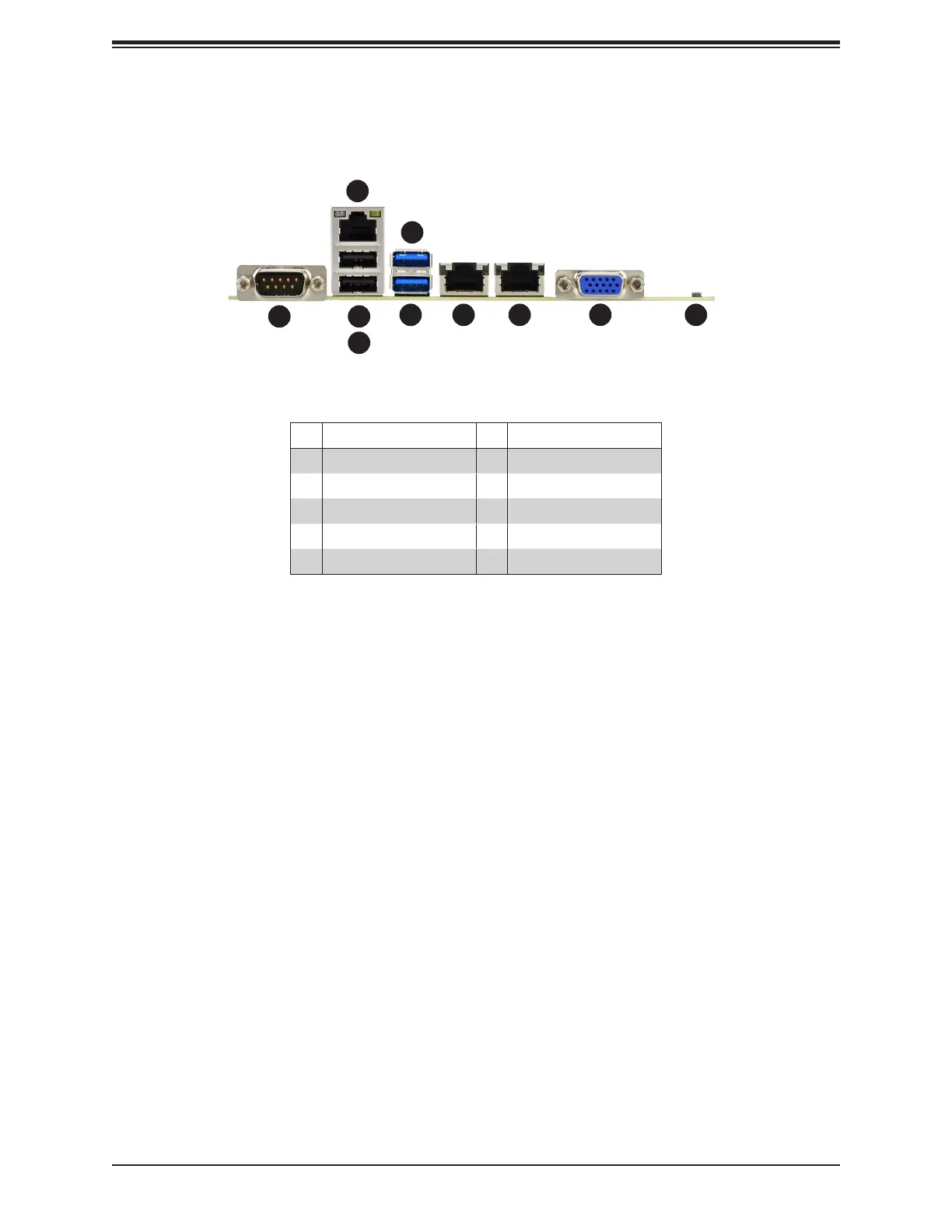

Figure 3-2. Rear I/O Ports
LAN Ports
Two 10 Gigabit Ethernet ports (LAN1, LAN2) are located on the I/O back panel. In addition,
a dedicated IPMI LAN is located above USB ports 0/1 on the back panel. All of these ports
accept RJ45 type cables. Refer to the LED Indicator section for LAN LED information.
Unit Identier Switch/UID LED Indicator

When you press the UID switch, both front and rear UID LED indicators are toggled on or
󰀨
Note: UID can also be triggered using IPMI.
# Description # Description
1 COM Port 1 6 USB7 (3.0)
2 Dedicated IPMI LAN 7 LAN1
3 USB1 (2.0) 8 LAN2
4 USB0 (2.0) 9 VGA Port
5 USB8 (3.0) 10 UID Switch
