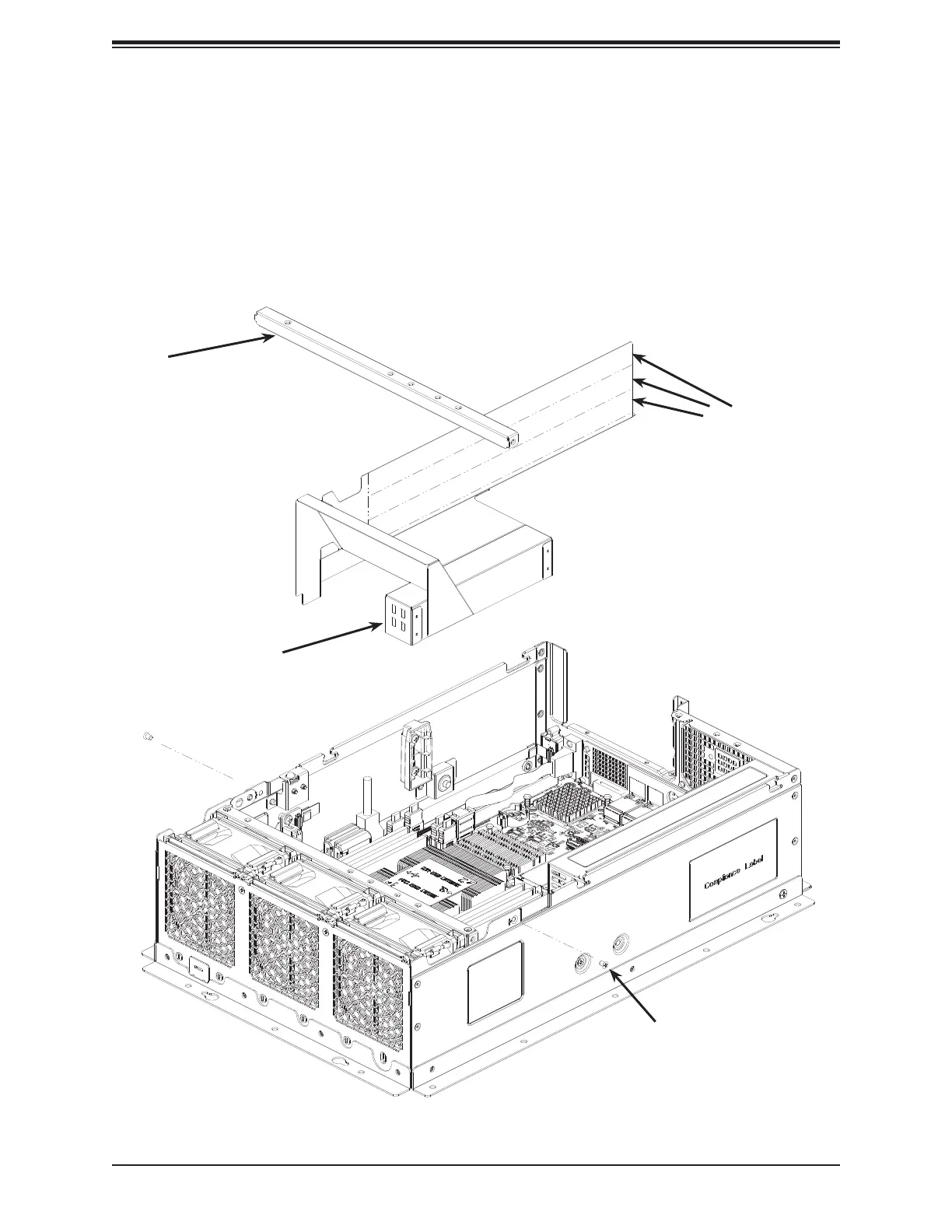

Figure 2-10. Installing the Memory Air Shroud
Installing the Air Shrouds
󰀩
Installing the Air Shrouds
1. If you are installing full height PCIe expansion cards, you must cut one, two, or three
sections of the shroud to create space for the cards.
2. Remove the chassis cross bracket by removing the screw from each side of the chassis.
Chassis Cross Bracket
Screw (one on each
side of the chassis)
Removable Sections
for Full-Height
Expansion Cards
This portion covers
the memory modules
