Supermicro X11DPG-QT User Manual

12
Super X11DPG-QT User's Manual

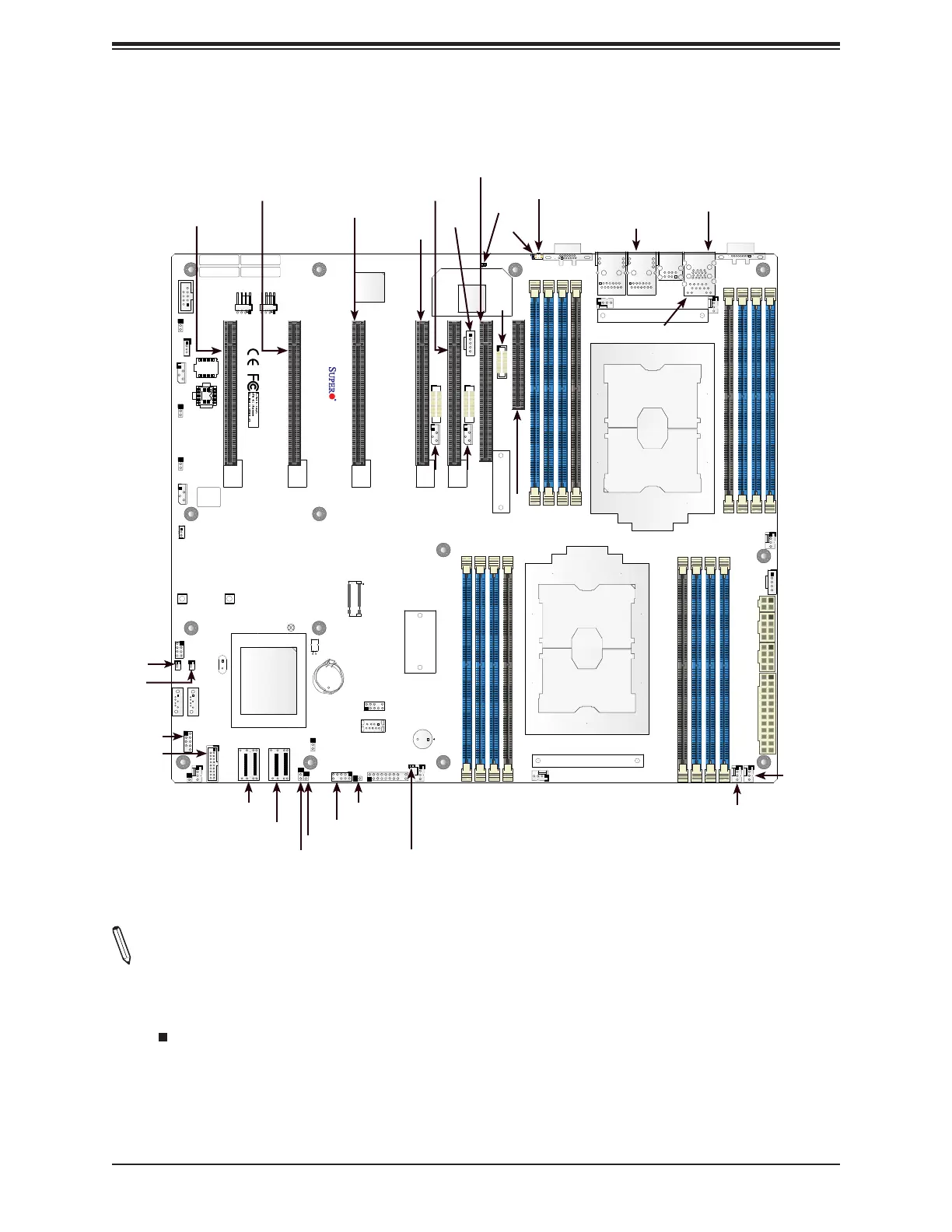

Quick Reference
Notes:
• See Chapter 2 for detailed information on jumpers, I/O ports, and JF1 front panel con-
nections.
• " " indicates the location of Pin 1.
• Components/jumpers/LED indicators not documented are reserved for internal testing only.
• Use only the correct type of onboard CMOS battery as specied by the manufacturer. Do
not install the onboard battery upside down to avoid possible explosion.
X11DPG-QT
DESIGNED IN USA
REV:1.10A
IPMI CODE
MAC CODE
SAN MAC
BAR CODE
BIOS
LICENSE
CPU1
CPU2
PCH
BMC
LAN
CTRL
FAN1
FAN2FANAFANB
JL1
JPI2C1
FAN6
COM1
SP1
BT1
USB 0/1
IPMI_LAN
JUIDB1
LEDM1
LED2
VGA
P1-DIMMA1 P1-DIMMA2 P1-DIMMC1 P1-DIMMB1
P1-DIMME1 P1-DIMMF1 P1-DIMMD2 P1-DIMMD1
FAN5
JPWR1
JPWR2
JPWR3
JPWR4
FAN3
FAN4
LAN2
LAN1
USB 4/5 (3.0)
P2-DIMMF1 P2-DIMME1 P2-DIMMD1 P2-DIMMD2
P2-DIMMB1 P2-DIMMC1 P2-DIMMA2 P2-DIMMA1
USB8 (3.0)
USB 2/3
USB 6/7
(3.0)
I-SATA0~3
I-SATA4~7
S-SATA5
S-SATA4
JF1
JPAC1
JSPDIF_IN1
AUDIO_FP
JHD_AC1
JPME2
JTPM1
LEDPWR
JBT1
S-SGPIO
JSD2
JSD1
M.2 CONNECTOR
JSTBY1
JSEN1
JWD1
JVRM_SEL1
JIPMB1
JRK1
JPTG1
COM2
JNCSI1
JNVI2C2
JTBT1
JNVI2C1
FANC
FAND
CPU1 SLOT2
CPU1 SLOT4
CPU1 SLOT9
CPU2 SLOT6
CPU2 SLOT8
CPU2 SLOT10
CPU2 SLOT11

Supermicro X11DPG-QT Specifications

General

PS/2 ports quantity	0
IPMI LAN (RJ-45) port	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Number of SATA III connectors	10
Number of DIMM slots	16
Maximum LRDIMM memory	2000 GB
Supported RDIMM module capacity	64GB
Memory voltage	1.2 V
Supported memory types	DDR4-SDRAM
Supported memory clock speeds	2133, 2400, 2666 MHz
BIOS type	AMI
ACPI version	4.0
BIOS memory size	64 Mbit
RAID levels	0, 1, 5, 10
Wi-Fi	No
LAN controller	Intel® X550
Ethernet interface type	10 Gigabit Ethernet
On-board graphics card model	Aspeed AST2500
Bundled software	Intel Node Manager, IPMI2.0, KVM LAN, NMI, SPM, SSM, SUM, SuperDoctor 5, Watchdog
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	8 - 90 %
Supported QPI	10.4 GT/s
Processor socket	LGA 3647 (Socket P)
Processor manufacturer	Intel
Processor number of cores supported	28
Component for	Server
Motherboard chipset	Intel® C621
Audio output channels	7.1 channels
PCI Express x16 (Gen 3.x) slots	6

Weight and Dimensions

Depth	335.3 mm
Width	384 mm
