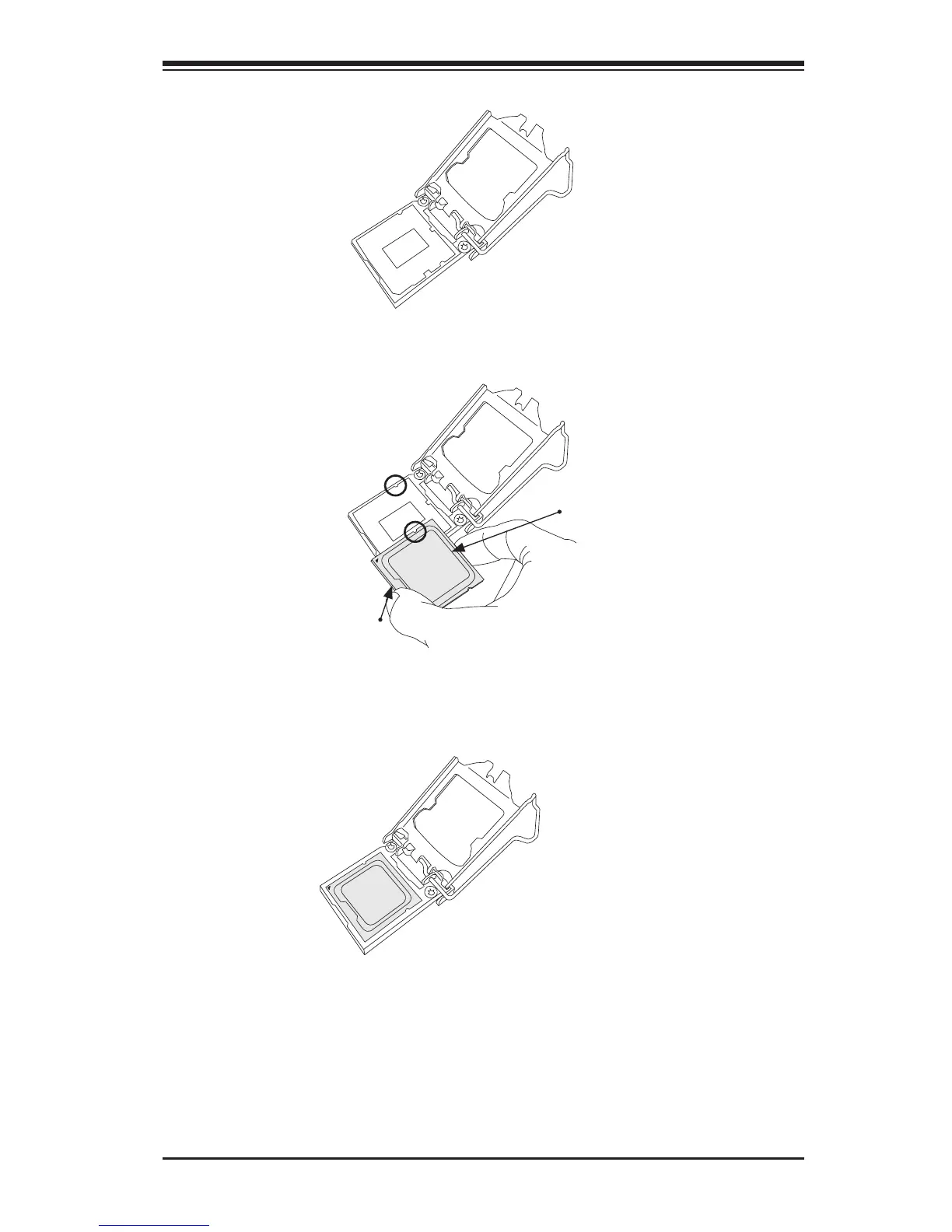

Gently lift the load lever to open the load plate. Remove the plastic cap.2.
Use your thumb and your index fi nger to hold the CPU at the North center 3.
edge and the South center edge of the CPU.
Align the CPU key that is the semi-circle cutouts against the socket keys. 4.
Once it is aligned, carefully lower the CPU straight down into the socket. (Do
not drop the CPU on the socket. Do not move the CPU horizontally or verti-
cally.
South Center Edge
North Center Edge
