Supero C7P67 User Manual

2-32
C7P67 User's Manual
JTPM1
M-SATA1
M-SATA0
I-SATA1 I-SATA0
LED1
JWOL
JF1
JPW1
JBT1
I-SATA5 I-SATA2
I-SATA4
I-SATA3
B1
SP1
JD1
JWF1
J15
1
JPME1
JHD_AC1
JSPDIF_IN
JSPDIF_OUT
JI2C1
JI2C2
JWOR
JL1
CATERR_LED1
JPW2
FANA
FAN4
FAN2
FAN1
FAN3
JPL1
JPAC1
JPI1
JPL2
JLED
1
JCPUVRD_SMB
SATA 3.0
USB3.0 0/1
IDE
1394_1
1394_2
Slot1 PCI 33MHZ
Slot2 PCI 33MHZ
Slot3 PCI-E 2.0 X1
Slot4 PCI-E 2.0 X8 (INX16)
Slot5 PCI-E 2.0 X1
Slot6 PCI-E 2.0 X16
Slot7 PCI-E 2.0 X1
USB11/12
USB13/10
USB8/9
AUDIO FP
USB2/3
USB4/5
Buzzer
COM2
COM1
HD AUDIO
LAN2
USB 2.0 0/1
Always Populate Blue Sockets First
Unbuf. Non-ECC DDR3 DIMM Required
LAN1
CPU
JITP1
DIMM2A
DIMM2B
DIMM1B
DIMM1A
KB/Mouse
Rev. 1.01
C7P67
J18
LAN CTRL
LAN CTRL
Audio CTRL
Battery
BIOS
USB 3.0 CTRL
Intel
P67 PCH
LGA1155
Marvel
SATA 3 CTRL
S I/O
1394 CTRL
PCI CTRL
FP CTRL

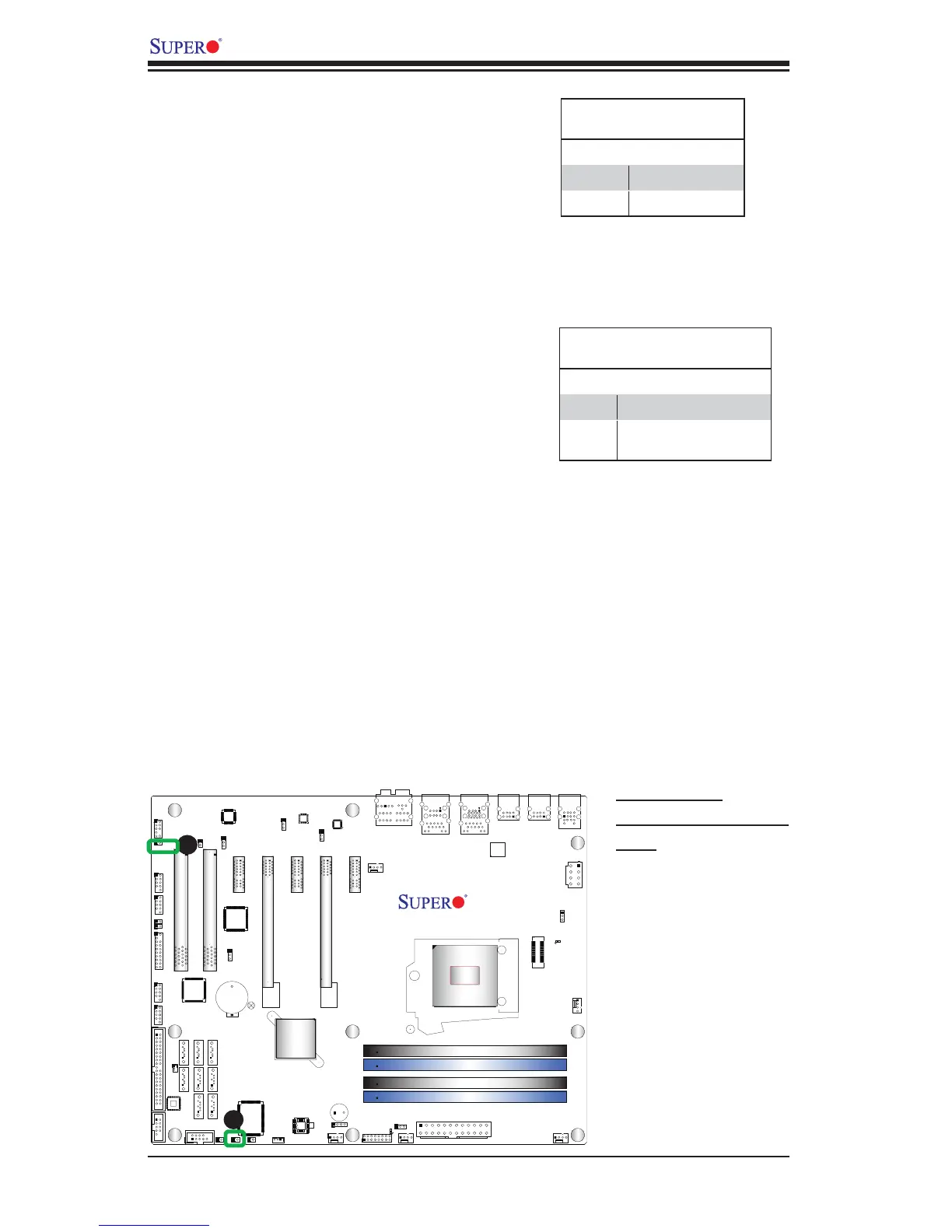

A
A. ME Recovery
B. HD Audio/AC'97 Audio
Select
B
ME Recovery Enable
Close JPME1 to enable ME (Manufacture
Mode) Recovery. See the table on the right
for jumper settings.
ME Recovery
Jumper Settings
Settings Defi nition
On Enabled
Off Normal (Default)
HD FP Audio/AC' 97 FP Audio Select
Jumper JHD_AC1 allows the user to select
between High-Defi nition Front Panel Audio
and AC' 97 Front Panel Audio support. See
the table on the right for jumper settings.
HD Audio/AC' 97 Audio Select
Jumper Settings
Settings Defi nition
On AC'97 Audio Front Panel
Off HD Audio Front Panel
(Default)
