Supero C7P67 User Manual

Chapter 2: Installation
2-17
A.SPDIF_Out
B. Surround_Out
C. CEN/LFE_Out
D. Mic_In
E. Line-Out
F. Line_In
G. Audio Header
E
A
B
C
F
D
G
Rev. 1.01
C7P67

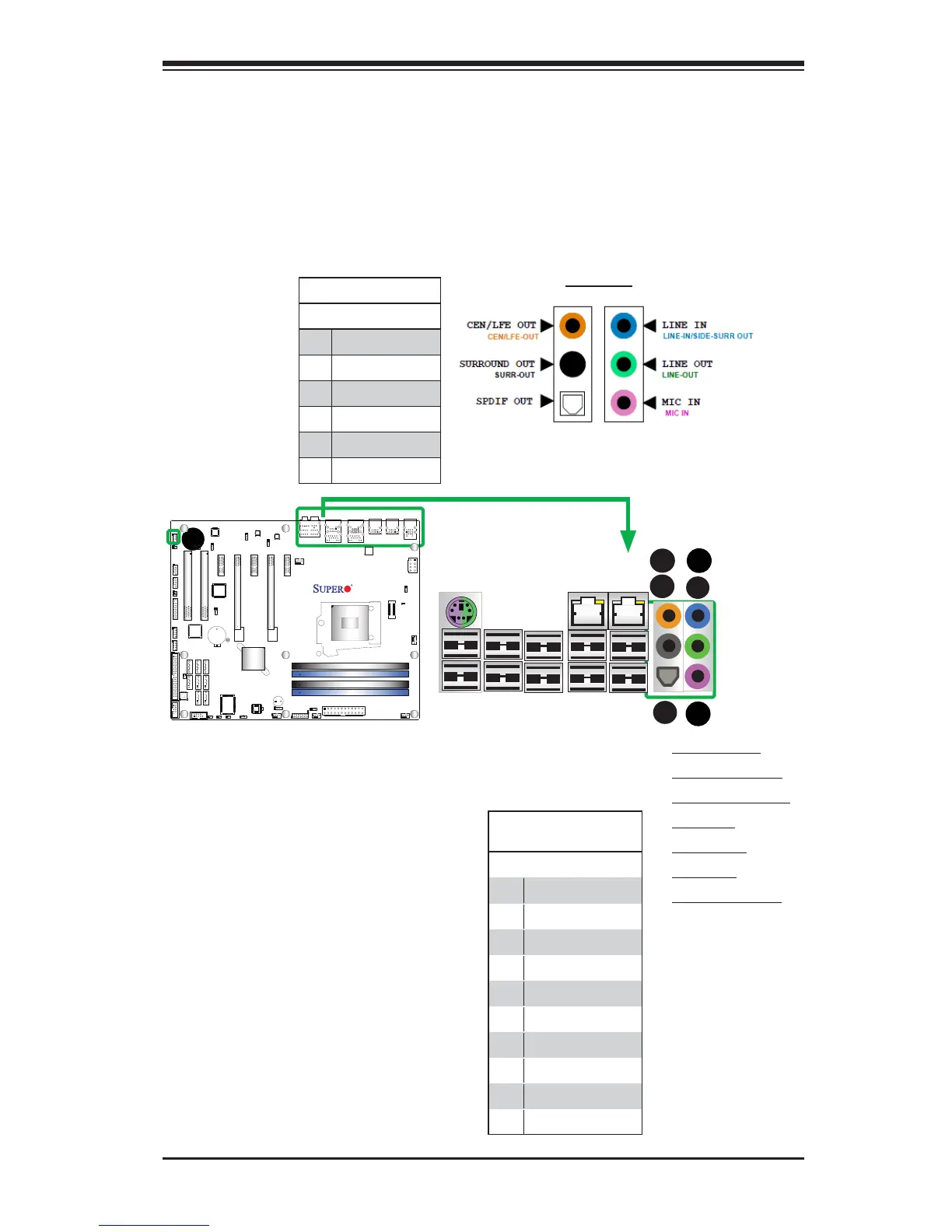

(Back_Panel) High Defi nition Audio (HD Audio)
This motherboard features a 7.1+2 Channel High Defi nition Audio (HDA) codec that
provides 10 DAC channels. The HD Audio connections simultaneously supports
multiple-streaming 7.1 sound playback with 2 channels of independent stereo output
through the front panel stereo out for front, rear, center and subwoofer speakers.
Use the Advanced software included in the CD-ROM with your motherboard to
enable this function.
(BP) HD Audio
Conn# Signal
A
SPDIF_Out
B
Surround_Out
C
CEN/LFE_Out
D
Mic_In
E
Line_Out
F
Line_In
HD Audio
Front Accessible Audio Header
A 10-pin Audio header is also
located on the motherboard. This
header allows you to use the on-
board sound for audio playback.
Connect an audio cable to the au-
dio header to use this feature. See
the tables at right for pin defi nitions
for these headers.
10-in Audio
Pin Defi nitions
Pin# Signal
1 Microphone_Left
2 Audio_Ground
3 Microphone_Right
4 Audio_Detect
5 Line_2_Right
6 Ground
7 Jack_Detect
8 Key
9 Line_2_Left
10 Ground
