Supero C7P67 User Manual

Chapter 2: Installation
2-13
JTPM1
M-SATA1
M-SATA0
I-SATA1 I-SATA0
LED1
JWOL
JF1
JPW1
JBT1
I-SATA5 I-SATA2
I-SATA4
I-SATA3
B1
SP1
JD1
JWF1
J15
1
JPME1
JHD_AC1
JSPDIF_IN
JSPDIF_OUT
JI2C1
JI2C2
JWOR
JL1
CATERR_LED1
JPW2
FANA
FAN4
FAN2
FAN1
FAN3
JPL1
JPAC1
JPI1
JPL2
JLED
1
JCPUVRD_SMB
SATA 3.0
USB3.0 0/1
IDE
1394_1
1394_2
Slot1 PCI 33MHZ
Slot2 PCI 33MHZ
Slot3 PCI-E 2.0 X1
Slot4 PCI-E 2.0 X8 (INX16)
Slot5 PCI-E 2.0 X1
Slot6 PCI-E 2.0 X16
Slot7 PCI-E 2.0 X1
USB11/12
USB13/10
USB8/9
AUDIO FP
USB2/3
USB4/5
Buzzer
COM2
COM1
HD AUDIO
LAN2
USB 2.0 0/1
Always Populate Blue Sockets First
Unbuf. Non-ECC DDR3 DIMM Required
LAN1
CPU
JITP1
DIMM2A
DIMM2B
DIMM1B
DIMM1A
KB/Mouse
Rev. 1.01
C7P67
J18
LAN CTRL
LAN CTRL
Audio CTRL
Battery
BIOS
USB 3.0 CTRL
Intel
P67 PCH
LGA1155
Marvel
SATA 3 CTRL
S I/O
1394 CTRL
PCI CTRL
FP CTRL

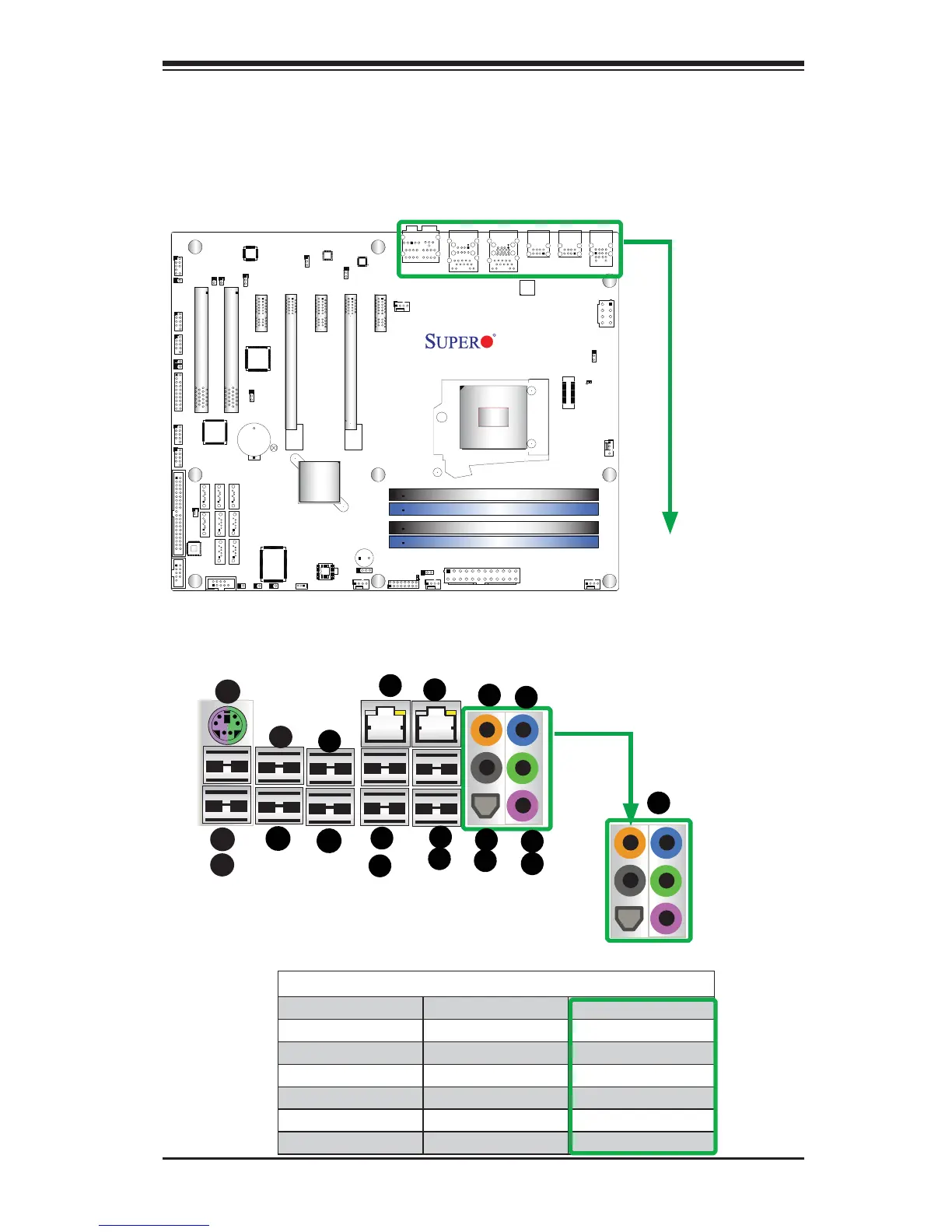

2-5 Connectors/IO Ports
The I/O ports are color coded in conformance with the PC 99 specifi cation. See the
fi gure below for the colors and locations of the various I/O ports.
Backplane I/O Panel
A. USB 2.0 Port 8 H. USB 3.0 Port 0 T. Backplane HD Audio
B. USB 2.0 Port 9 I. USB 3.0 Port 1 N. SPDIF_Out
C. Keyboard/Mouse J. GLAN 1 O Surround_Out
D. USB 2.0 Port 13 K. USB 2.0 Port 0 P. CEN/LFE_Out
E. USB 2.0 Port 10 L. USB 2.0 Port 1 Q. Mic_In
F. USB 2.0 Port 11 M. GLAN 2 R. Line_Out
G. USB 2.0 Port 12 S. Line_In
E
A
B
C
F
D
G
H
I
J
K
L
M
Backplane I/O Panel
N
O
P
Q
R
S
T
HD Audio
