2-16
C7P67 User's Manual

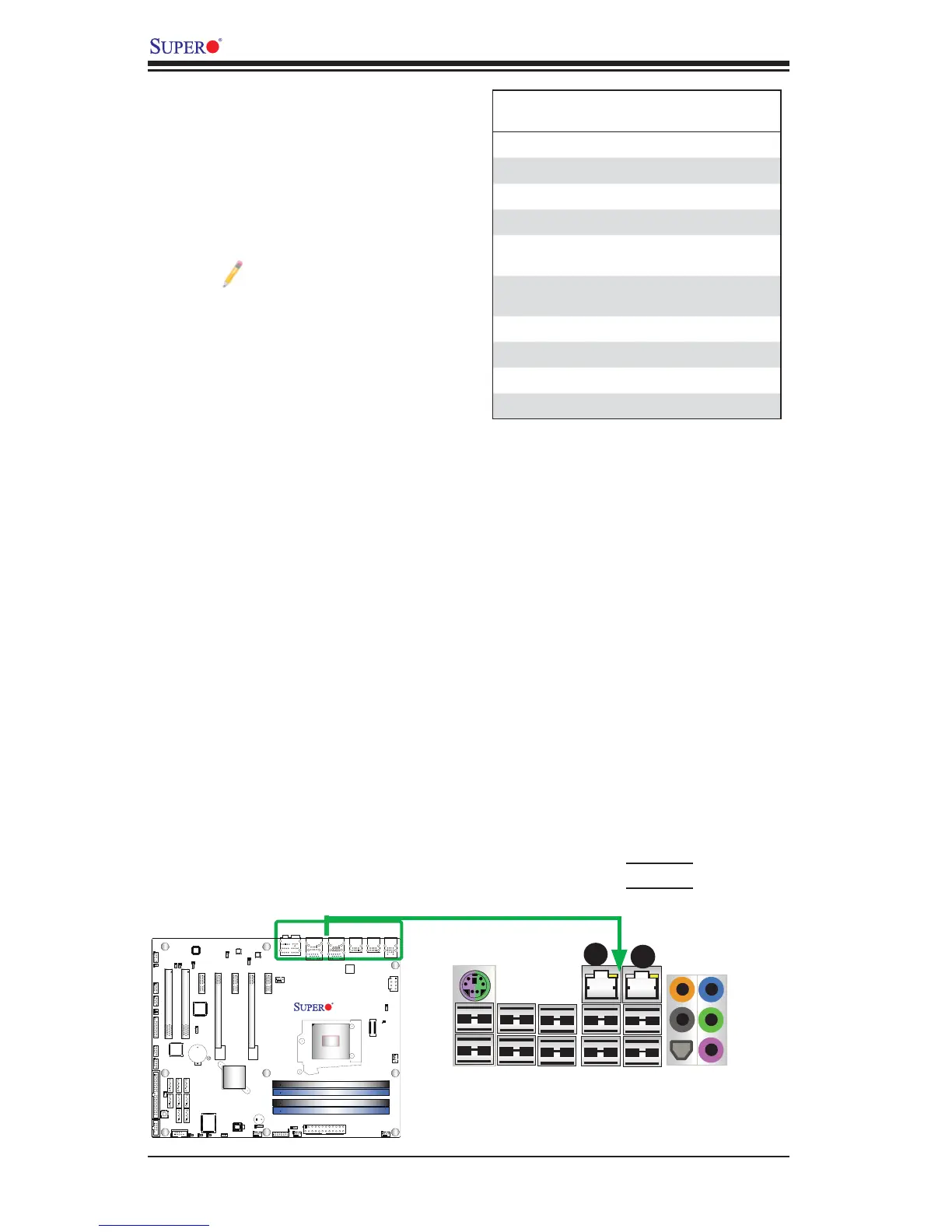

Ethernet Ports
Two Gigabit Ethernet ports (LAN1/
LAN2) are located next to the HD Au-
dio Connector on the I/O Backpanel to
provide network connections. These
ports accept RJ45 type cables.
Note
Please refer to the LED In-
dicator Section for LAN LED
information.
LAN Ports
Pin Defi nition
Pin# Defi nition
1 P2V5SB 10 SGND
2 TD0+ 11 Act LED
3 TD0- 12 P3V3SB
4 TD1+ 13 Link 100 LED
(Yellow, +3V3SB)
5 TD1- 14 Link 1000 LED
(Yellow, +3V3SB)
6 TD2+ 15 Ground
7 TD2- 16 Ground
8 TD3+ 17 Ground
9 TD3- 88 Ground
(NC: No Connection)
A. GLAN1
B. GLAN2
A
B
Rev. 1.01
C7P67
