2-9 SATA Connections
Note the following conditions when connecting the Serial ATA disk drive cables:
• Be sure to use the correct cable for each connector. Refer to Page 1-1 for cables
that came with your shipment.
• A red mark on a wire indicates the location of pin 1.

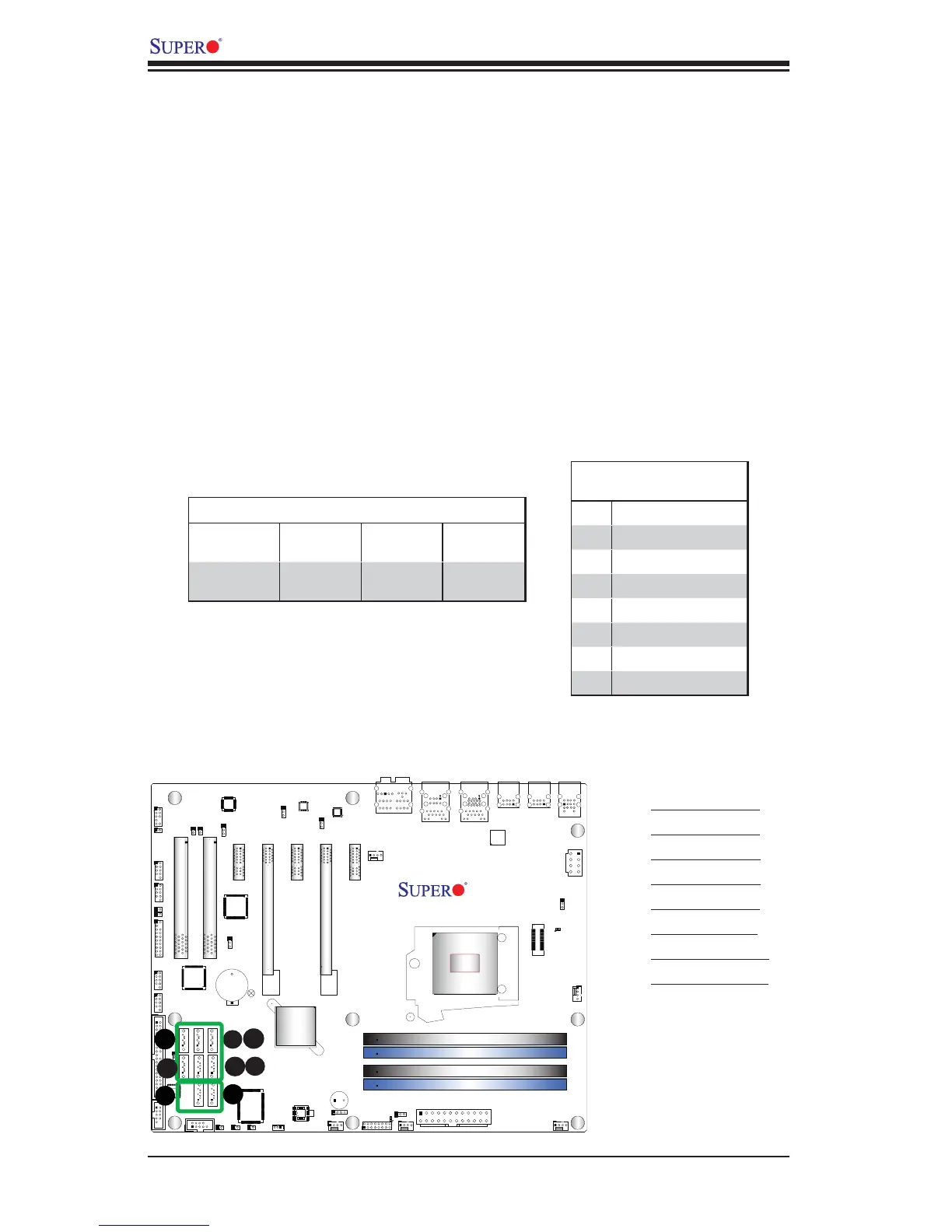

SATA Connections
Four Serial ATA (SATA) 3.0 connectors (I-SATA 0/1, M-SATA 0/1) are located on the
motherboard. In addition, four SATA 2.0 (I-SATA 2~5) connectors are also located
on the board. The SATA 2.0 ports are supported by the Intel P67 PCH chip; while
SATA 3.0 ports are supported by Intel PCH and Marvel SATA Controllers. These
Serial Link connections provide faster data transmission than legacy Parallel ATA.
See the table on the right for pin defi nitions.
SATA 2.0/3.0 Connectors
Pin Defi nitions
Pin# Signal
1 Ground
2 SATA_TXP
3 SATA_TXN
4 Ground
5 SATA_RXN
6 SATA_RXP
7 Ground
B
A. I-SATA 3.0 #0
B. I-SATA 3.0 #1
C. I-SATA 2.0 #2
D. I-SATA 2.0 #3
E. I-SATA 2.0 #4
F. I-SATA 2.0 #5
G. M-SATA 3.0 #0
H. M-SATA 3.0 #1
E
D
C7P67 SATA Connector Types
Port# Connection
Type
Port# Connection
Type
I-SATA 0/1,
M-SATA 0/1
SATA 3.0 I-SATA 2~5 SATA 2.0
C
H
