2-12
C7P67 User's Manual

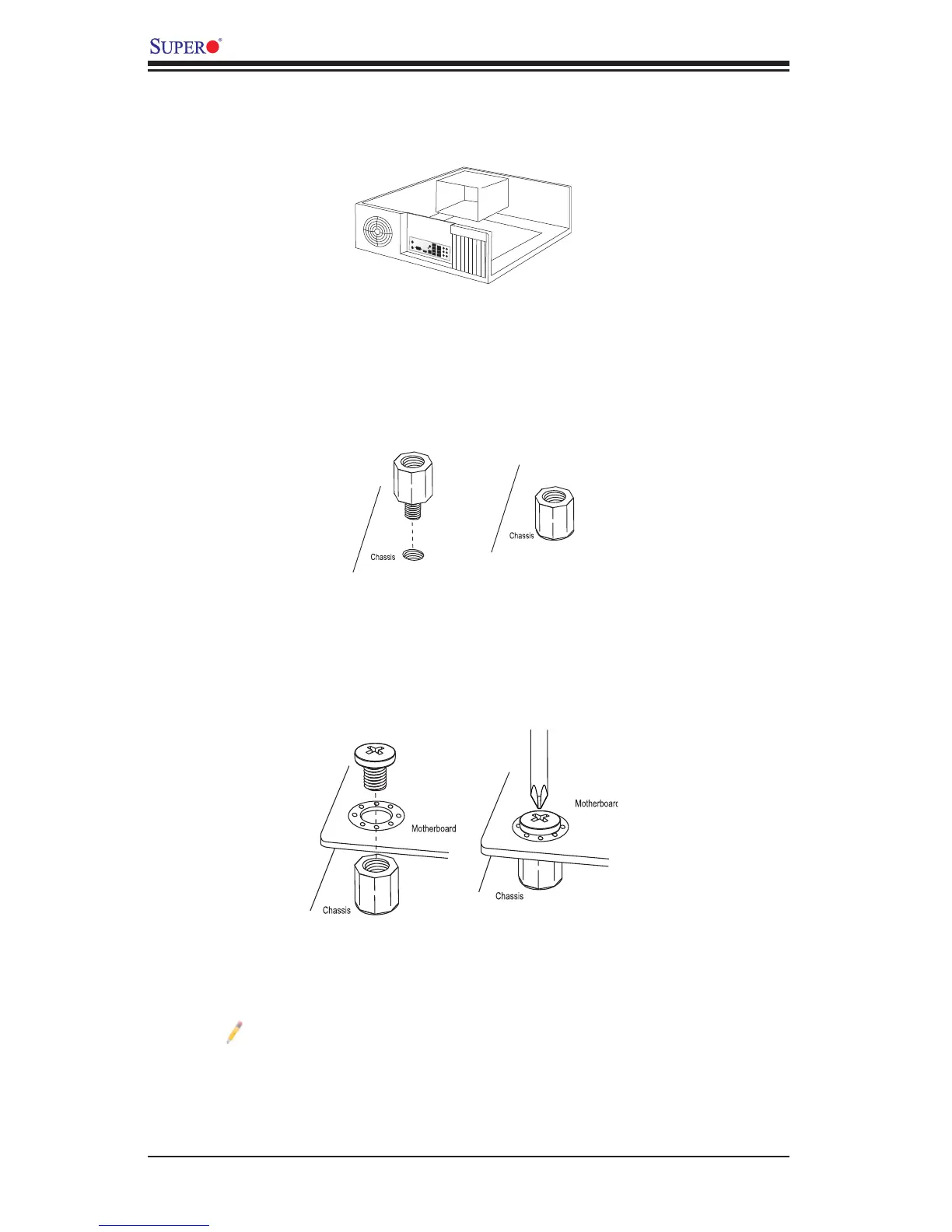

Installing the Motherboard
Install the I/O shield into the chassis. 1.
Locate the mounting holes on the motherboard. (See the previous page.)2.
Locate the matching mounting holes on the chassis. Align the mounting holes 3.
on the motherboard against the mounting holes on the chassis.
Install standoffs in the chassis as needed.4.
Install the motherboard into the chassis carefully to avoid damaging mother-5.
board components.
Using the Philips screwdriver, insert a Pan head #6 screw into a mounting 6.
hole on the motherboard and its matching mounting hole on the chassis.
Repeat Step 5 to insert #6 screws into all mounting holes.7.
Make sure that the motherboard is securely placed in the chassis.8.
Note: Images displayed are is for illustration only. Your chassis or compo-
nents might look different from those shown in this manual.
