C7P67 User's Manual

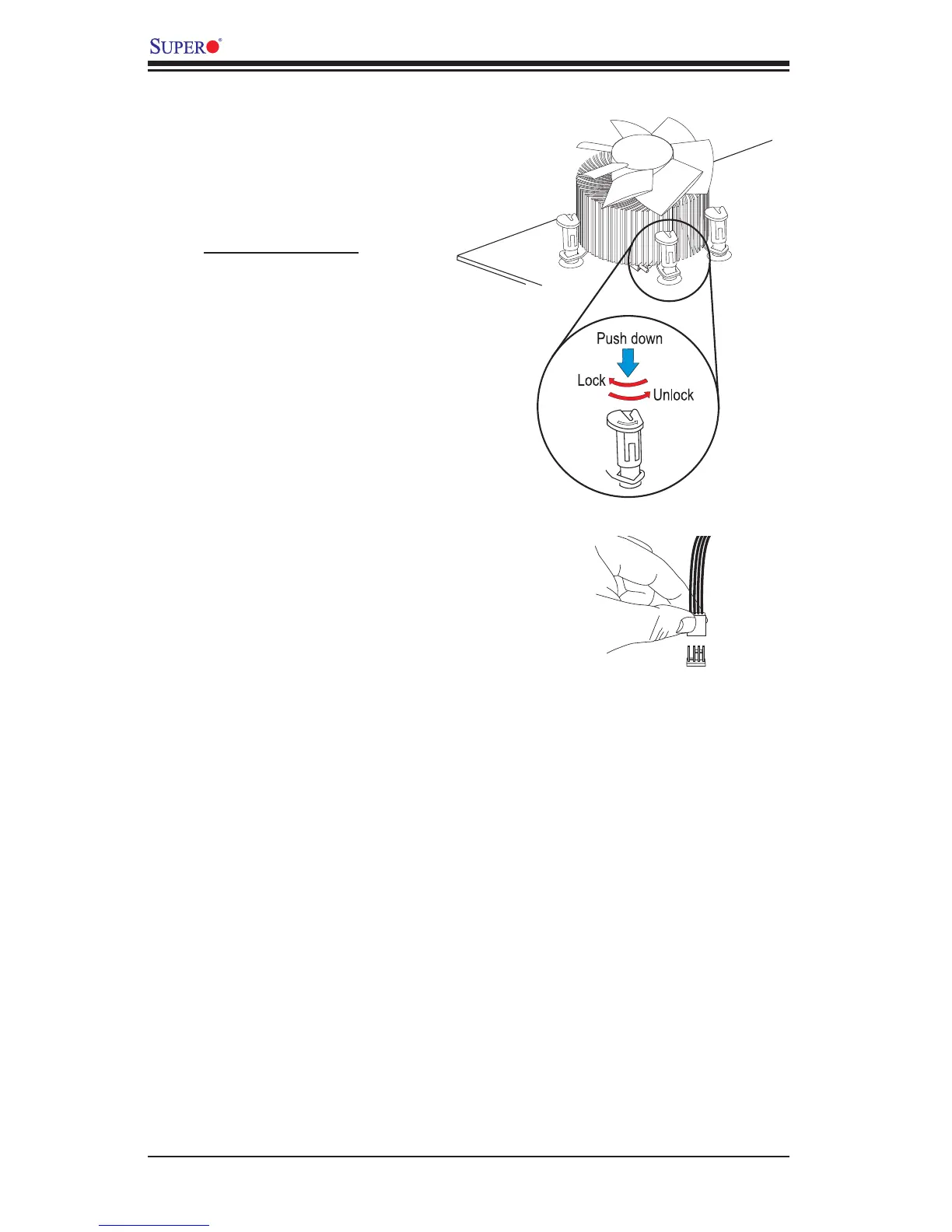

Align the four heatsink fasten-7.
ers with the mounting holes
on the motherboard. Gently
push the pairs of diagonal
fasteners (#1 & #2, and #3 &
#4) into the mounting holes
until you hear a click. Also,
make sure to orient each
fastener so that the narrow
end of the groove is pointing
outward.
Repeat Step 7 to insert all 8.
four heatsink fasteners into
the mounting holes.
Once all four fasteners are 9.
securely inserted into the
mounting holes, and the heat-
sink is properly installed on
the motherboard, connect the
heatsink fan wires to the CPU
Fan connector.
