Supermicro C7X99-OCE/C7X99-OCE-F Motherboard User’s Manual
Power Button
The Power Button connection is located
on pins1 and 2 of JF1. Momentarily
contacting both pins will power on/off
the system. This button can also be con-
gured to function as a suspend button
(with a setting in the BIOS - see Chapter
4). To turn off the power in the suspend
mode, press the button for at least 4
seconds. Refer to the table on the right
for pin denitions.
Power Button
Pin Denitions (JF1)
Pin# Denition
1 Signal
2 +3V Standby
Reset Button
The Reset Button connection is located
on pins 3 and 4 of JF1. Attach it to a
hardware reset switch on the computer
case to reset the system. Refer to the
table on the right for pin denitions.
Reset Button
Pin Denitions (JF1)
Pin# Denition
3 Reset
4 Ground

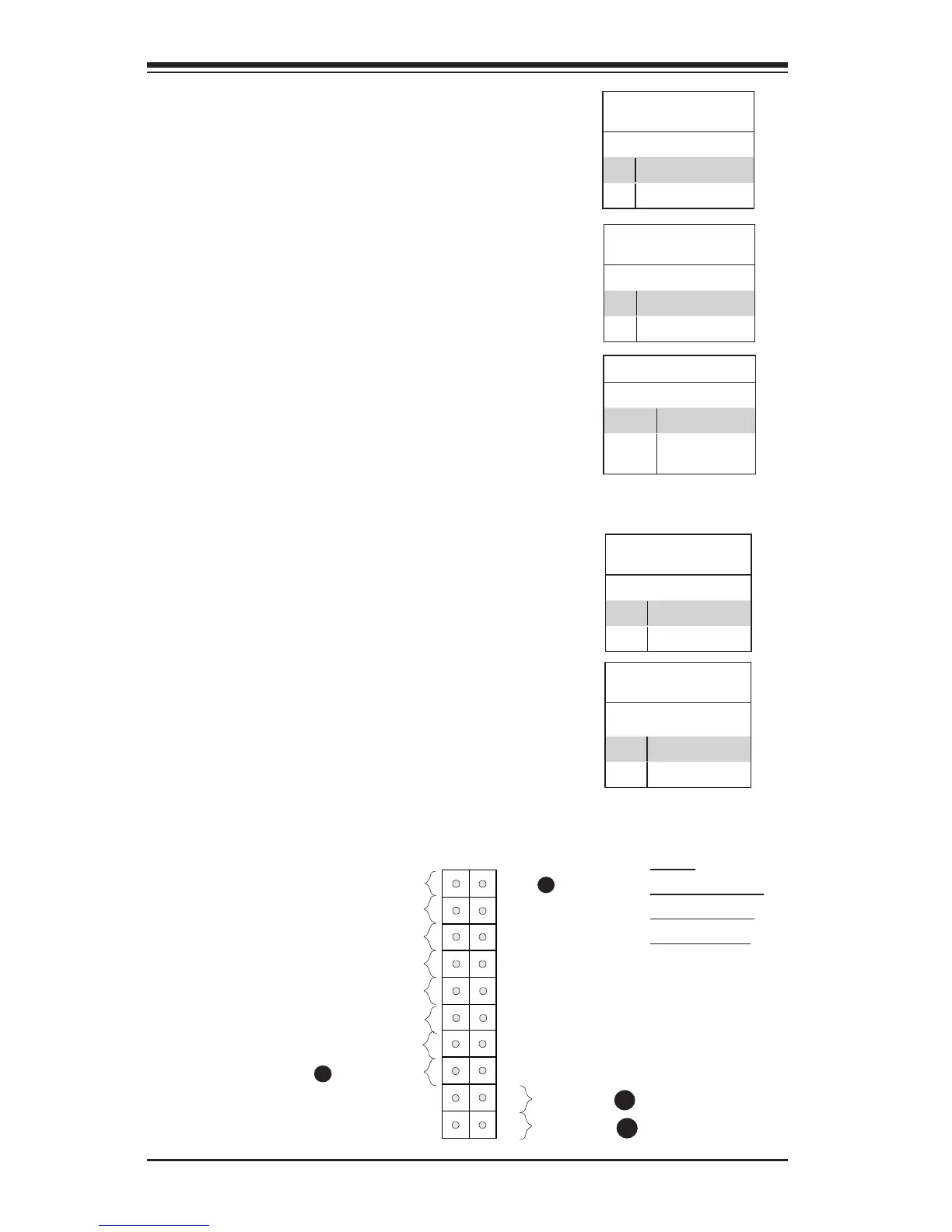

A. NMI
B. PWR Fail LED
C. Reset Button
D. PWR Button
Power Button
OH/Fan Fail LED
1
NIC1 LED
Reset Button
2
Power Fail LED
HDD LED
Power LED
#3~4
#1~2
Vcc
Vcc/UID Switch
Vcc
Vcc/Blue UID LED
Ground
Ground
1920
Vcc
X
Ground
NMI
X
Vcc
NIC2 LED
A
B
C
D
NMI Button
The non-maskable interrupt button-
header is located on pins 19 and 20 of
JF1. Refer to the table on the rightfor
pin denitions.
Power Fail
Connect an LED cable to the Power Fail
connection to provide a warning that a
power failure has occured. Refer to the
table on the right for pin denitions.
Power Fail LED
Pin Denitions (JF1)
Pin# Denition
5 Vcc
6 Power Fail LED
Power Fail LED Status
State Denition
Off Normal
Flash-
ing
Power Fail
NMI
Pin Denitions (JF1)
Pin# Denition
19 NMI
20 Ground
