Chapter 4: AMI BIOS
4-25
4-6
Chipset
Set all options for the Chipset in
this section.

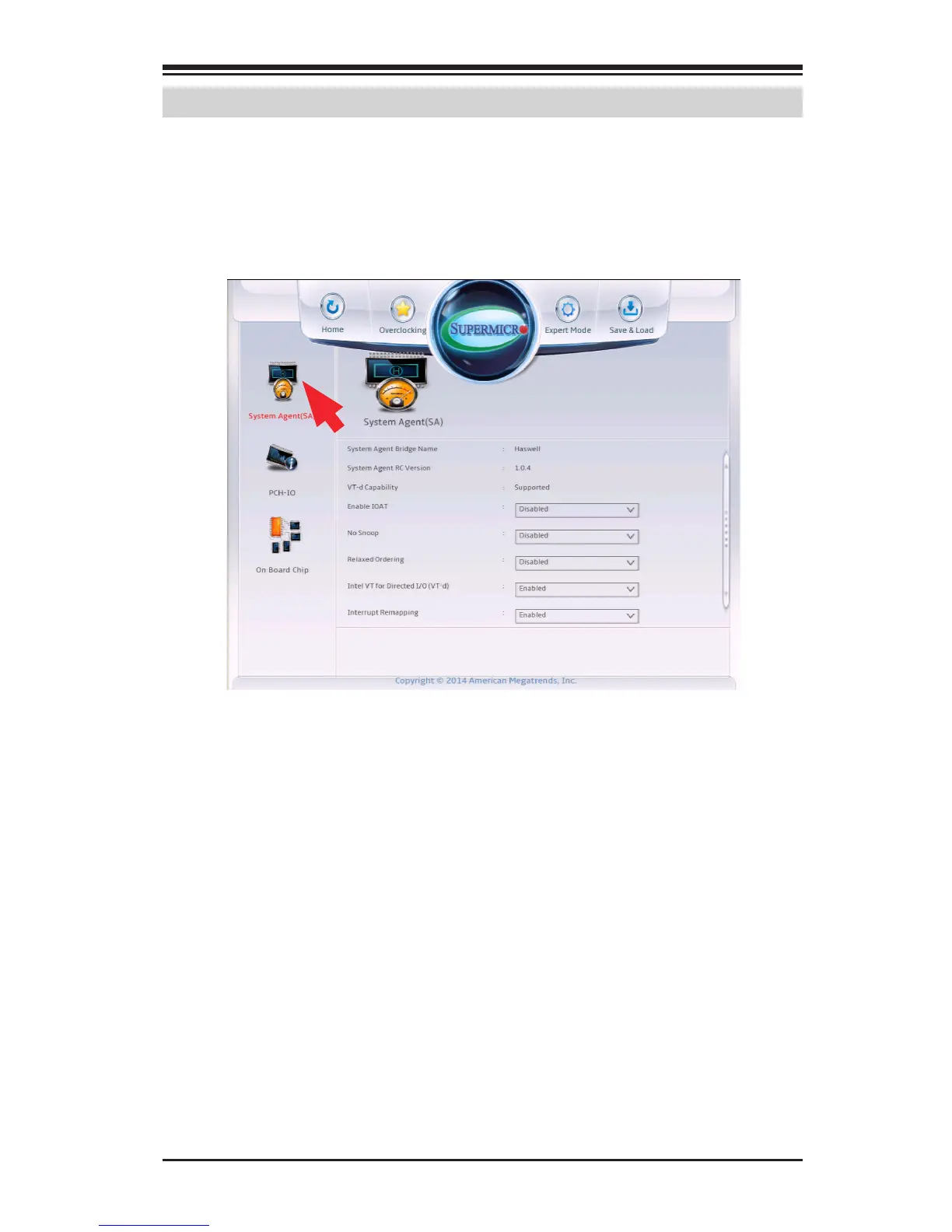

System Agent
The following will be display
ed:
•
System
Agent Bridge Name
- this displays the System
Agent bridge name.
•
System
Agent RC V
ersion
- indicates the System
Agent RC version.
•
VT
-d Capability
- this item indicates whether VT
-d is supported.
