Chapter 2: Installation
2-7

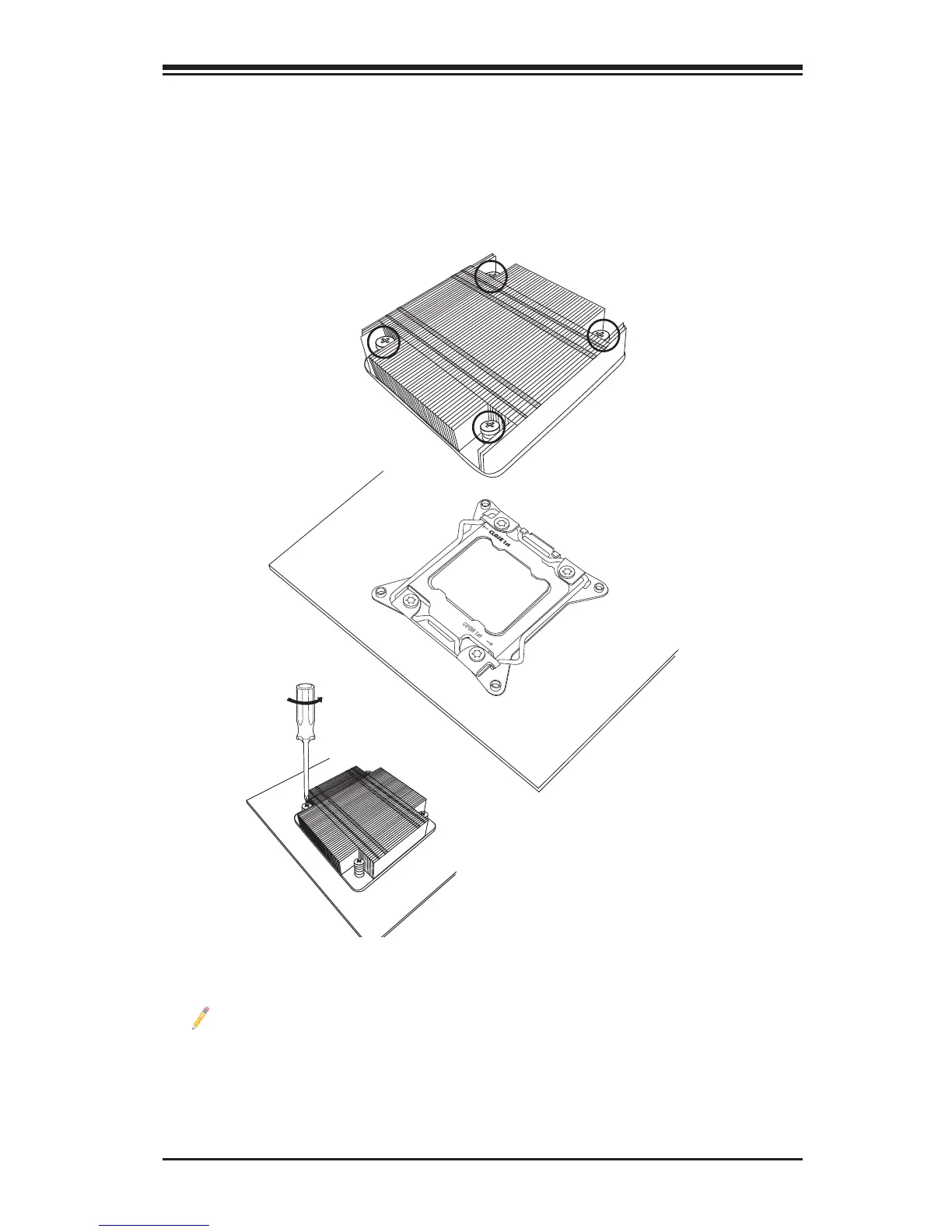

Installing a CPU Heatsink
1.
Apply the proper amount of th
ermal grease to the heatsink.
2.
Place the heatsink on top of
the CPU so that the two mount
-
ing holes on the heatsink are
aligned with those on the retention
mechanism.
Note:
Graphic
drawings
included
in
this
manual
are
for
reference
only
. They might look different from the components installe
d in
your system.
Screw#1
Screw#2
Screw#3
Screw#4
OPEN 1st
36
38
